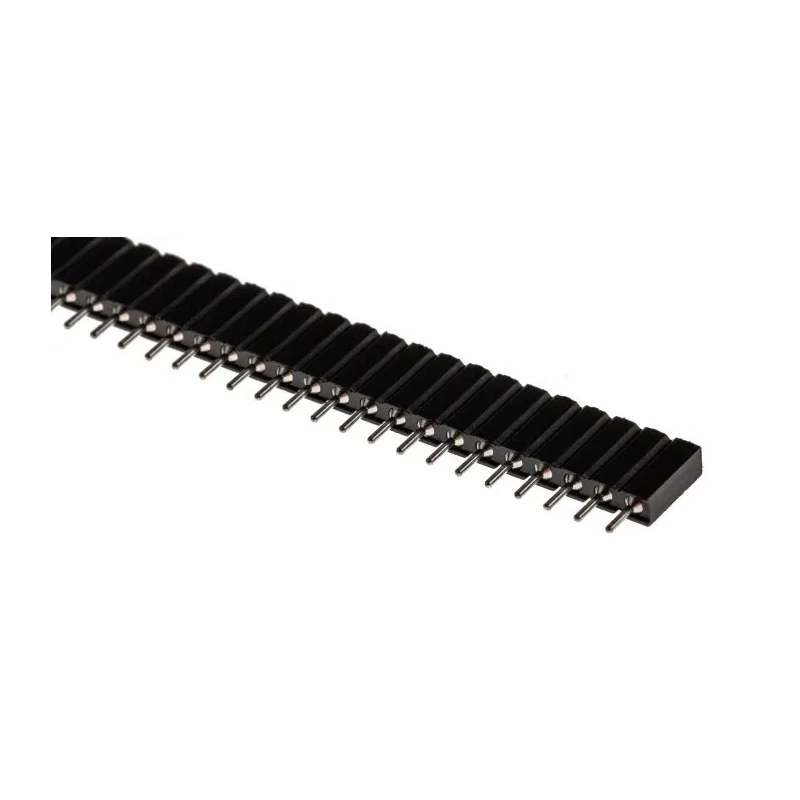

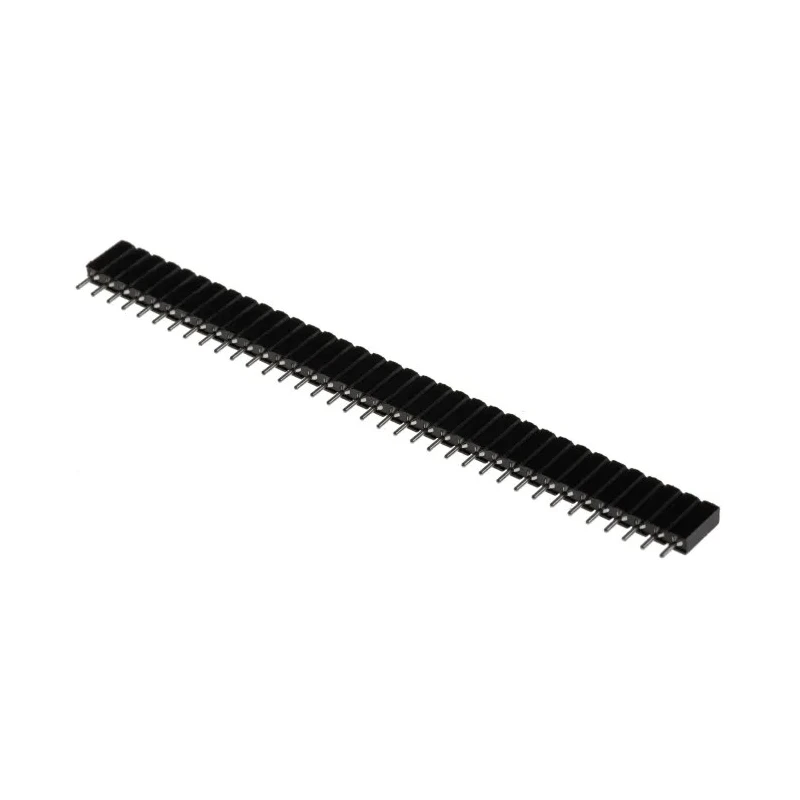

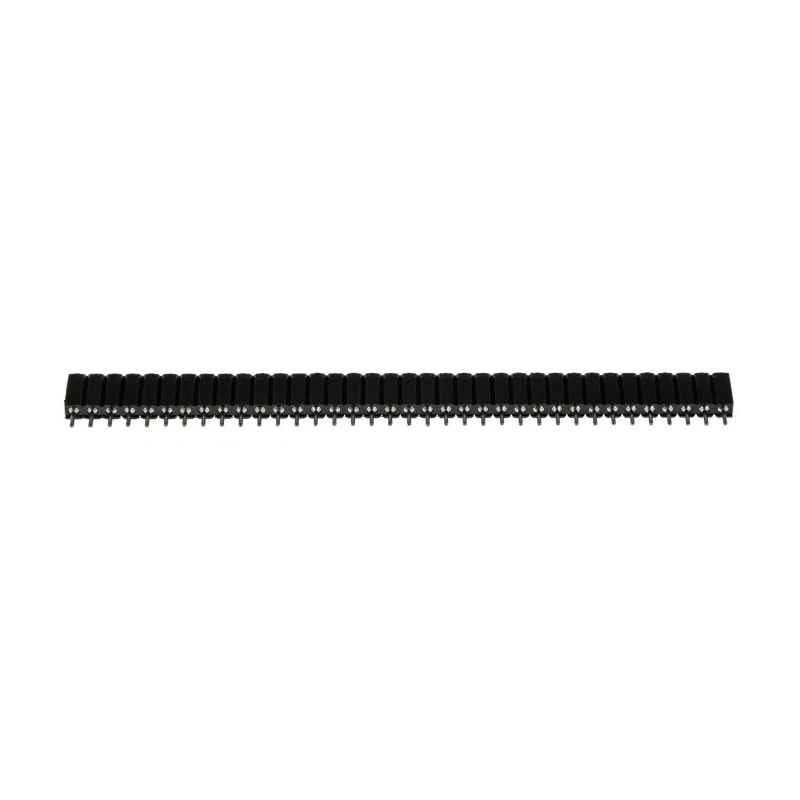

E-TEC BL Series Straight Through Hole PCB Socket 36-Contact 1 Row 2.54 mm Pitch Solder BL1-036-G-700-01

Free Delivery in India | Lowest Global Shipping Charges

E-TEC BL Series Straight Through Hole PCB Socket 36-Contact 1 Row 2.54 mm Pitch Solder BL1-036-G-700-01

Name: E-TEC BL Series Straight Through Hole PCB Socket 36-Contact 1 Row 2.54 mm Pitch Solder BL1-036-G-700-01
Brand: E-TEC
SKU: 197406
Price: 7.04 USD
Availability: InStock



Category PCB Socket Brand E-TEC Condition New

Specifications

Country of Origin	India
Voltage	500V
Brand	E-TEC
Orientation	Straight
Current	12A
Model	BL1-036-G-700-01
Mount Type	Through Hole
Housing Material	Plastic
Contact Material	Beryllium Copper Alloy
Series	BL
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Socket Strip
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	36
Contact Gender	Female
Connector System	Board-to-Board
Stacking Height	2.54mm

Key Features

This PCB socket supports a current rating of 12A and a voltage up to 500V.
The housing is made of durable plastic with a through-hole mount type.
Contacts are made of beryllium copper alloy with gold plating for excellent conductivity and corrosion resistance.
Designed for board-to-board connector systems with a female contact gender and straight orientation.
Operates reliably between -55°C and 125°C, suitable for various industrial applications.
The BL series offers large-diameter tulip contact divisible strips for secure connections.

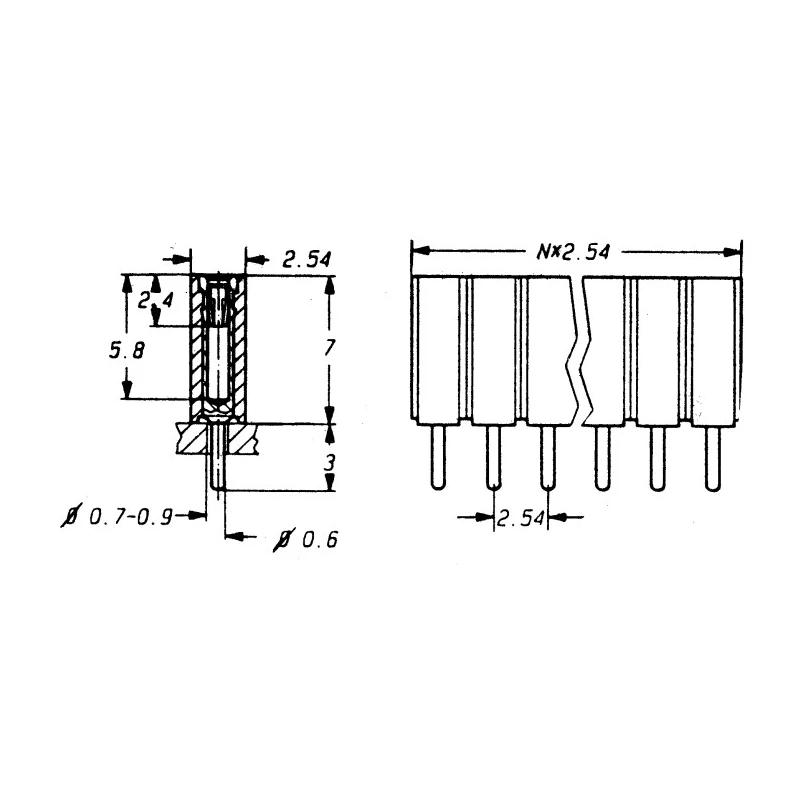

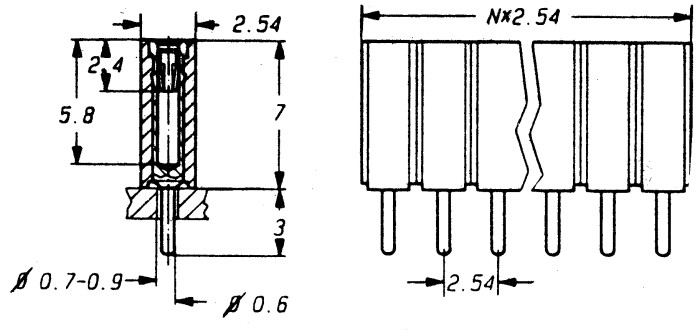

Stacking height is 2.54 mm with a row pitch matching the contact pitch for compact PCB layouts.
No compliance with specific standards or approvals is specified for this model.

Product Description

E-TEC BL1-036-G-700-01 BL Series Straight Through Hole PCB Socket features 36 contacts arranged in a single row with a 2.54 mm pitch. This socket is engineered for solder termination on PCBs and supports a maximum current of 12A and voltage rating of 500V, providing reliable electrical performance.

The socket housing is constructed from high-quality plastic and uses a through-hole mounting style for robust mechanical stability. The contact components are crafted from beryllium copper alloy with gold plating, ensuring excellent conductivity, corrosion resistance, and durability over extended use.

This socket is designed for board-to-board connector systems, with female contact gender and straight orientation, allowing versatile connectivity options within electronic assemblies. It operates effectively in extreme temperature ranges from -55°C to 125°C, making it suitable for industrial, laboratory, and manufacturing environments.

The BL series incorporates large-diameter tulip contact divisible strips that aid in secure and stable connections. The stacking height and row pitch of 2.54 mm make it ideal for dense PCB layouts and space-saving applications.

This component is ideal for electronic component manufacturing, power connectors, and PCB assembly applications. Its design caters to a wide range of electronic and industrial use cases requiring reliable board interconnections.

Suitable for applications in manufacturing, industrial electronics, and prototyping labs. Package contains 1 piece of E-TEC BL1-036-G-700-01 PCB Socket. Explore more components in the PCB Sockets category at EnvMart for comprehensive connectivity solutions.
