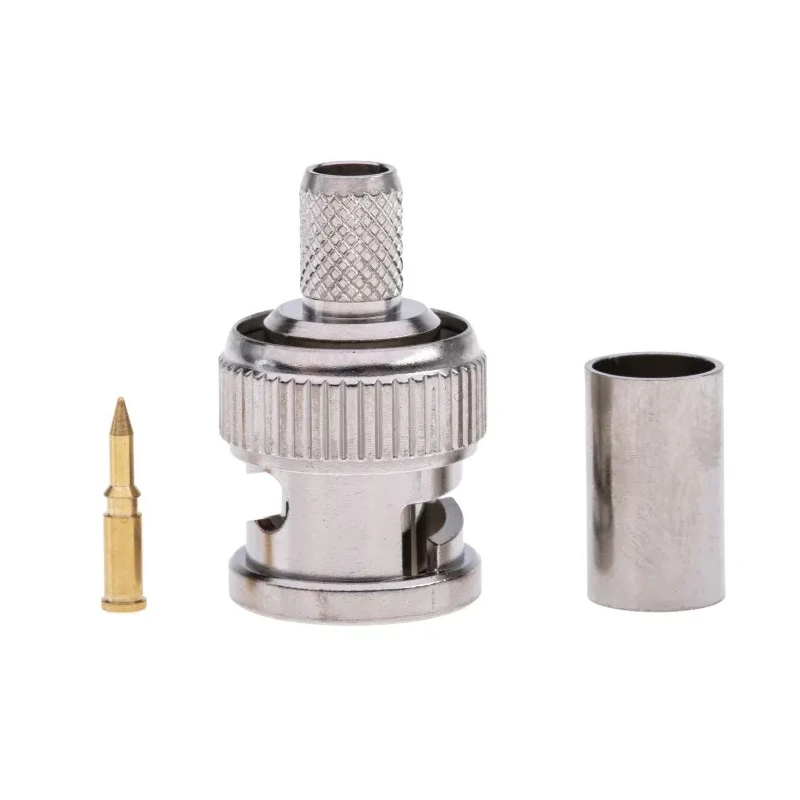

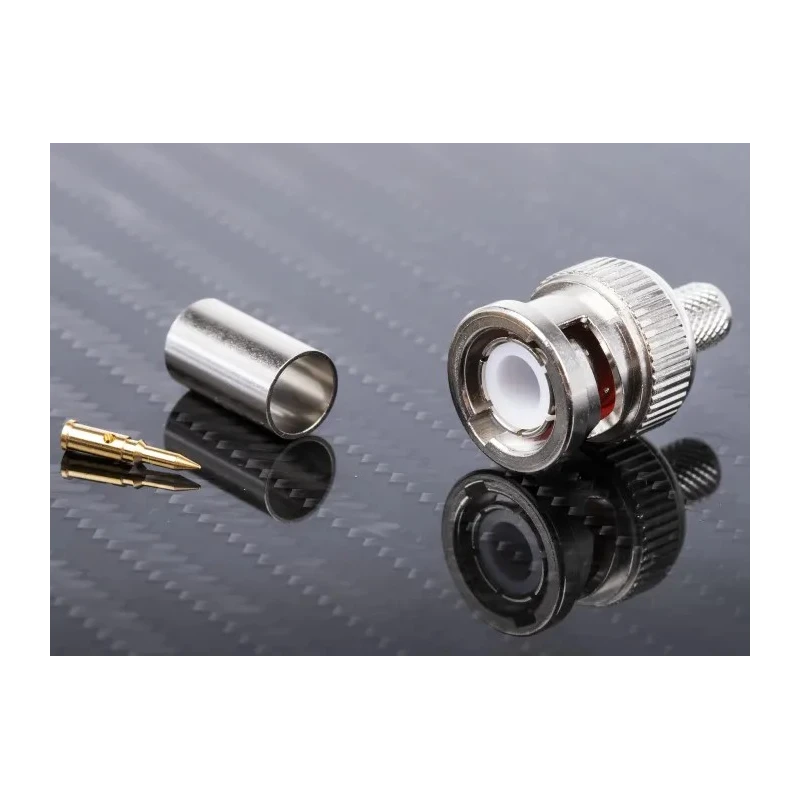

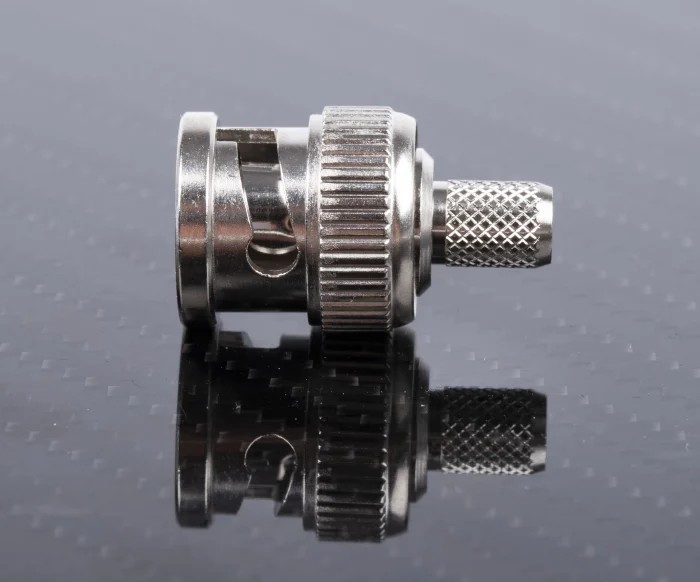

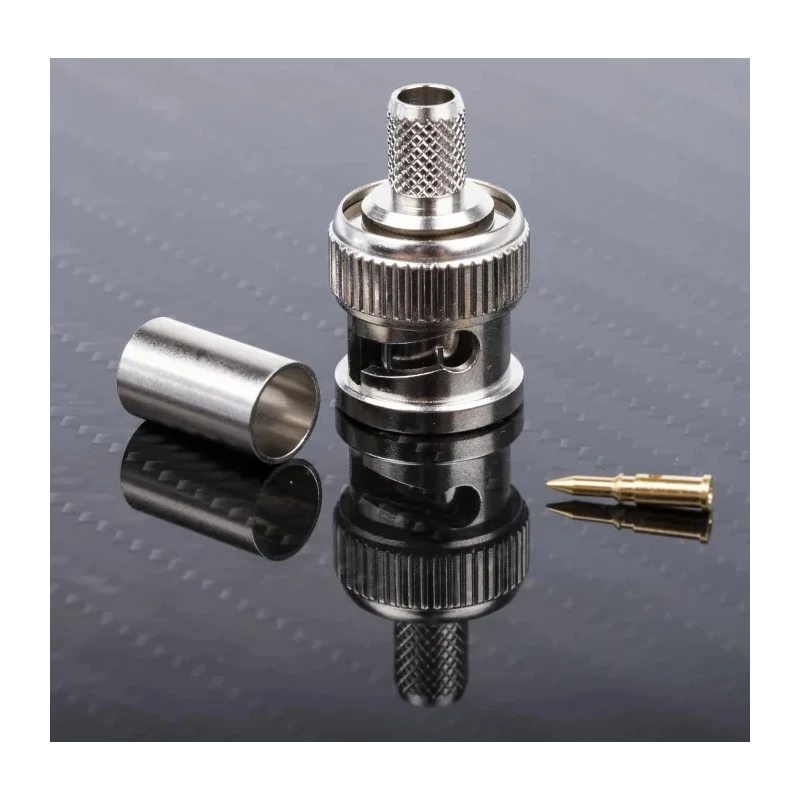

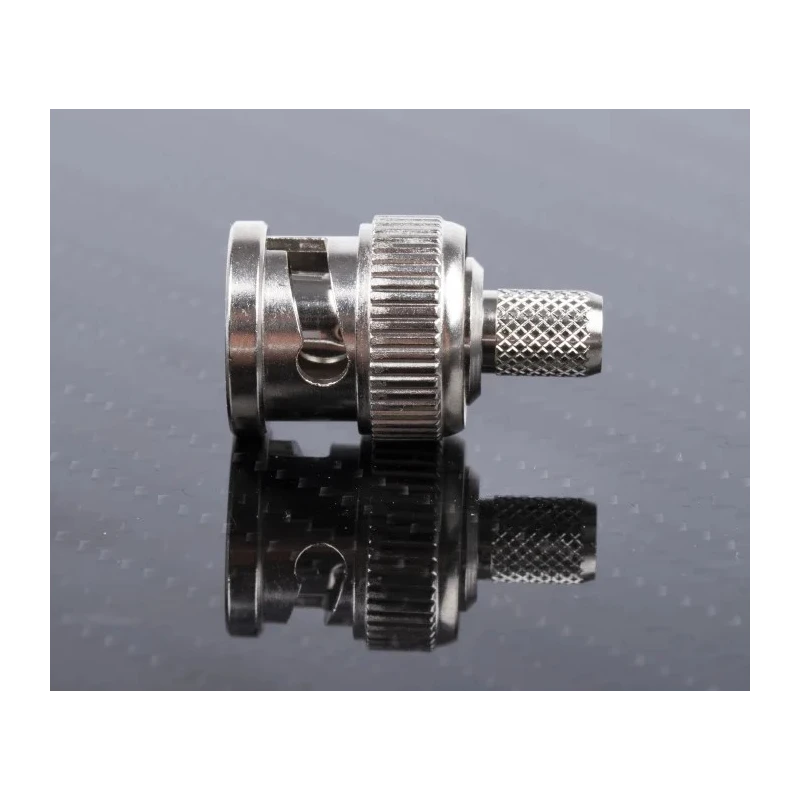

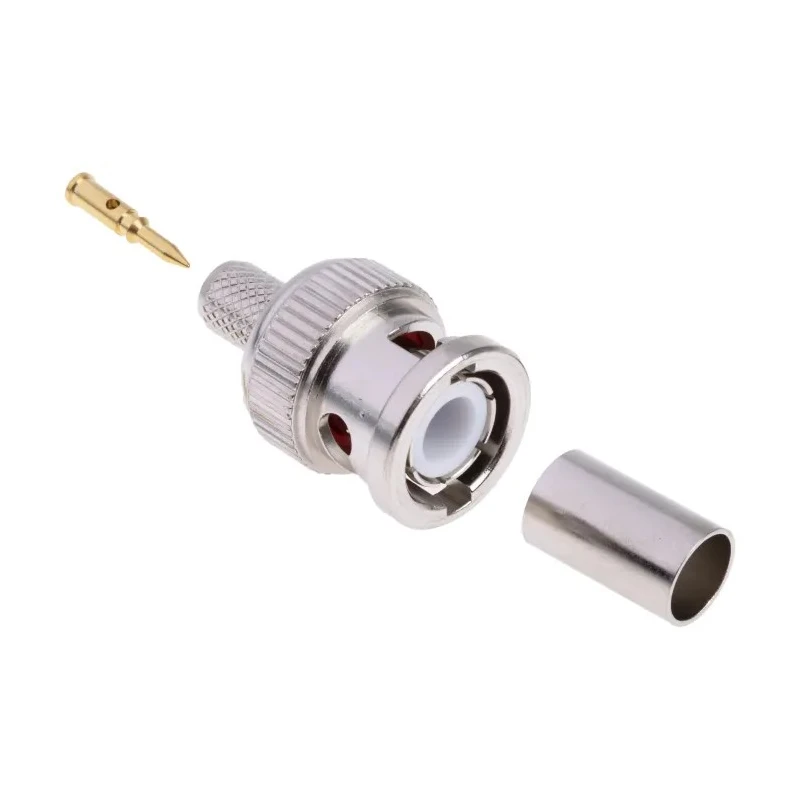

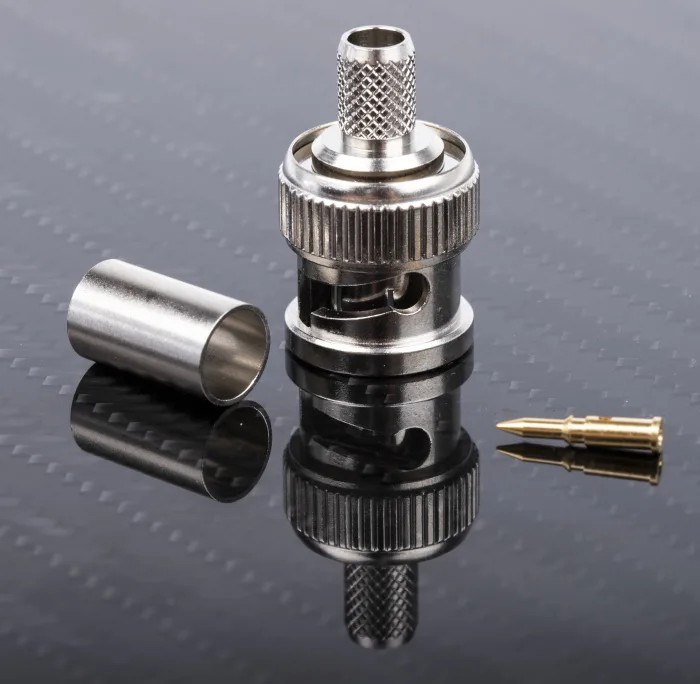

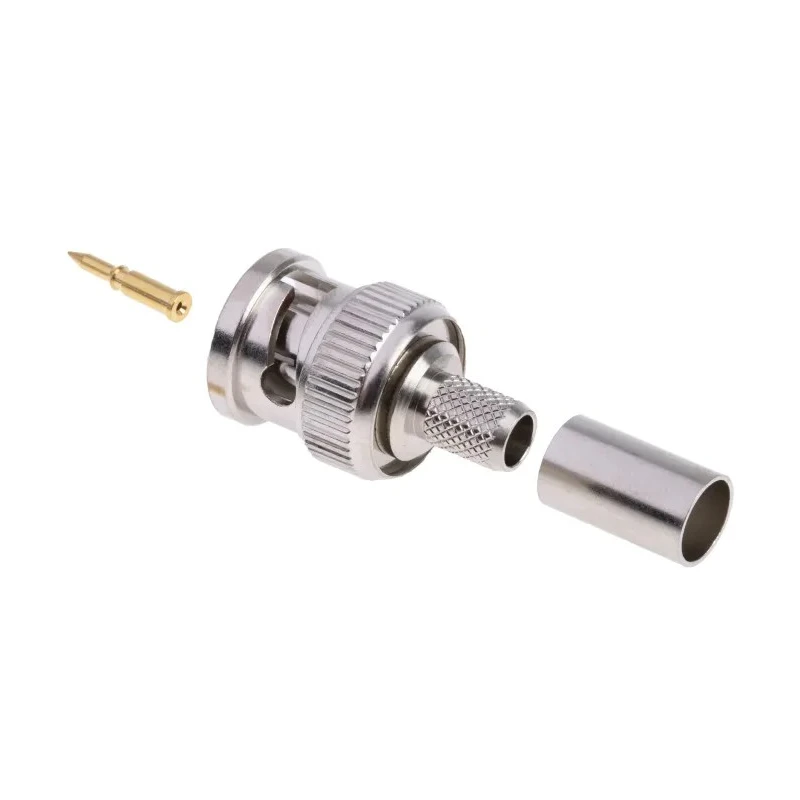

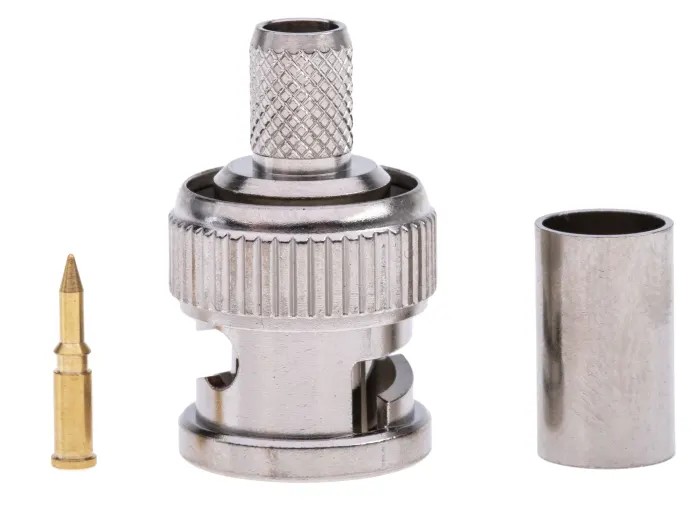

RS PRO Coaxial Connector Cable Male BNC 75 Ω Straight Body Crimp 4 GHz Operating Frequency 546-4869
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 546-4869 |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Copper |
| Series | RS PRO |
| Termination Type | Crimp |
| Maximum Operating Temperature | 80°C |
| Cable Type | RG59 |
| Minimum Operating Temperature | -20°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| • Insulation material | PTFE |
| RS PRO Coaxial Connector Cable Male BNC, 75 Ω, Straight Body CrimpBrand | RS PRO |
| Weidmuller 10-Piece Coaxial Cable Termination KitBrand | Weidmuller |
| Crimp BNC straight plug-RG59 cable,75ohmBrand | RS PRO |
Key Features
- The connector is designed for RG59 coaxial cables with a standard size.
- It supports an operating frequency up to 4 GHz essential for high-quality signal transmission.
- The body and contacts feature durable nickel and gold plating respectively, enhancing longevity.
- Normal polarity and crimp termination provide secure and easy installation.
- Operating temperature ranges from -20°C to 80°C, suitable for diverse environments.
- The PTFE insulation ensures improved reliability and signal integrity.
- The connector is male type with a straight orientation for convenient cable routing.
- Widely used in applications such as antenna connections, telecom, CCTV, medical equipment, and SATCOM.
Product Description
RS PRO 546-4869 Coaxial Connector Cable is a male BNC connector designed with a 75 Ω impedance and a straight body for efficient signal transmission. It features a crimp termination type, compatible with RG59 coaxial cables, making it suitable for precision RF connection requirements.
The connector body is nickel-plated which offers robust build quality and corrosion resistance. Its center pin contact is gold-plated to ensure excellent conductivity and durability over extended service life. The insulation material used is PTFE, contributing to high insulation reliability.
Engineered for an operating frequency up to 4 GHz, this connector supports a wide range of RF applications including video signal transmission, radio broadcast, telecom infrastructure, CCTV installations, medical equipment, and satellite communication systems.
The temperature rating from -20°C to 80°C allows the connector to operate reliably in diverse environmental conditions, making it versatile for industrial and commercial settings. Its crimp termination method facilitates secure and repeatable connections using standard crimping tools.
BNC connectors such as this one are recognized for their bayonet coupling mechanism which provides quick and secure mating and unmating of cables. The 75 Ω impedance is standard for broadcast and RF signal cables, ensuring minimal signal loss and interference.
The connector type is male BNC with straight orientation suitable for RG59 cable. Operating temperature range from -20°C to 80°C ensures flexibility in installation environments. Nickel-plated body and gold-plated copper contacts guarantee durability and excellent conductivity.
PTFE insulation material improves performance and reliability. Ideal for RF applications such as antenna connections, telecom, CCTV, satcom, and medical devices.
Choose RS PRO Coaxial Connectors for tested quality and performance trusted by engineers worldwide. Explore the broad RS PRO catalog of high-quality electrical components on EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this coaxial connector is 4 GHz, which is essential for high-quality signal transmission in RF applications.
This connector is compatible with RG59 coaxial cables, making it suitable for precision RF connection requirements.
The operating temperature range for this model is from -20°C to 80°C, allowing it to function reliably in diverse environmental conditions.
This connector features a crimp termination type, which facilitates secure and repeatable connections using standard crimping tools.
The connector body is nickel-plated for corrosion resistance, while the center pin contact is gold-plated copper for excellent conductivity.
This BNC connector has an impedance rating of 75 Ω, which is standard for broadcast and RF signal cables to minimize signal loss and interference.
The connector has a straight orientation, which is convenient for cable routing in various applications.
This model is a male BNC connector, designed for secure connections with compatible female connectors.
The insulation material used in this connector is PTFE, which contributes to high insulation reliability and improved signal integrity.
This connector is widely used in applications such as antenna connections, telecom, CCTV installations, medical equipment, and SATCOM.
The connector is designed with a standard size, making it compatible with various coaxial cable installations.
This coaxial connector is manufactured in Taiwan, ensuring quality in its construction and performance.
