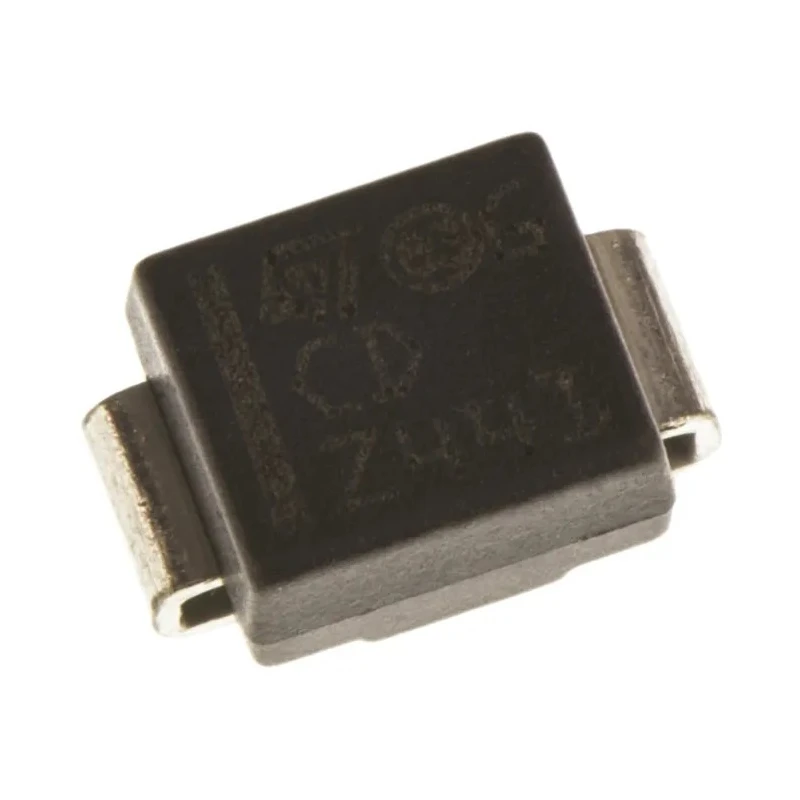

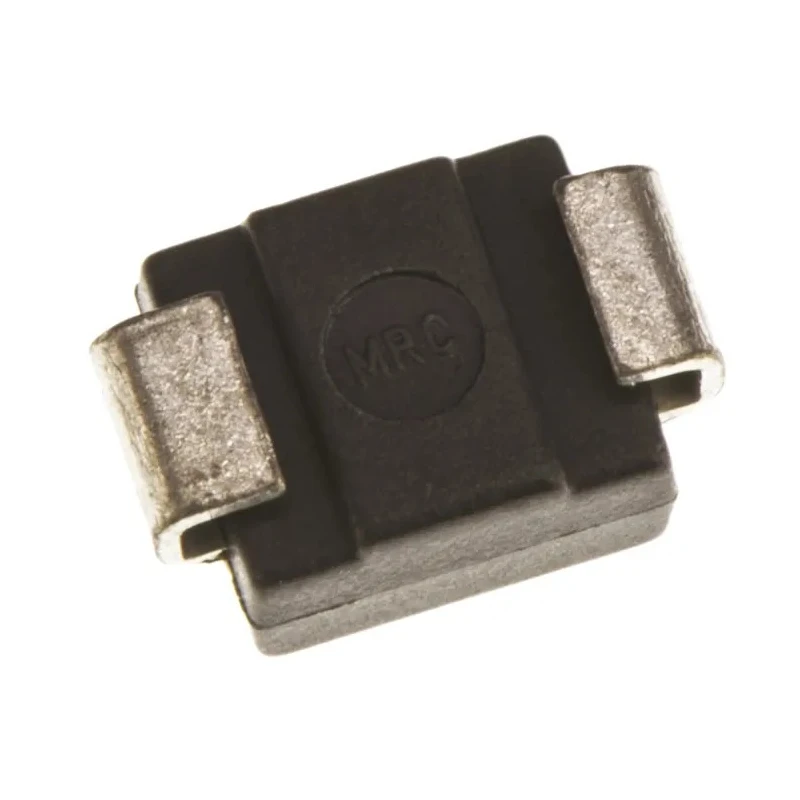

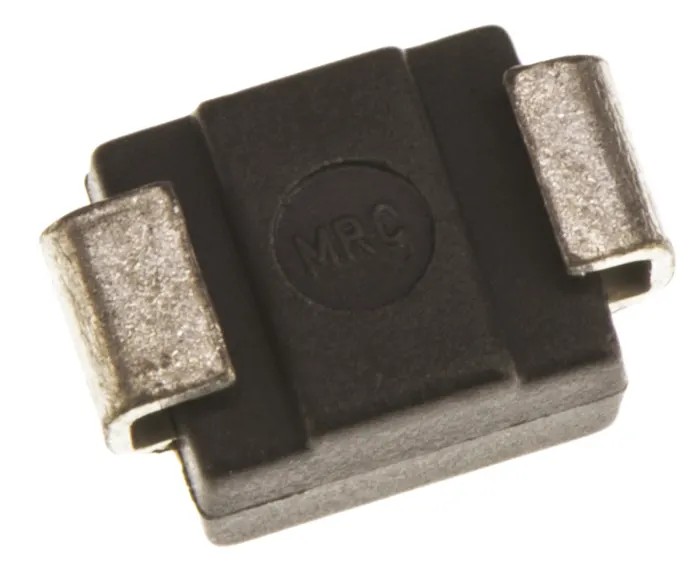

STMicroelectronics 1-Element Uni-Directional TVS Diode 600 W 2-Pin DO-214 SMLVT3V3
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | SMLVT3V3 |
| Width | 3.95mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 10.3V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 4.1V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 200A |
| Maximum Reverse Leakage Current | 200μA |
Key Features
- Single element uni-directional configuration for effective transient voltage suppression.
- Peak pulse power dissipation of 600 W at 10/1000µs waveforms.
- Minimum breakdown voltage of 4.1 V with maximum reverse stand-off voltage of 3.3 V.
- Low clamping voltage of 10.3 V and fast response time for surge protection.
- Operating temperature range from -65°C to 175°C.

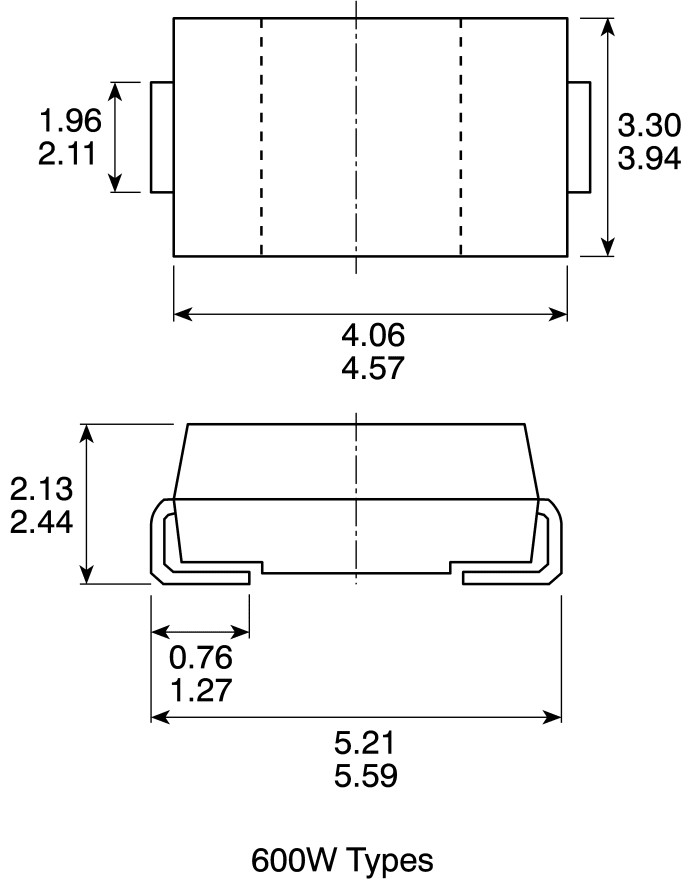

- Compact surface mount DO-214 package measuring 4.6 mm length, 3.95 mm width, and 2.45 mm height.
- Maximum peak pulse current rating of 200 A and maximum reverse leakage current of 200 μA.
- Ideal for protecting sensitive electronic components from voltage spikes.
Product Description
STMicroelectronics SMLVT3V3 is a 1-element uni-directional Transient Voltage Suppressor (TVS) diode designed to protect electronic circuits from transient voltage spikes. It offers a peak pulse power dissipation of 600 W with excellent clamping and response times, packaged in a compact 2-pin DO-214 surface mount configuration.
This diode provides a minimum breakdown voltage of 4.1 V and a maximum reverse stand-off voltage of 3.3 V, ensuring reliable suppression of transient surges. Its low clamping voltage of 10.3 V limits voltage spikes effectively, protecting sensitive components.
The device operates reliably over a broad temperature range from -65°C to 175°C, suitable for demanding industrial and electronic equipment environments. The compact package dimensions of 4.6 mm length, 3.95 mm width, and 2.45 mm height facilitate space-saving PCB designs.
With a maximum peak pulse current rating of 200 A and a maximum reverse leakage current of 200 µA, the SMLVT3V3 is engineered for high-performance transient voltage suppression in various applications including power supplies, consumer electronics, automotive systems, and industrial controls.
Designed for surface mount technology, this TVS diode enhances production efficiency with reel packaging and ease of automated placement. It complies with RoHS standards for environmental safety.
Single element uni-directional configuration for effective transient voltage suppression. 600 W peak pulse power dissipation at 10/1000 µs surge waveforms. Minimum breakdown voltage of 4.1 V and maximum reverse stand-off voltage of 3.3 V.
Low clamping voltage of 10.3 V and fast response time for surge protection. Operating temperature range from -65°C to 175°C. Compact DO-214 surface mount package, measuring 4.6 mm x 3.95 mm x 2.45 mm. Maximum peak pulse current of 200 A and maximum reverse leakage current of 200 μA.
Ideal for protecting sensitive electronic circuits from voltage transients. RoHS compliant, suitable for industrial, automotive, and consumer electronic applications. Discover a wide range of semiconductor protection components in the EnvMart Electronics & Electricals category, including TVS Diodes for safeguarding your electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the SMLVT3V3 is 600 W at 10/1000 µs surge waveforms.
This diode operates reliably over a temperature range from -65°C to 175°C.
The compact DO-214 package measures 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height.
The minimum breakdown voltage of the SMLVT3V3 is 4.1 V.
The maximum reverse stand-off voltage for this model is 3.3 V.
The clamping voltage for the SMLVT3V3 is 10.3 V.
This diode has a maximum peak pulse current rating of 200 A.
The maximum reverse leakage current is 200 μA.
The SMLVT3V3 features a single element configuration.
This model is designed for surface mount technology.
It is ideal for protecting sensitive electronic components in power supplies, consumer electronics, automotive systems, and industrial controls.
Yes, the SMLVT3V3 complies with RoHS standards for environmental safety.
