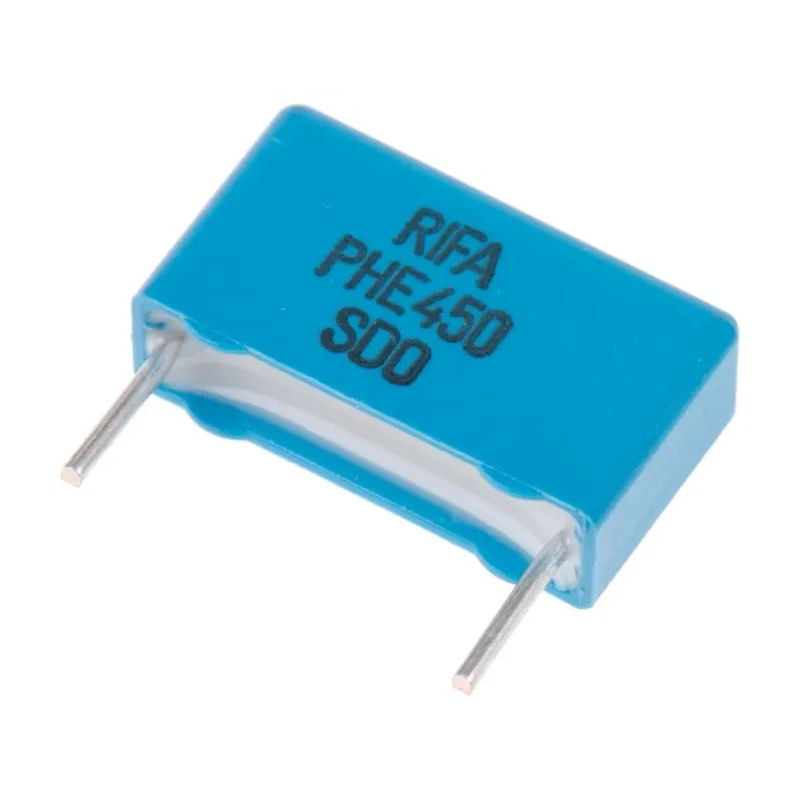

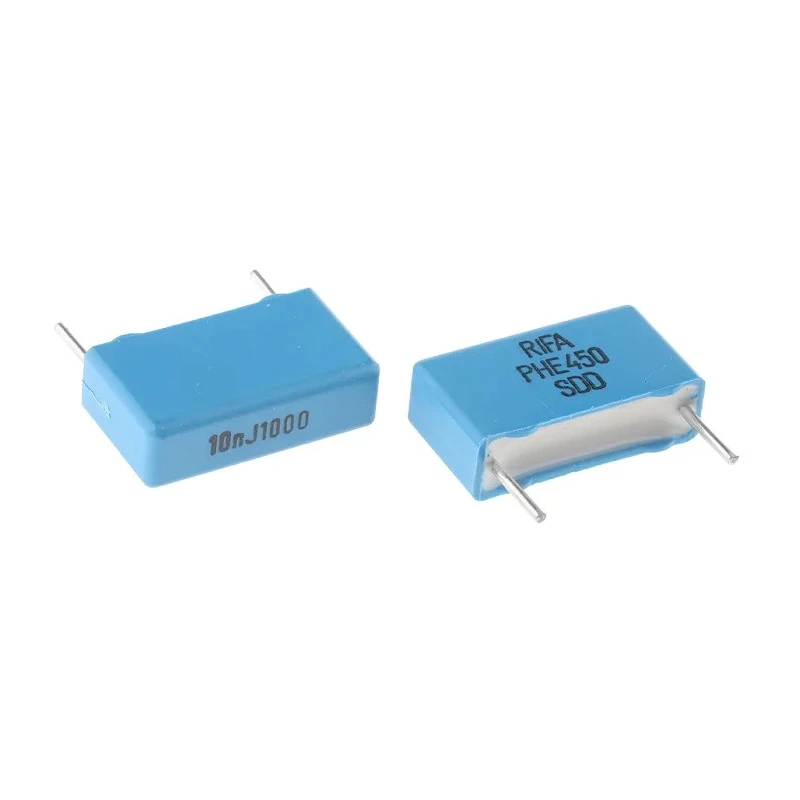

KEMET Film Capacitor PHE450, ±5% Tolerance, 10 nF, 1 kV DC, 180 V AC, Through Hole, Radial Lead, 15 mm Lead Pitch PHE450

Free Delivery in India | Lowest Global Shipping Charges

KEMET Film Capacitor PHE450, ±5% Tolerance, 10 nF, 1 kV DC, 180 V AC, Through Hole, Radial Lead, 15 mm Lead Pitch PHE450

Name: KEMET Film Capacitor PHE450, ±5% Tolerance, 10 nF, 1 kV DC, 180 V AC, Through Hole, Radial Lead, 15 mm Lead Pitch PHE450
Brand: KEMET
SKU: 196793
Price: 0.93 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	Finland
Brand	KEMET
Height	10.5mm
Length	18mm
Model	PHE450
Packaging	Tape & Reel
Width	5.5mm
Mount Type	Through Hole
Series	PHE450
Maximum Operating Temperature	105°C
Tolerance	±5 %
Capacitance	10nF
Minimum Operating Temperature	-55°C
Terminal type	Radial
Dissipation Factor	0.0003%
Rated Voltage	250 V dc to 3000 V dc
Lead Length	6mm
Standards/Approvals	RoHS
Pin Count	2
Rated AC Voltage	180V ac
Rated DC Voltage	1kV dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Capacitance tolerance	±5%, other tolerances on request
Lead Spacing	7.5 mm to 37.5 mm
TDK B32654 Film Capacitor 10 nF 250V ac 1 kV dc, Through Hole 2Brand	TDK
Capacitor, polypropylene, pulse, 1kVdc, 0.01uFBrand	Evox-Rifa

Key Features

Metallized polypropylene film capacitor suitable for pulse and snubber applications.
Rated DC voltage of 1 kV and AC voltage of 180 V with ±5% capacitance tolerance.
Encapsulated in a self-extinguishing resin meeting UL 94 V-0 standards.
Operating temperature range from -55°C to 105°C for robust performance.
Radial lead design with 15 mm pitch and 6 mm lead length for through-hole mounting.
Compliant with RoHS directives and manufactured in Finland.
Packaged in tape and reel format for efficient automated assembly.

Product Description

KEMET PHE450 Film Capacitor PHE450 is a metallized polypropylene Film Capacitor designed for high current stress applications, including protection circuits in switch mode power supplies and television deflection circuits. Offering a capacitance of 10 nF with a capacitance tolerance of ±5%, this capacitor supports a rated DC voltage of 1 kV and an AC voltage of 180 V, making it versatile for various industrial and electronic applications.

The capacitor features radial leads, a 15 mm lead pitch, and is encapsulated in a self-extinguishing resin that meets UL 94 V-0 requirements for enhanced safety. It is rated for operation across a temperature range from -55°C to 105°C, ensuring reliable performance in demanding environments.

Its physical dimensions include a length of 18 mm, height of 10.5 mm, and width of 5.5 mm, with a lead length of 6 mm and lead diameter of 0.8 mm, suitable for through-hole mounting on PCBs. The device is compliant with RoHS standards and originates from Finland.

This capacitor is packaged in tape and reel format, facilitating efficient automated placement during manufacturing. Its low dissipation factor of 0.0003% contributes to energy efficiency and minimal heat generation during operation.

The capacitor is ideal for pulse applications and snubber circuits requiring stable capacitance under high stress. Encapsulation ensures durability and flame resistance, important for industrial use. Compliance with environmental regulations ensures it can be utilized in green manufacturing processes.

The radial lead design supports reliable mechanical and electrical connection on through-hole PCBs. Its operation temperature range supports a variety of environmental conditions. Lead dimensions are optimized for secure mounting and durability.

The packaging facilitates high-volume automated assembly. Applications include industrial electronics, consumer electronics, and power management systems. Explore KEMET capacitors and component solutions on EnvMart for reliable performance in your electronic design and manufacturing processes.
