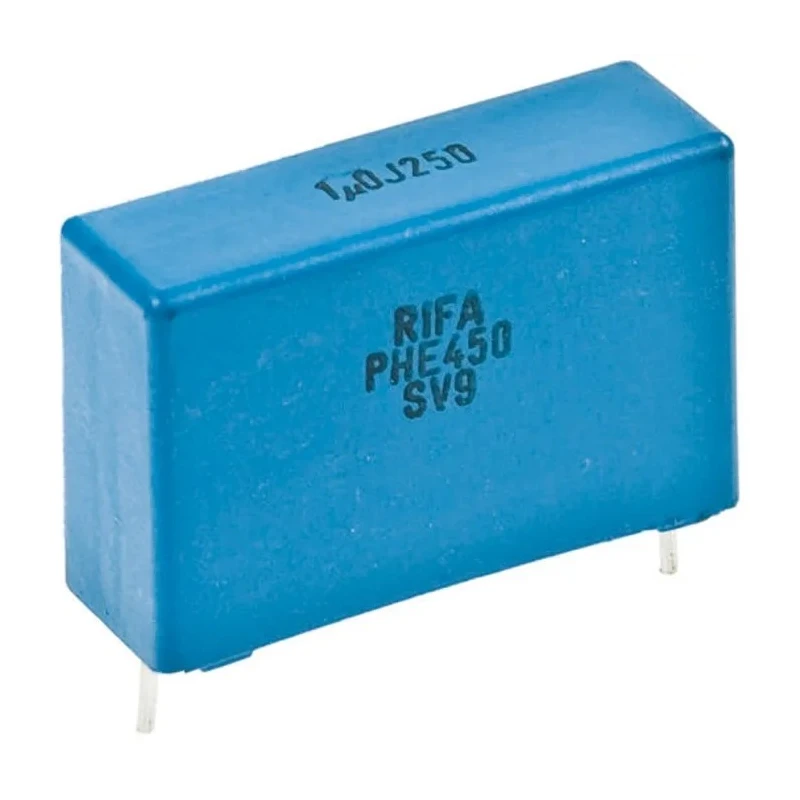

KEMET PHE450 Film Capacitor, 10 nF ±5 % Capacitance, 2 kV DC, 180 V AC, Radial Lead Through Hole Mount PHE450
Specifications
| Country of Origin | India |
|---|---|
| Brand | KEMET |
| Height | 14.5mm |
| Length | 26mm |
| Model | PHE450 |
| Packaging | Tape & Reel |
| Width | 6.5mm |
| Mount Type | Through Hole |
| Series | PHE450 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 10nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Dissipation Factor | 0.0003% |
| Rated Voltage | 250 V dc to 3000 V dc |
| Lead Length | 6mm |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Rated AC Voltage | 180V ac |
| Rated DC Voltage | 2kV dc |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Capacitance tolerance | ±5%, other tolerances on request |
| Lead Spacing | 7.5 mm to 37.5 mm |
Key Features
- Constructed with double metallized polypropylene film for high pulse current tolerance.
- Rated for 2 kV DC and 180 V AC voltages ensuring robust performance.
- Radial lead type with 22.5 mm lead pitch and 0.8 mm lead diameter for easy PCB integration.
- Operates reliably within temperatures ranging from -55°C to 105°C.
- Encapsulated in self-extinguishing UL 94 V-0 compliant resin for safety.
- Suitable for pulse and snubber circuits in switch mode power supplies and deflection circuits.
- Packaging is Tape & Reel allowing automated assembly process compatibility.
- Compliance with RoHS standards ensures environmental safety.
Product Description
KEMET PHE450 Film Capacitor PHE450 offers a capacitance of 10 nF with a tolerance of ±5 %, designed for through hole mounting with radial leads. It is rated for a DC voltage of 2 kV and AC voltage of 180 V, making it suitable for demanding electronic applications requiring stable capacitance and high voltage endurance.
This capacitor series features double metallized polypropylene film technology encapsulated in a self-extinguishing resin that meets UL 94 V-0 flammability standards, ensuring safety even under high current stress environments. The radial lead configuration with a lead pitch of 22.5 mm and lead diameter of 0.8 mm facilitates straightforward PCB mounting and soldering.
Its operating temperature range of -55°C to 105°C allows reliable function across extreme environmental conditions typical in industrial, telecommunications, and power electronics sectors.
The PHE450 is designed primarily for pulse and snubber circuit applications, including use in switch mode power supplies and television deflection circuits. Its robust build and encapsulation make it a dependable component for circuit protection and performance stabilization.
Double metallized polypropylene film construction for enhanced pulse capability. Rated voltage range: 250 V DC to 3000 V DC and 180 V AC to 1000 V AC. Encapsulation in UL94 V-0 compliant self-extinguishing resin for fire resistance.
Lead spacing options between 7.5 mm and 37.5 mm for varied circuit designs. Packaging in tape and reel format supports automated PCB assembly processes. RoHS compliant for environmental and safety standards adherence.
This capacitor is ideal for industrial and electronic manufacturing sectors requiring high reliability Film Capacitors. It supports applications in power electronics, pulse filtering, and snubber networks for a wide range of equipment types.
Explore more KEMET capacitors and electronic components at EnvMart for your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The KEMET PHE450 film capacitor has a capacitance value of 10 nF with a tolerance of ±5%.
It is rated for a DC voltage of 2 kV and an AC voltage of 180 V.
The operating temperature range is from -55°C to 105°C.
This model is designed for through hole mounting with radial leads.
The lead pitch is 22.5 mm and the lead diameter is 0.8 mm.
It is packaged in a tape and reel format, which supports automated assembly processes.
This capacitor is suitable for pulse and snubber circuits in switch mode power supplies and deflection circuits.
The dimensions are 26 mm in length, 6.5 mm in width, and 14.5 mm in height.
The dissipation factor is 0.0003%.
Yes, it is RoHS compliant, ensuring adherence to environmental safety standards.
The terminal type for this model is radial.
The minimum rated voltage is 250 V DC, and the maximum is 3000 V DC.
