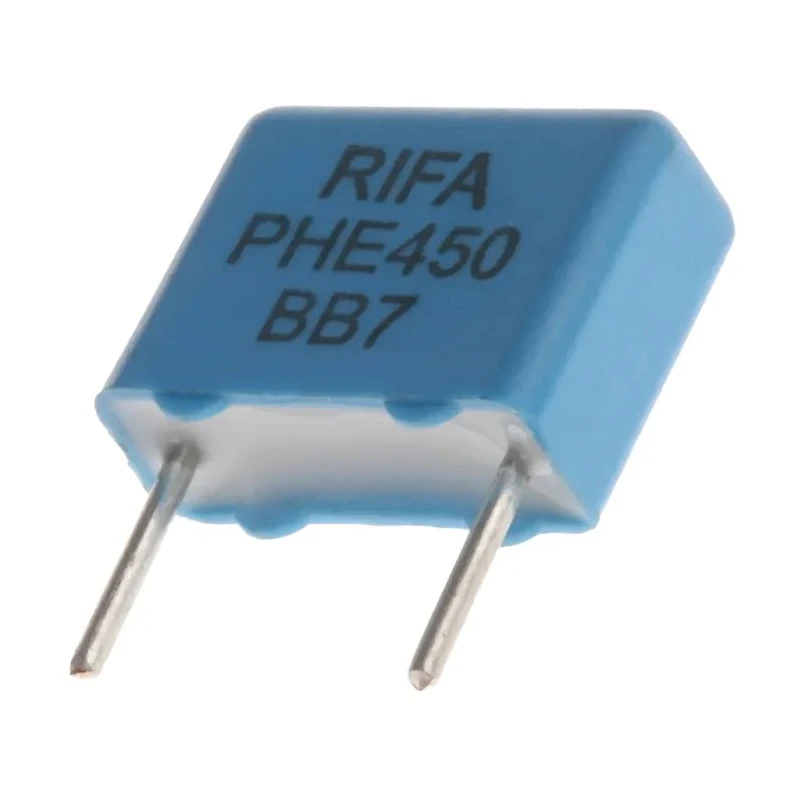

KEMET Film Capacitor, Metallized Polypropylene, ±5% Tolerance, 10 nF Capacitance, 400 V DC, 180 V AC, Through Hole PHE450

Free Delivery in India | Lowest Global Shipping Charges

KEMET Film Capacitor, Metallized Polypropylene, ±5% Tolerance, 10 nF Capacitance, 400 V DC, 180 V AC, Through Hole PHE450

Name: KEMET Film Capacitor, Metallized Polypropylene, ±5% Tolerance, 10 nF Capacitance, 400 V DC, 180 V AC, Through Hole PHE450
Brand: KEMET
SKU: 196778
Price: 0.33 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	India
Brand	KEMET
Height	8mm
Length	10mm
Model	PHE450
Packaging	Tape & Reel
Width	4mm
Mount Type	Through Hole
Series	PHE450
Maximum Operating Temperature	105°C
Tolerance	±5 %
Capacitance	10nF
Minimum Operating Temperature	-55°C
Terminal type	Radial
Dissipation Factor	0.0003%
Rated Voltage	250 V dc to 3000 V dc
Lead Length	5mm
Standards/Approvals	RoHS
Pin Count	2
Rated AC Voltage	180V ac
Rated DC Voltage	400V dc
Lead Pitch	7.5mm
Lead Diameter	0.6mm
Capacitance tolerance	±5%, other tolerances on request
Lead Spacing	7.5 mm to 37.5 mm

Key Features

This capacitor features double metallized polypropylene film designed for high current stress applications.
It is encapsulated with self-extinguishing UL 94 V-0 rated resin for enhanced safety.
The radial, through hole mounting with 7.5 mm lead pitch facilitates easy PCB insertion.
Operating temperature ranges from -55°C to 105°C ensuring reliable performance in varied environments.
Typical applications include pulse and snubber circuits, switch mode power supplies, and television deflection circuits.
Lead diameter is 0.6 mm with 5 mm lead length supporting robust mechanical connections.
Available in tape and reel packaging for efficient automated assembly.
Complies with RoHS environmental standards.

Product Description

The KEMET PHE450 Film Capacitor model offers precise capacitance of 10 nF with a ±5% tolerance, suitable for industrial and electronics applications requiring stable performance.

Constructed with double metallized polypropylene film, this capacitor provides excellent pulse handling capability and is rated for 400 V DC and 180 V AC voltages, making it ideal for smoothing, snubber, and filtering circuits.

The capacitor is housed in a robust, self-extinguishing resin package meeting UL 94 V-0 standards to ensure safety in demanding electrical environments. Its through hole mounting style with a 7.5 mm lead pitch and radial terminals facilitates straightforward PCB integration while maintaining mechanical stability during operation.

Designed to operate reliably over a wide temperature range from -55°C to 105°C, it is suited for applications in power supplies, aerospace, automotive, and consumer electronics. Double metallized polypropylene film construction for high current stress endurance.

UL 94 V-0 self-extinguishing encapsulation for enhanced safety. Through hole radial leads with 7.5 mm pitch for secure PCB mounting. Capacitance tolerance ±5% ensures precision in electronic circuits. Wide operating temperature range from -55°C to 105°C.

RoHS compliant for environmentally friendly manufacturing. Available in tape and reel packaging supporting automated PCB assembly. These capacitors find extensive use in industrial electronics, laboratory equipment, HVAC controls, manufacturing automation, and other high-reliability electronic assemblies.
