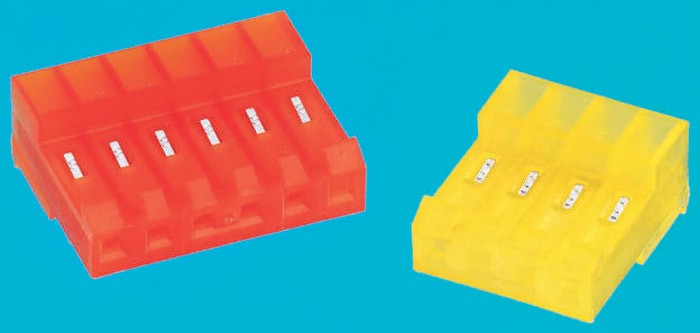

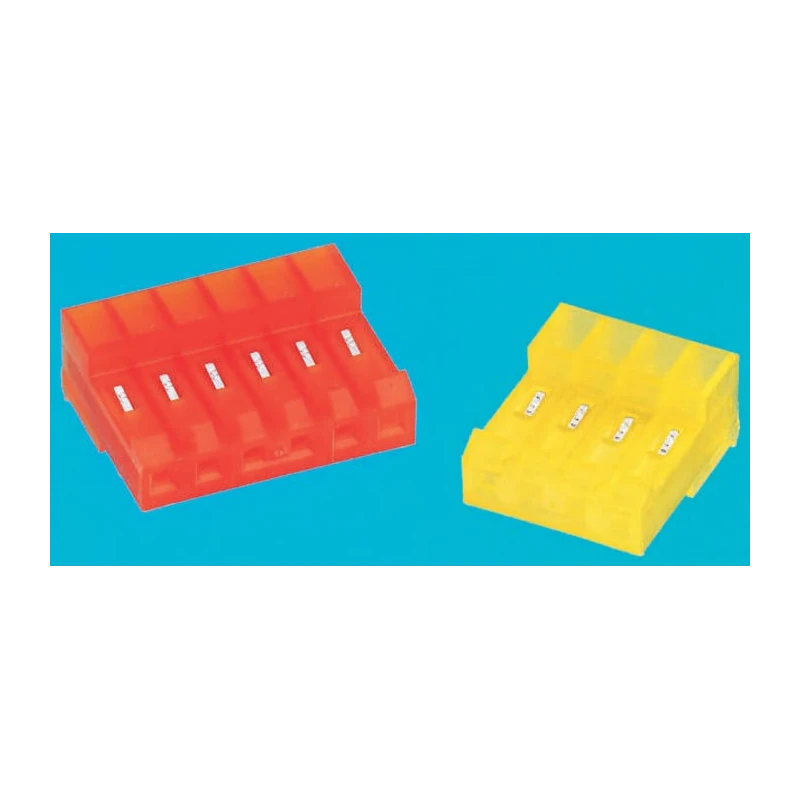

TE Connectivity 8-Way IDC Female Cable Connector, 1 Row, 3.96mm Pitch, 7A Current, 600V AC, Nylon Housing 3-640426-8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 7A |
| Mount Type | Cable |
| Housing Material | Nylon |
| Contact Material | Copper |
| Series | MTA-156 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
Key Features
- The connector has 8 contacts arranged in a single row for compact installation.
- Rated for 600V AC operation ensuring safe electrical performance.
- Constructed with a nylon housing providing insulation and durability.
- Features tin over nickel plated copper contacts to enhance corrosion resistance.
- Supports stranded discrete wire sizes from 18 to 26 AWG using IDC technology.
- Designed for right angle cable mounting for versatile cable management.
- Operates reliably within temperature range of -55°C to 105°C.
- Includes locking ramps and polarization tabs to prevent mis-mating.
Product Description
TE Connectivity model 3-640426-8 is an 8-way IDC female connector designed for cable assemblies requiring robust and efficient connections. With a single row of contacts spaced 3.96mm apart and a current rating of 7 amperes, this connector supports wire sizes from 18 AWG to 26 AWG using insulation displacement contact (IDC) technology. The shrouded nylon housing not only offers electrical insulation but also mechanical protection and prevents reverse mating through molded ribs.
Its tin over nickel plated copper contacts ensure longevity and resistance to corrosion, making it suitable for demanding electrical environments. The connector provides right angle cable mounting and a voltage rating of 600V AC, suitable for industrial and electronic component applications.
Engineered for reliability, this connector maintains performance across a wide temperature range of -55°C to 105°C, supporting harsh environmental conditions. The MTA-156 series design includes features such as locking ramps and polarization tabs, enabling secure and correct mating of connectors, facilitating modularity and ease of assembly in complex wiring harnesses.
This connector is widely used in electronics manufacturing, telecommunications equipment, control panels, and other industrial applications where reliable wire-to-board or wire-to-wire connections are essential.
The connector houses 8 female contacts arranged in one row. Pitch of 3.96mm ensures compact and precise connection spacing. Current rated at 7A, supporting typical electronic circuit requirements. Tin over nickel plating on copper contacts enhances conductivity and corrosion resistance.
Nylon housing provides electrical insulation and mechanical robustness. Right angle mounting optimizes cable routing and space usage. Operating temperature range from -55°C up to 105°C suits industrial environments. MTA-156 IDC system allows quick assembly without stripping wires.
Includes design features to prevent incorrect mating, improving reliability. Applications span across industrial, manufacturing, and electronic sectors. Explore more connectors and electronic components at EnvMart for your industrial and manufacturing needs.
Explore more products in our IDC Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a voltage rating of 600V AC, ensuring safe electrical performance in various applications.
It is rated for a maximum current of 7 amperes, suitable for typical electronic circuit requirements.
This model supports stranded discrete wire sizes from 18 AWG to 26 AWG using insulation displacement contact (IDC) technology.
The contacts are arranged with a pitch of 3.96mm, allowing for compact installation.
The housing is constructed from nylon, providing electrical insulation and mechanical protection.
It operates reliably within a temperature range of -55°C to 105°C, suitable for harsh environmental conditions.
Yes, it includes locking ramps and polarization tabs to prevent incorrect mating, enhancing reliability.
This IDC female connector has 8 contacts arranged in a single row.
It uses insulation displacement contact (IDC) technology for termination, allowing for quick assembly without stripping wires.
The connector is designed for right angle cable mounting, optimizing cable routing and space usage.
The contacts are made of copper and are plated with tin over nickel to enhance conductivity and corrosion resistance.
This connector belongs to the MTA-156 series, which is known for its efficient and robust connections in cable assemblies.
