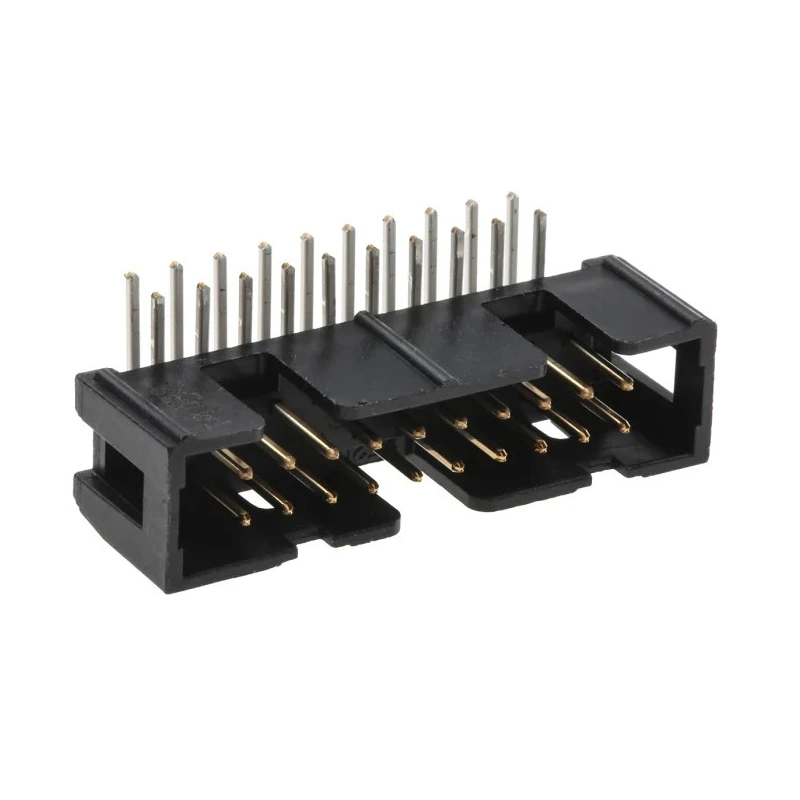

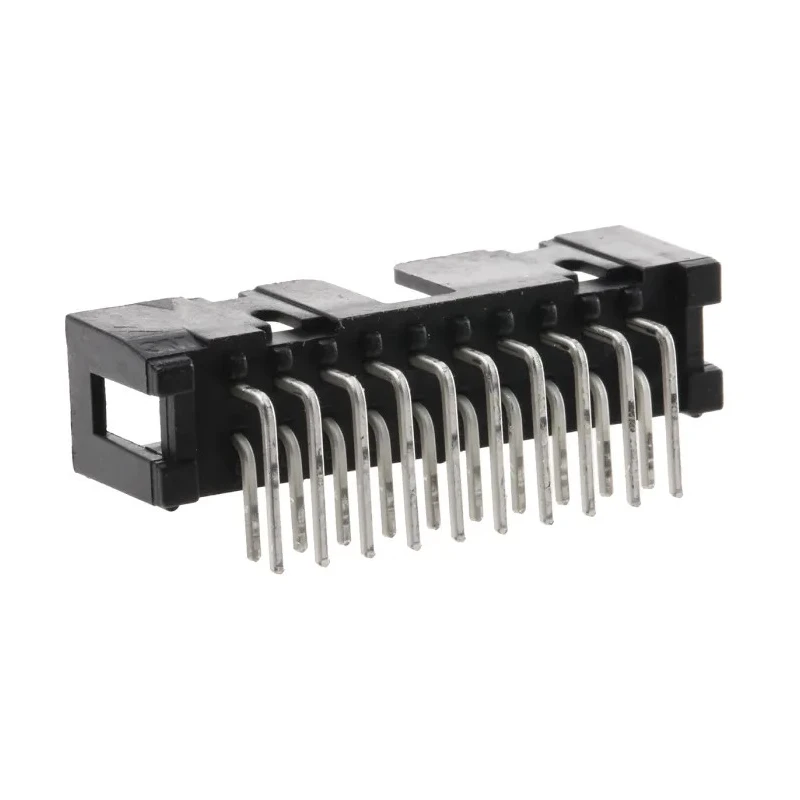

3M 2500 Series Right Angle Through Hole PCB Header, 20 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded N2520-5002RB

3M N2520-5002RB Right Angle Through Hole PCB Header from the 2500 Series is a high-quality connector for reliable electronic circuit integration. Featuring 20 male contacts arranged in 2 rows with a 2.54 mm pitch, this shrouded right-angle header optimizes space efficiency on printed circuit boards (PCBs). It is engineered for both wire-to-board and board-to-board connections, making it versatile for a variety of electronic applications.

The connector utilizes copper alloy contacts plated with gold to ensure excellent electrical conductivity and resistance to corrosion. The glass filled polyester housing adds insulation and durability while resisting impacts. The solder termination type and through-hole mount style provide secure mechanical and electrical connections.

Operating voltage is rated at 1000 V with a current capacity of 2 A, supporting demanding electrical requirements in industrial and commercial electronics. Its temperature tolerance ranges from -55°C to 105°C, suitable for harsh environmental conditions. The center slot polarization feature prevents incorrect insertion by enabling accurate alignment during assembly, reducing installation time and errors. Additionally, the flame-retardant housing enhances safety for use in extreme environments.

This 3M PCB Header is ideal for applications including integration with Arduino Uno and Raspberry Pi single-board computers (SBCs), as well as other electronic circuit designs requiring compact, reliable connectors. It is manufactured in the United States, ensuring adherence to quality manufacturing standards.

Right angle orientation facilitates easy access in compact PCB assemblies. Shrouded design improves connector durability and alignment during mating. Contacts feature copper alloy construction with gold plating for superior conductivity and corrosion resistance.

Glass filled polyester housing provides insulation and impact resistance. Designed for through-hole mounting with solder termination for secure installation. Supports board-to-board and wire-to-board connector systems. Electrical rating up to 1000 V and 2 A current capacity.

Operating temperature range from -55°C to 105°C suits diverse environments. Center slot polarization prevents incorrect insertion, enhancing installation accuracy. Flame-retardant materials enable use in extreme conditions.
