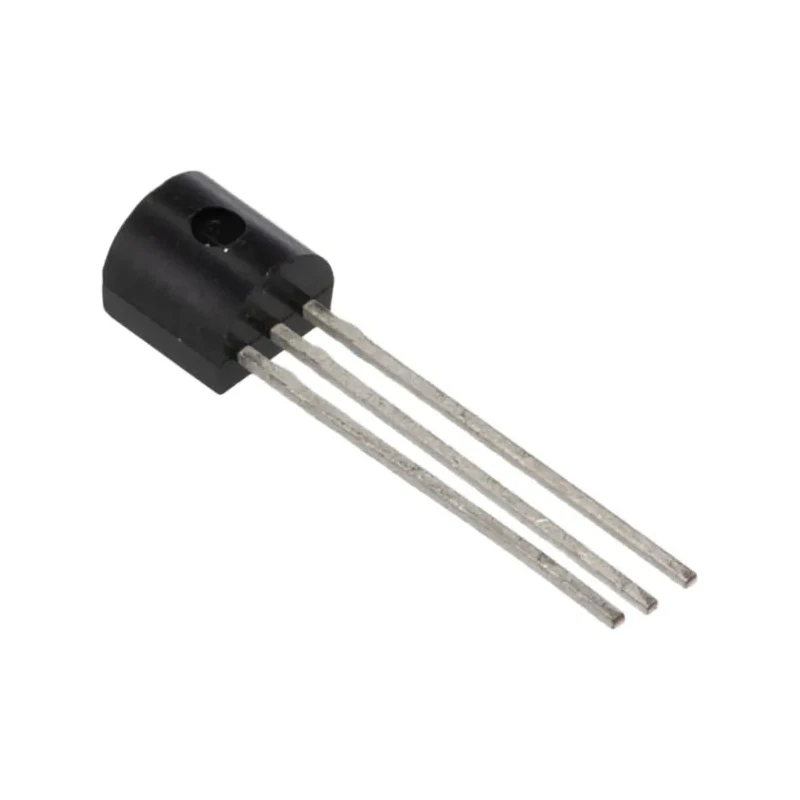

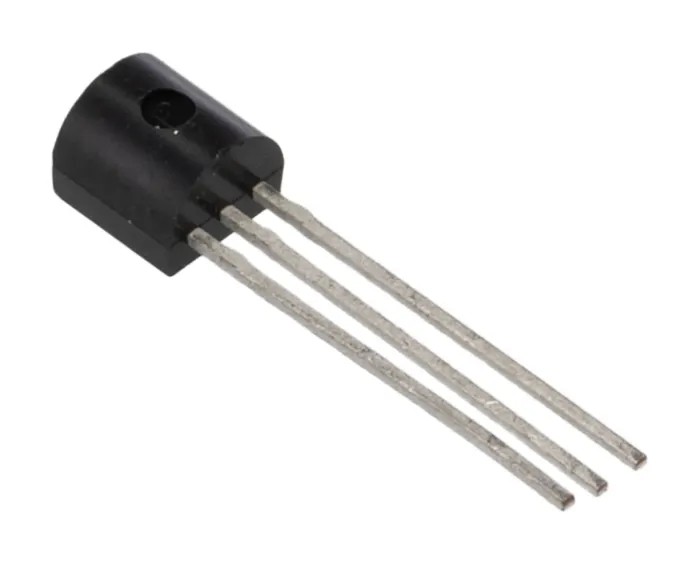

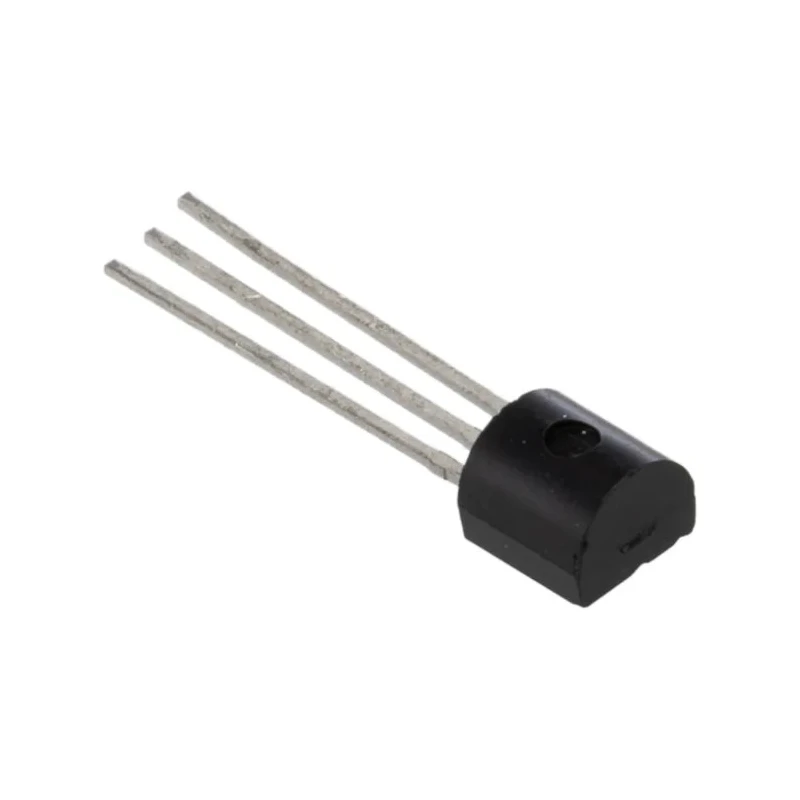

Microchip MCP1702-5002E/TO 5-Channel Low Dropout Voltage Regulator 250mA 5V TO-92 3-Pin
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.62mm |
| Length | 4.71mm |
| Model | MCP1702 |
| Width | 3.62mm |
| Mount Type | Through Hole |
| Output type | Fixed |
| Series | MCP1702 |
| Output Current | 250mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Load Regulation | 1 % |
| Minimum Operating Temperature | -40°C |
| Polarity | Positive |
| Regulator Type | Low Dropout Voltage |
| Number of outputs | 5 |
| Maximum Input Voltage | 13.2V |
| Output Voltage | 5V |
| Quiescent Current | 2μA |
| Line Regulation | 0.1 %/V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 2.7V |
| Pin Count | 3 |
Key Features
- Designed for through-hole mounting with TO-92 3-pin package.
- Offers low dropout voltage for efficient power management.
- Quiescent current is ultra-low at 2μA for minimal power loss.
- Supports input voltage range between 2.7V and 13.2V.
- Operates in temperature range from -40°C to 125°C, suitable for harsh environments.
- Positive polarity fixed output type ensuring consistent voltage regulation.
- Line regulation of 0.1 %/V and load regulation of 1 % for stable performance.
- Compact size with dimensions approx. 4.71mm length, 4.62mm height, and 3.62mm width.
Product Description
Microchip MCP1702-5002E/TO 5-Channel Low Dropout Voltage Regulator provides a fixed 5V output with a maximum output current of 250mA in a compact TO-92 3-pin through-hole package. It is designed for applications that require low dropout and ultra-low quiescent current operation, making it ideal for power-sensitive industrial, automotive, and consumer electronics systems.
This voltage regulator operates over a wide input voltage range from 2.7V to 13.2V, accommodating a variety of power supply conditions. It features positive polarity fixed output and maintains excellent line regulation of 0.1 %/V and load regulation of 1 %, ensuring consistent voltage under varying load and input conditions.
The MCP1702 series is RoHS compliant and operates reliably in extended temperature ranges from -40°C to 125°C, supporting harsh environmental requirements. Its small dimensions (4.71mm length, 4.62mm height, and 3.62mm width) enable integration within space-constrained designs. The ultra-low quiescent current of 2μA contributes towards extended battery life in portable applications.
Through-hole mount type in TO-92 3-pin package. Fixed 5V output voltage regulator with 250mA max current. Low dropout voltage enhances efficiency and battery performance. Wide operating input voltage from 2.7V to 13.2V. Robust operation across -40°C to 125°C temperature.
RoHS compliant for environmental safety adherence. Positive polarity and fixed output type for stable regulation. Compact size suited for industrial, automotive, and consumer electronics. Ideal for power management in sensitive electronic devices.
This product is a key component in electronic circuits requiring reliable voltage regulation, including industrial machinery controls, automotive electronic systems, laboratory equipment, and consumer gadgets. The MCP1702 series enables efficient power conversion with minimal energy loss, contributing to longer device runtime and enhanced system stability.
Explore more Voltage Regulators and power management ICs at EnvMart for diverse applications across electronics and electrical engineering sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a fixed output voltage of 5V.
The maximum output current is 250mA.
It supports an input voltage range from 2.7V to 13.2V.
The dimensions are approximately 4.71mm in length, 4.62mm in height, and 3.62mm in width.
The quiescent current is ultra-low at 2μA, which helps minimize power loss.
It operates reliably in a temperature range from -40°C to 125°C.
This model is designed for through-hole mounting in a TO-92 package.
It features a line regulation of 0.1 %/V and a load regulation of 1 % for stable performance.
Yes, this product is RoHS compliant, adhering to environmental safety standards.
The output type is positive polarity, ensuring consistent voltage regulation.
This model provides 5 outputs as part of its design.
It is classified as a low dropout voltage regulator, designed for efficient power management.
