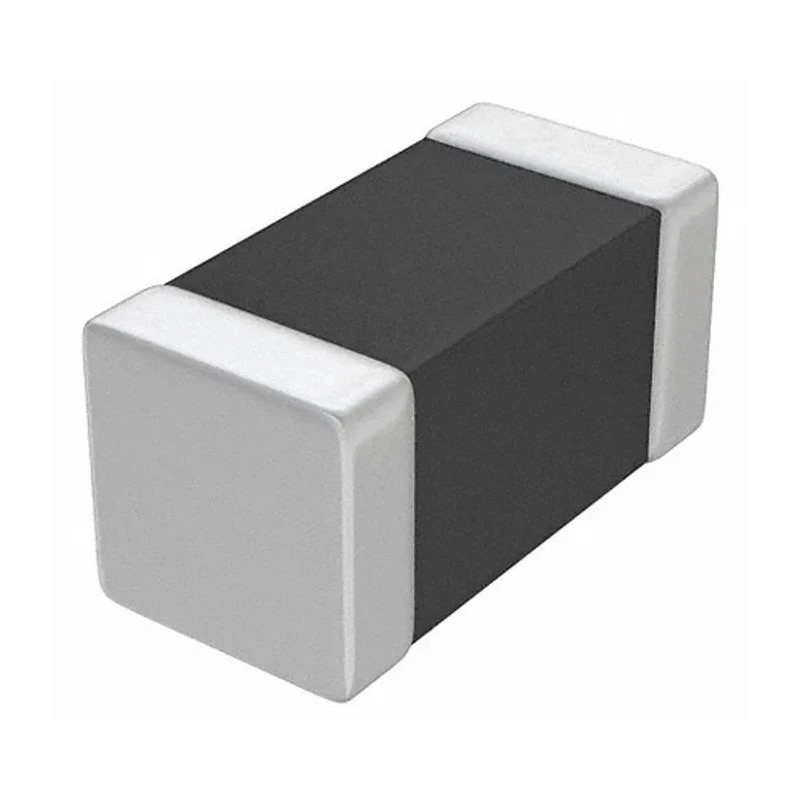

Murata Chip Ferrite Bead 0.8 mm Solder Mount 0603 Package, 600 Ω Impedance at 100 MHz, 700 Ω Impedance at 1 BLM18EG601SH1D

Free Delivery in India | Lowest Global Shipping Charges

Murata Chip Ferrite Bead 0.8 mm Solder Mount 0603 Package, 600 Ω Impedance at 100 MHz, 700 Ω Impedance at 1 BLM18EG601SH1D

Name: Murata Chip Ferrite Bead 0.8 mm Solder Mount 0603 Package, 600 Ω Impedance at 100 MHz, 700 Ω Impedance at 1 BLM18EG601SH1D
Brand: Murata
SKU: 196550
Price: 0.08 USD
Availability: InStock



Category Ferrite Bead Brand Murata Condition New

Specifications

Country of Origin	Japan
Brand	Murata
Material	Ferrite
Height	0.8mm
Length	1.6mm
Model	BLM18EG601SH1D
Depth	0.8mm
Mount Type	Solder
Current Rating	500mA
Series	BLM18EG
Maximum Operating Temperature	125°C
Package Type	0603
Sub Type	Chip Ferrite Bead
Minimum Operating Temperature	-55°C
Standards/Approvals	AEC-Q200
Maximum DC Resistance	350mΩ
Impedance at 100 MHz	600Ω
Automotive Standard	AEC-Q200
Impedance at 1 GHz	700Ω

Key Features

Designed for surface-mount technology with a 0603 package size.
Provides 600 Ω impedance at 100 MHz and 700 Ω impedance at 1 GHz for effective noise attenuation.
Supports a current rating of 500 mA suitable for automotive and general applications.
Constructed using high-quality ferrite material ensuring durability and performance.
Nickel barrier external electrodes deliver excellent solder heat resistance.
Complies with AEC-Q200 automotive standards ensuring reliability in demanding environments.
Compact size with 1.6 mm length, 0.8 mm height, and 0.8 mm depth supports high-density circuit designs.
Manufactured in Japan maintaining stringent quality controls.

Product Description

Murata BLM18EG601SH1D chip ferrite bead is a surface-mount device designed to suppress EMI and RFI in electronic circuits. This 0603 package device measures 1.6 mm in length and 0.8 mm in both height and depth, making it ideal for compact PCB layouts commonly found in automotive and electronic applications.

Featuring 600 Ω impedance at 100 MHz and 700 Ω at 1 GHz, it effectively reduces high-frequency noise without distorting signal waveforms. The bead supports a current rating of 500 mA and operates reliably over a temperature range from -55°C to 125°C, complying with the rigorous AEC-Q200 automotive qualification standards.

The ferrite material construction and nickel barrier external electrodes provide excellent durability and solder heat resistance during assembly. The device does not require a ground connection, simplifying circuit design while maintaining performance in unstable ground environments.

This chip ferrite bead is suitable for various industrial sectors including automotive electronics, telecommunications, consumer electronics, and general EMI suppression applications. It ensures signal integrity while protecting sensitive components from electromagnetic interference.

Designed for surface-mount technology with a 0603 package size. Provides 600 Ω impedance at 100 MHz and 700 Ω impedance at 1 GHz for effective noise attenuation. Supports a current rating of 500 mA suitable for automotive and general applications.

Constructed using high-quality ferrite material ensuring durability and performance. Nickel barrier external electrodes deliver excellent solder heat resistance. Complies with AEC-Q200 automotive standards ensuring reliability in demanding environments.

Compact size with 1.6 mm length, 0.8 mm height, and 0.8 mm depth supports high-density circuit designs. Manufactured in Japan maintaining stringent quality controls. Explore our wide range of electronic components including Ferrite Beads for enhanced electromagnetic compatibility and reliable circuit operation on EnvMart.
