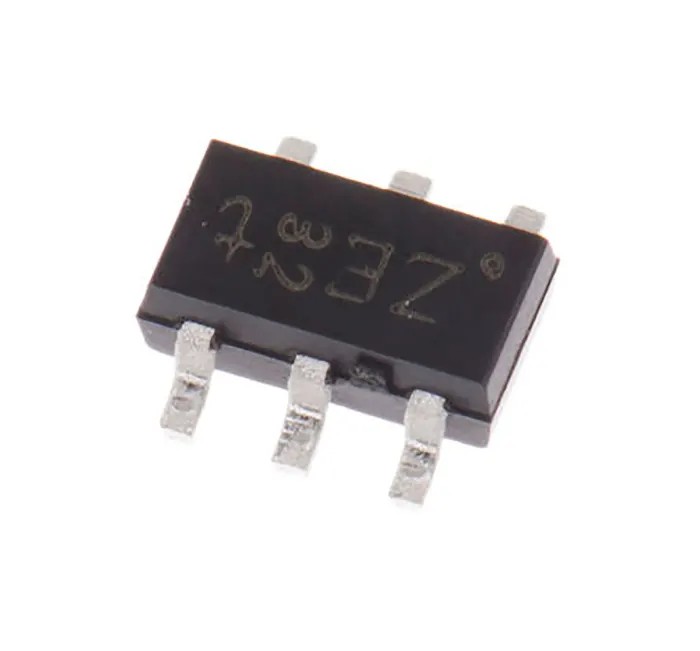

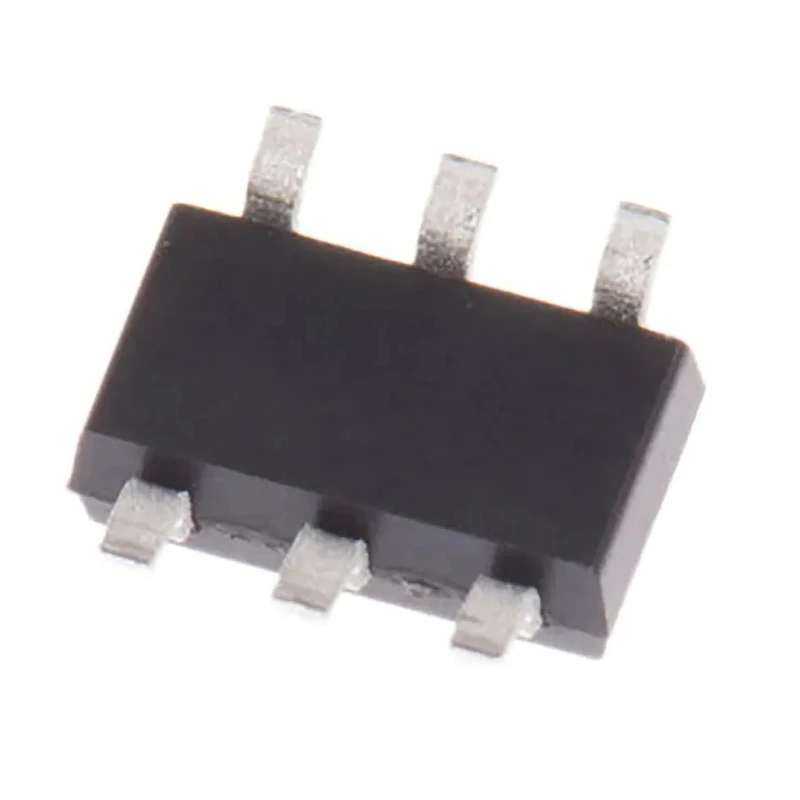

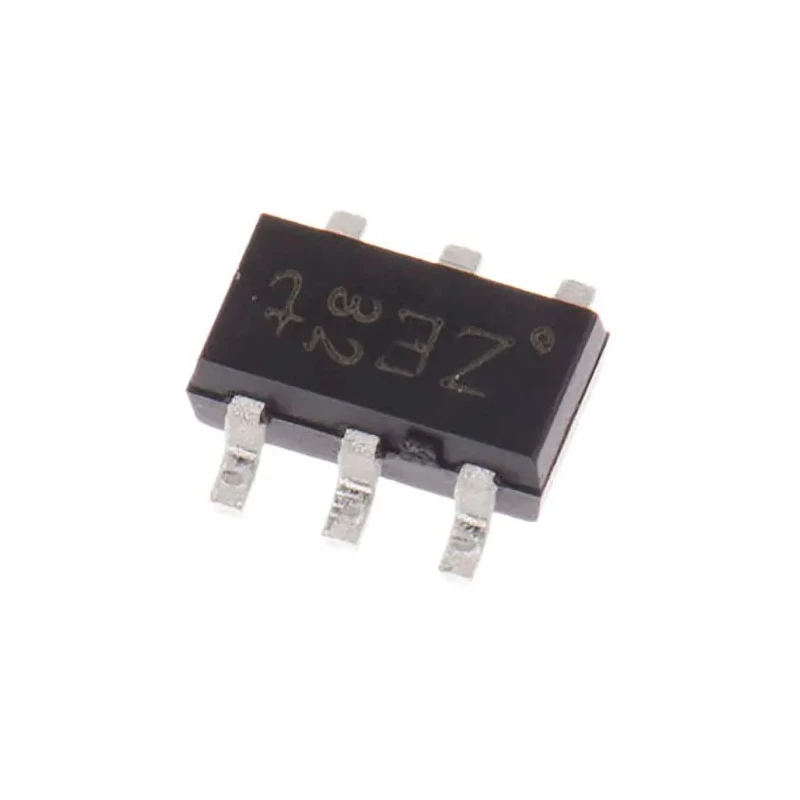

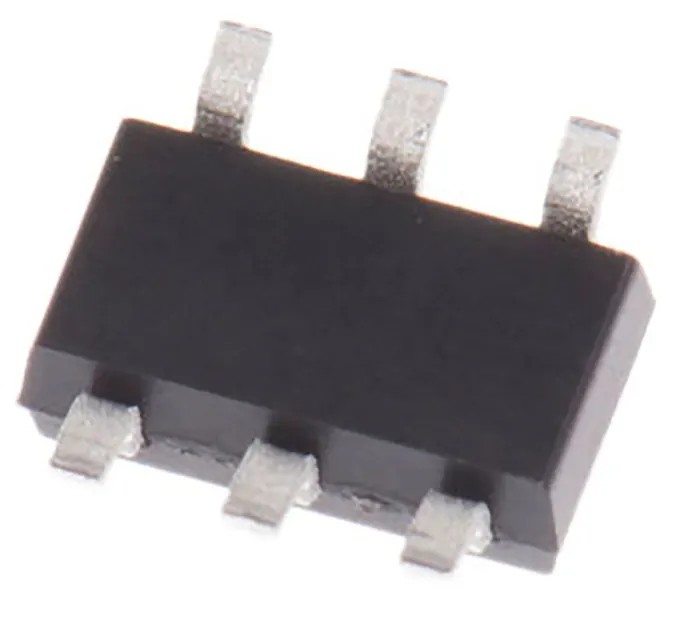

ROHM High Side Power Switch IC 6-Pin SSOP 0.67W Power Rating BD2242G-GTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Length | 2.9mm |
| Model | BD2242G-GTR |
| Width | 2.8mm |
| Mount Type | Surface |
| Number of inputs | 1 |
| Series | BD2242G |
| Power Rating | 0.67W |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Operating Current | 168μA |
| Number of outputs | 1 |
| Pin Count | 6 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.8V |
| Switch On Resistance RdsOn | 89mΩ |
Key Features
- Includes one output and one input for power switching.
- Switch on resistance (RdsOn) of 89 milliohms ensures efficient operation.
- Operates within a voltage supply range of 2.8V to 5.5V.
- Compact dimensions measuring 2.9mm length and 2.8mm width for easy PCB integration.
- Operating temperature ranges from -40°C to 85°C for reliable performance.
- Low operating current of 168 microamps minimizes power consumption.
- 6-pin SSOP surface mount package allows for automated manufacturing.
- Designed for use in industrial, consumer, and manufacturing environments requiring high-side switching.
Product Description
ROHM BD2242G-GTR High Side Power Switch IC is designed for efficient power management in electronic circuits. This power switch IC operates with a supply voltage range of 2.8V to 5.5V and offers a power rating of 0.67W, making it suitable for compact and low power applications.
The device features a switch on resistance of 89 milliohms which helps reduce conduction losses and improve overall system efficiency. It contains a single output and input channel configured for high side power switching, ideal for controlling loads in various industrial and consumer electronics.
This component is housed in a 6-pin SSOP surface mount package with compact dimensions - 2.9mm in length and 2.8mm in width - facilitating integration on modern PCBs with limited space. Its operating temperature range from -40°C to 85°C ensures high reliability under demanding environmental conditions.
Operating current of 168 microamps further reduces power consumption, contributing to energy-efficient designs. This IC does not possess automotive certification but is widely used in industrial, commercial, and consumer electronic applications requiring reliable power switches.
Includes one output and one input for power switching. Switch on resistance (RdsOn) of 89 milliohms ensures efficient operation. Operates within a voltage supply range of 2.8V to 5.5V. Compact dimensions measuring 2.9mm length and 2.8mm width for easy PCB integration.
Operating temperature ranges from -40°C to 85°C for reliable performance. Low operating current of 168 microamps minimizes power consumption. 6-pin SSOP surface mount package allows for automated manufacturing. Designed for use in industrial, consumer, and manufacturing environments requiring high-side switching.
Integrating the ROHM BD2242G-GTR power switch IC in your designs offers reliable, efficient, and compact power switching functionality suitable for diverse electronic applications. Browse the Power Switch IC category at EnvMart for more options in power management solutions.
Explore more products in our Power Switch ICs category.
