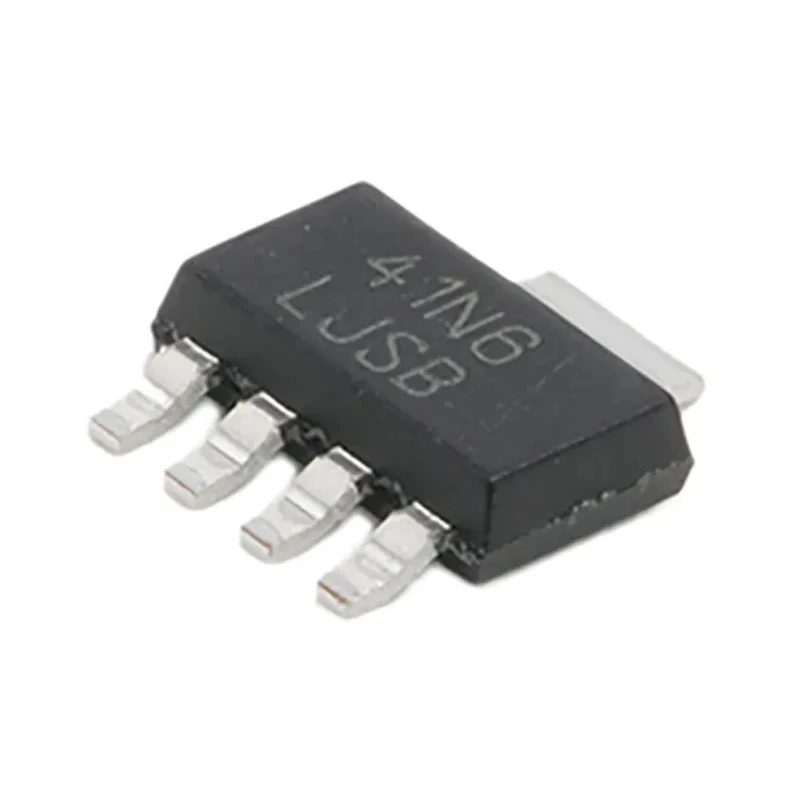

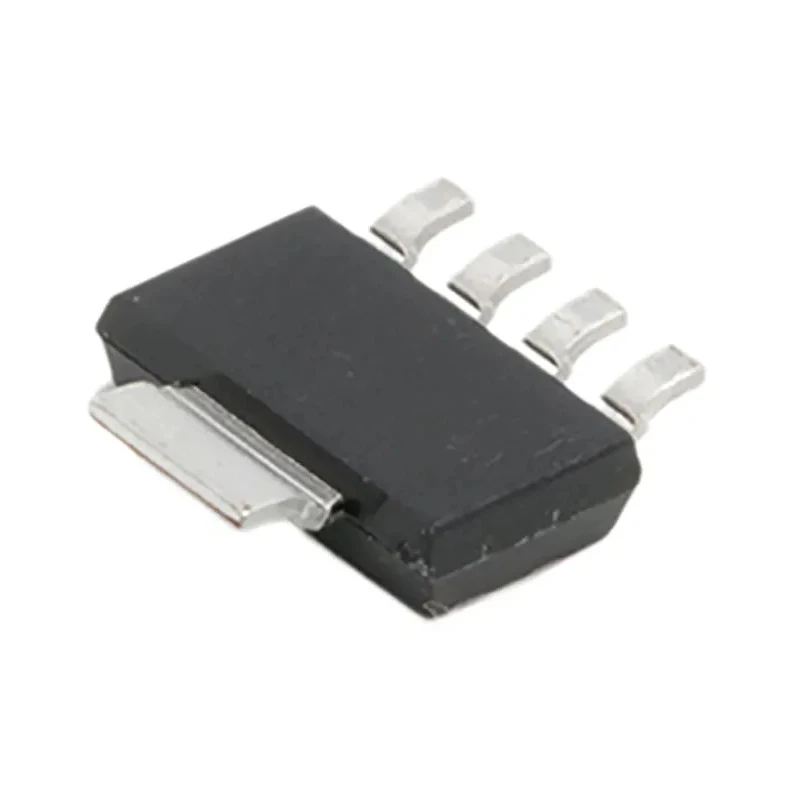

Texas Instruments Low Dropout Linear Voltage Regulator 1A 10V SOT-223 5-Pin LP38692MP-3.3/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Texas Instruments, Voltage Regulator 10V SOT-223 5-Pin RS Stock No |
| Brand | Texas Instruments |
| Height | 1.6mm |
| Length | 6.5mm |
| Model | LP38692MP-3.3/NOPB |
| Width | 3.56mm |
| Mount Type | Surface |
| Series | LP38692 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-223 |
| Polarity | Positive |
| Maximum Input Voltage | 10V |
| Quiescent Current | 1μA |
| Minimum Input Voltage | 2.7V |
| Pin Count | 5 |
Key Features
- Operates with a maximum input voltage of 10V and minimum input voltage of 2.7V.
- Supplies up to 1 ampere output current with low quiescent current of 1 microampere.
- Compact SOT-223 packaging with 5 pins suitable for surface mounting.
- Designed for positive voltage regulation with maximum operating temperature of 125°C.
- Complies with industrial standard LP38692 series for reliable performance.
- Ideal for power management applications requiring low dropout linear regulation with high PSRR.
Product Description
Texas Instruments LP38692MP-3.3/NOPB is a low dropout (LDO) linear voltage regulator providing stable and efficient voltage regulation with a maximum load current of 1 ampere. It is packaged in a compact SOT-223 5-pin surface mount device designed for easy integration in electronic circuits.
The regulator operates within an input voltage range of 2.7V to 10V and is optimized for applications needing positive voltage regulation with very low dropout voltage, making it suitable for battery-powered systems and other portable devices. Its low quiescent current of just 1 microampere helps reduce overall power consumption and improves system efficiency.
Its compact dimensions of 6.5mm by 3.56mm by 1.6mm allow for efficient PCB real estate usage, while the device's maximum operating temperature of 125°C meets industrial standards for robust operation under challenging conditions.
The LP38692 series from Texas Instruments is known for excellent line voltage regulation, low output noise, and high Power Supply Rejection Ratio (PSRR), making it ideal for sensitive and precision electronics requiring clean regulated voltages.
Typical uses include power management in consumer electronics, industrial automation, and embedded systems where reliable, low noise voltage regulation is critical. Operates with a maximum input voltage of 10V and minimum input voltage of 2.7V.
Supports 1A output current with ultra-low quiescent current. Packaged in compact SOT-223 5-pin surface mount form factor. Industrial-grade maximum operating temperature rated at 125°C. Optimized for low dropout voltage performance and high PSRR.
Discover more products in the Voltage Regulator category at EnvMart for all your power management needs.
Explore more products in our Voltage Regulator IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 10V.
It supplies up to 1 ampere output current.
This model has dimensions of 6.5mm in length, 3.56mm in width, and 1.6mm in height.
The minimum input voltage is 2.7V.
It has a low quiescent current of just 1 microampere.
The maximum operating temperature is rated at 125°C.
This model features a 5-pin configuration.
It is packaged in a compact SOT-223 surface mount type.
It is optimized for power management applications requiring low dropout linear regulation and high PSRR, suitable for consumer electronics and embedded systems.
This model is part of the LP38692 series from Texas Instruments.
It supports positive voltage regulation.
Yes, it is optimized for applications needing very low dropout voltage, making it suitable for battery-powered systems.
