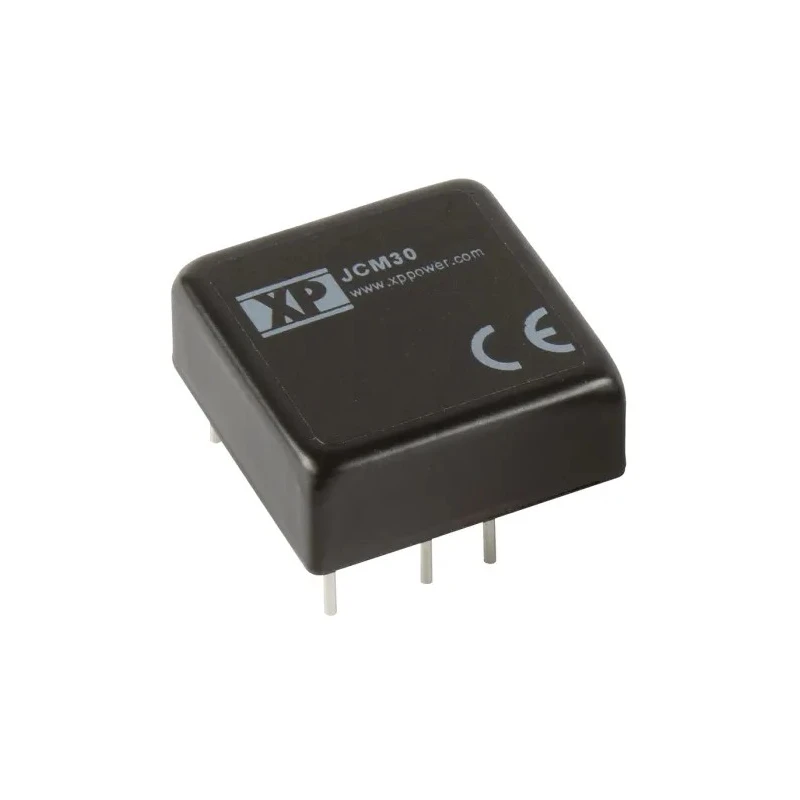

XP Power Isolated DC/DC Converter Through Hole 18V dc Input 9V Input 15 V +15 V Output 1 A 30W JCM30
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCM30 DC/DC Converter, 15V, -15 V/ 1 A, 1 |
| Brand | XP Power |
| Efficiency | 90% |
| Length | 25.4mm |
| Model | JCM30 |
| Depth | 10.4mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JCM30 |
| Maximum Operating Temperature | 105°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 370000h |
| Number of outputs | 2 |
| Maximum Output Power | 30W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 15, -15V |
| Output Current 1 | 1A |
| Output Voltage Adjustment Range | ±14.85 V dc, ±15.15 V dc |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- This through-hole mounted converter operates with input voltages from 9 V to 18 V DC.
- It features a compact DIP package measuring 25.4 mm by 25.4 mm with a depth of 10.4 mm.
- The device offers high isolation voltage of 1.6 kV DC for safety and noise reduction.
- Designed for reliable operation between -40 °C and 105 °C ambient temperatures.
- The converter achieves an efficiency of 90% ensuring energy-efficient performance.
- It provides an output voltage adjustment range of ±14.85 V DC to ±15.15 V DC.
- Rated MTBF is 370,000 hours indicating long-term reliability.
- Suitable for industrial and electronic applications requiring isolated dual voltage outputs.
Product Description
XP Power JCM3012D15 DC/DC Converter is an isolated dual output power converter designed for electronic and industrial applications requiring stable ±15 V outputs at 1 A current with 30 W maximum power. This converter supports a wide input range of 9 V to 18 V DC and features through-hole mounting in a compact DIP package of 25.4 mm length and width and 10.4 mm depth, allowing easy PCB integration.
It provides isolation voltage up to 1.6 kV DC, enhancing safety and minimizing electrical noise. Operating temperatures range from -40 °C to 105 °C, suitable for harsh environmental conditions. With 90% efficiency and a high MTBF of 370,000 hours, this module ensures reliable and energy-efficient performance over long service life.
The output voltage can be precisely adjusted within ±14.85 V DC to ±15.15 V DC to meet specific application requirements. This makes it ideal for use in power supply systems, instrumentation, industrial control equipment, and telecommunications hardware where dual isolated voltages are needed.
This converter integrates easily into through-hole PCB designs. The unit's compact size helps save board space in tight installations. Extensive temperature rating ensures stable operation in diverse climates. High isolation voltage protects against voltage surges and cross-talk.
Adjustable output voltage allows customization for various electronic circuits. Robust construction gives high reliability and long operational life. Energy-efficient design minimizes heat generation and power loss.
XP Power’s JCM30 series converters are widely used in industrial systems, laboratory instrumentation, telecommunications, and embedded electronics requiring safe and reliable dual voltage power outputs. Browse the Electronics & Electricals category at EnvMart for more DC/DC Converters from trusted manufacturers like XP Power.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 9 V to 18 V DC.
It provides dual output voltages of ±15 V DC with a maximum output current of 1 A.
The converter achieves an efficiency of 90%.
The isolation voltage of this model is 1.6 kV DC, which enhances safety and reduces electrical noise.
It has a compact DIP package measuring 25.4 mm in length and width, with a depth of 10.4 mm.
This converter operates reliably in ambient temperatures ranging from -40 °C to 105 °C.
The rated Mean Time Between Failures (MTBF) for this unit is 370,000 hours, indicating long-term reliability.
This model features through-hole mounting, allowing for easy integration into PCB designs.
Yes, the output voltage can be adjusted within a range of ±14.85 V DC to ±15.15 V DC.
It is suitable for industrial and electronic applications requiring stable dual voltage outputs, such as power supply systems and telecommunications hardware.
The converter comes in a DIP package type, which is compact and suitable for through-hole mounting.
The maximum output power for this model is 30 W.
