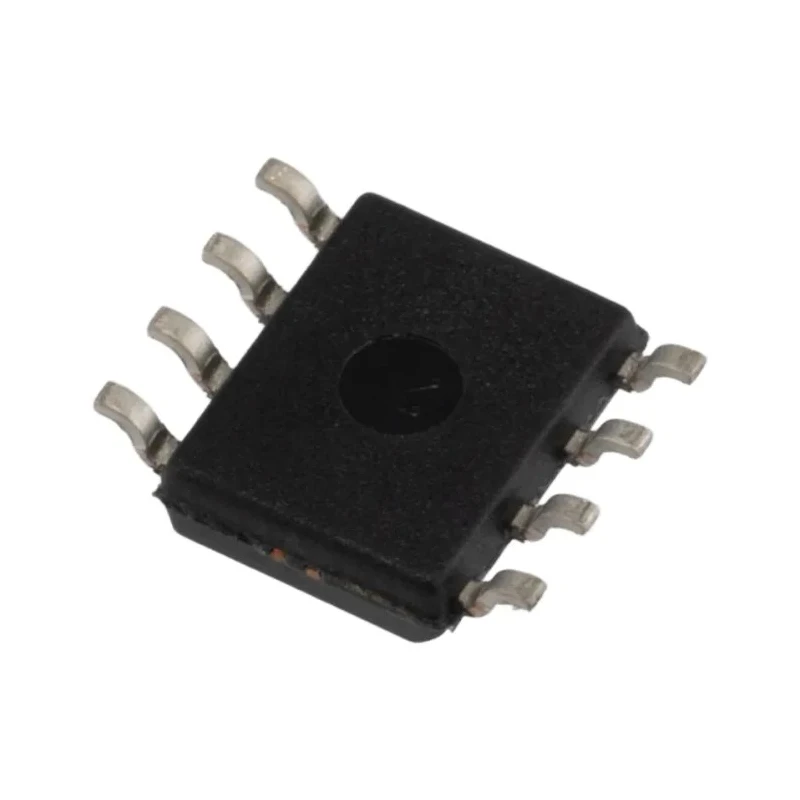

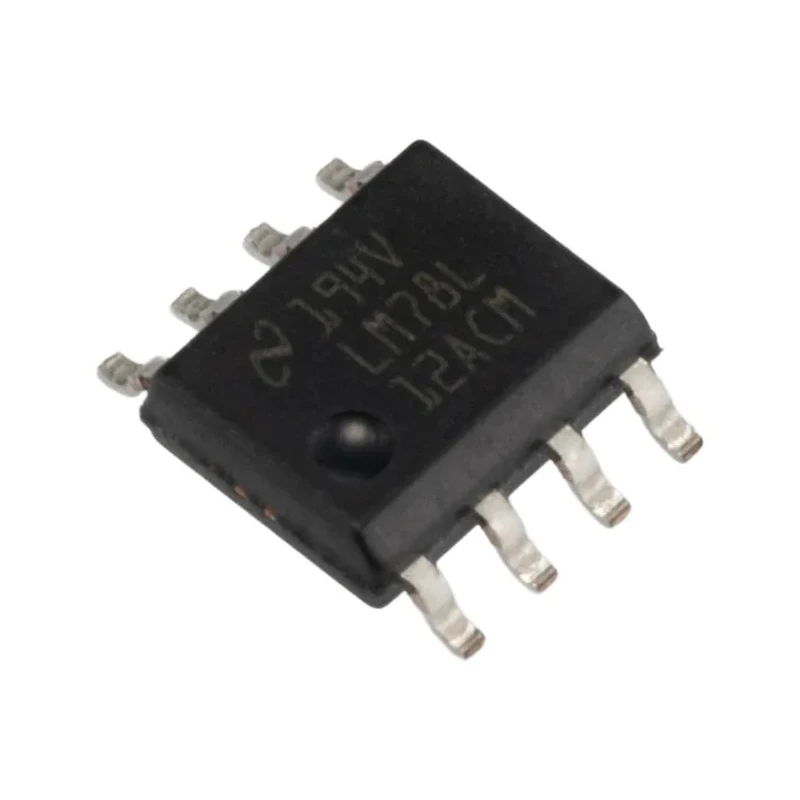

Texas Instruments Voltage Regulator 0.75 W 35V SOIC 8-Pin LM78L12ACM/NOPB

Texas Instruments LM78L12ACM/NOPB is a high-performance linear voltage regulator designed for fixed output voltage applications. Featuring a power rating of 0.75 watts and an input voltage range supporting up to 35 volts, this device ensures reliable voltage regulation in compact SOIC 8-pin surface mount packaging.

With a positive polarity output and quiescent current of 3mA, the regulator efficiently supports a variety of electronic circuits, ranging from power management ICs to industrial control systems. The package integrates internal thermal shutdown, current limiting, and output transistor safe-area compensation, safeguarding the device against operational faults and prolonged high temperature conditions.

This voltage regulator requires no external components for standard operation, allowing for simplified PCB designs in electronics manufacturing and rapid prototyping environments. The LM78L12ACM/NOPB is part of the renowned LM78Lxx series known for stable fixed voltage outputs with output current ratings around 100mA.

Applications include local on-card regulation, embedded power supplies, and power distribution management in industrial automation, instrumentation, and consumer electronics. The device operates with positive polarity suitable for various electronic circuits.

It has a quiescent current of 3mA ensuring low power consumption. The SOIC package supports surface mount technology with an 8-pin configuration. The regulator has a maximum operating temperature of 125°C for reliable performance under thermal stress.

It features internal thermal shutdown, current limiting, and output transistor safe area compensation. No external components are required, simplifying circuit design and reducing footprint. This model belongs to the LM78Lxx series designed for fixed voltage regulation.

It supports a minimum input voltage of 13.7V and a maximum input voltage of 35V.
