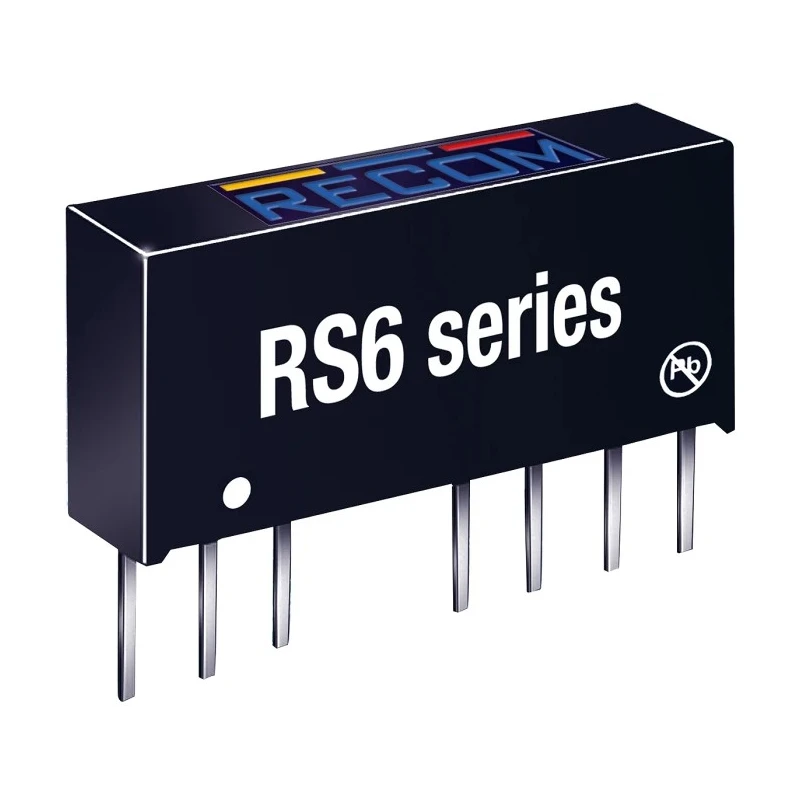

Recom DC/DC Converter 5V DC 1.2A 18-36V Input 6W Through Hole SIP Package RS6-2405S

Recom RS6-2405S is a DC/DC Converter designed to provide a regulated 5V DC output at 1.2A current from a wide DC input voltage range of 18V to 36V. It belongs to the RS6 Series known for high power density and wide input voltage tolerance, making it ideal for demanding industrial and measurement applications.

This converter features a through-hole SIP package, compact footprint of 21.8mm length, 9.2mm width, and 11.1mm depth, suitable for embedded circuit boards with space constraints. The device supports an isolation voltage of 1.6 kV DC, which enhances electrical safety and reduces interference in sensitive electronic circuits.

Operating efficiently at 87%, the RS6-2405S minimizes power losses, supported by a robust operating temperature range from -40°C to 75°C, suitable for harsh environmental conditions. The high mean time between failures (MTBF) of approximately 1.78 million hours ensures reliability in continuous industrial use.

This DC/DC Converter is well-suited for industrial, laboratory, test and measurement, and power supply applications requiring isolated and efficient voltage conversion. It also complies with relevant safety standards though it lacks formal approvals.

Maximum output power is 6 watts for compact power supply needs. Through-hole SIP package with 8 pins eases PCB integration. Wide input voltage from 18V to 36V supports power source flexibility. Isolation voltage of 1.6kV DC enhances noise immunity and safety.

87% efficiency reduces operational heat dissipation. Operating temperature range from -40°C to 75°C for industrial environments. MTBF of 1,776,000 hours ensures reliability in extended use. Compact dimensions suited for high density power systems.
