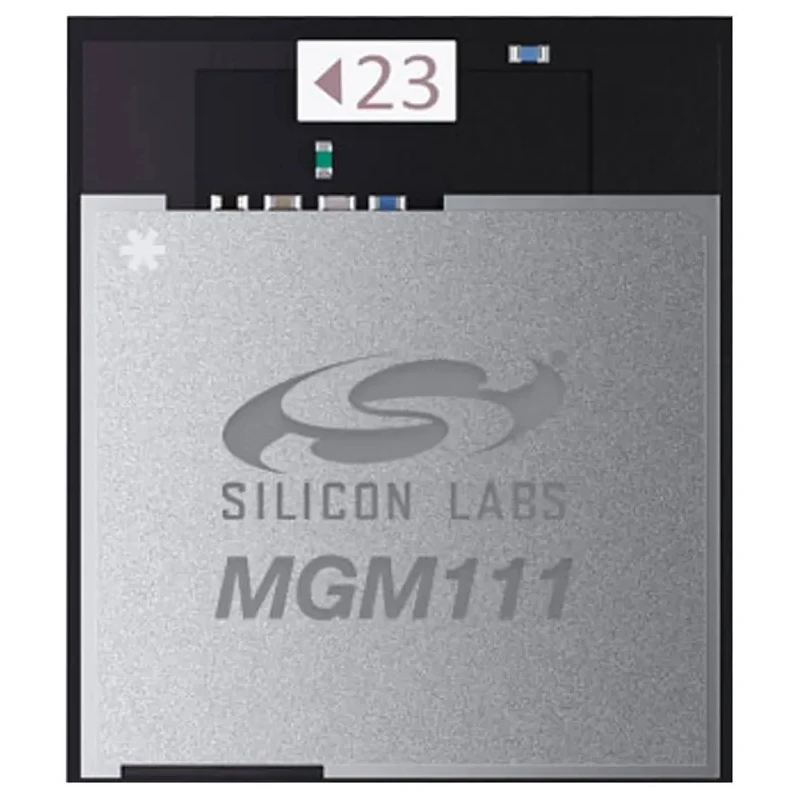

Silicon Labs ZigBee Module, 10 dBm, 250 kbps, 2.4 GHz Wireless Communication MGM111A256V2

Free Delivery in India | Lowest Global Shipping Charges

Silicon Labs ZigBee Module, 10 dBm, 250 kbps, 2.4 GHz Wireless Communication MGM111A256V2

Name: Silicon Labs ZigBee Module, 10 dBm, 250 kbps, 2.4 GHz Wireless Communication MGM111A256V2
Brand: Silicon Labs
SKU: 194827



Category Semiconductors Brand Silicon Labs Condition New

Specifications

Country of Origin	India
Frequency	2.4GHz
Brand	Silicon Labs
Height	2.2mm
Length	15mm
Model	MGM111A256V2
Width	12.9mm
Series	MGM111
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Receiver Sensitivity	-99dBm
Minimum Supply Voltage	1.85V
Protocol Type	ZigBee

Key Features

Operates in 2.4 GHz frequency band suitable for IEEE 802.15.4 standards.
Includes EFR32 Mighty Gecko SoC with 40 MHz ARM Cortex-M4F core for efficient processing.
Supports ZigBee and Thread mesh networking protocols for connected home and industrial applications.
Compact dimensions of 15 mm length, 12.9 mm width, and 2.2 mm height enable flexible design integration.
Wide operating temperature range from -40°C to +85°C for reliable performance in harsh environments.
Receiver sensitivity of -99 dBm ensures robust wireless signal reception.
Includes hardware cryptographic accelerator for secure communication with AES-128/256 and ECC.
Multiple interfaces including UART, SPI, I2C, and GPIO pins enable versatile connectivity.

Product Description

Silicon Labs MGM111A256V2 ZigBee Module is a fully-certified wireless communication module designed for rapid deployment of wireless mesh networks using ZigBee and Thread protocols. Operating at 2.4 GHz with a maximum output power of 10 dBm and data rate up to 250 kbps, this module integrates the EFR32 Mighty Gecko SoC featuring a 40 MHz ARM Cortex-M4F core, 256 KB flash memory, and 32 KB SRAM.

Designed for industrial and commercial applications, it supports a robust receiver sensitivity of -99 dBm, enhancing communication reliability in smart home, building automation, lighting, security, monitoring, smart grid metering, and IoT environments. The module offers integrated hardware cryptography for AES-128/256 and ECC, providing high levels of security.

Its compact form factor measures 15 mm in length, 12.9 mm in width, and 2.2 mm in height with an operating temperature range from -40°C to +85°C, making it suitable for deployment in harsh environmental conditions. The module supports multiple interfaces including UART, SPI, I2C, low energy UART, and up to 25 GPIO pins for easy integration.

Additional features include Packet Trace Interface (PTI) for non-intrusive packet tracing during development, a true random number generator for cryptographic purposes, and a chip antenna included for compact designs.

Operates at 2.4 GHz frequency and 10 dBm output power. Supports ZigBee and Thread wireless mesh protocols. Embedded ARM Cortex-M4F 40 MHz MCU with 256 KB Flash and 32 KB SRAM. Wide operating temperature range -40°C to +85°C.

Multiple communication interfaces: UART, SPI, I2C, LEUART. Hardware security accelerators for AES, ECC, SHA-based cryptography. Highly sensitive receiver with -99 dBm sensitivity. Compact dimensions of 12.9 x 15.0 x 2.2 mm.

This module is ideal for applications in connected home automation, industrial automation, smart lighting, security systems, and IoT communications. It combines low power consumption with advanced features to enable effective wireless networking solutions. Explore Silicon Labs products and related communication modules on EnvMart.
