Lumberg 314 4 Pole Straight M16 DIN Plug 5A 250V AC IP68 Threaded Wall Mount Male 0314 04

Free Delivery in India | Lowest Global Shipping Charges

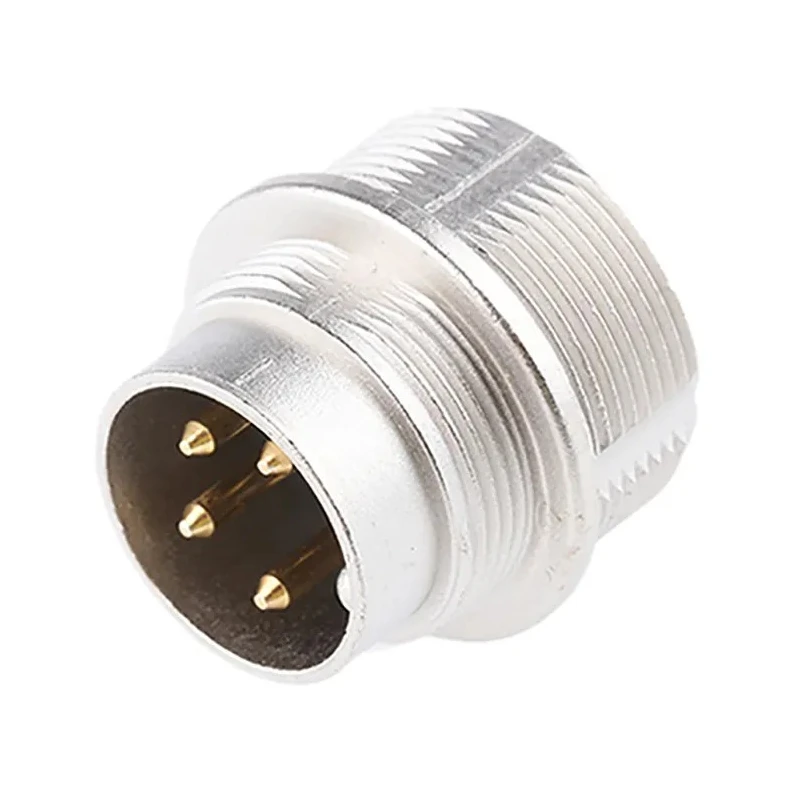

Lumberg 314 4 Pole Straight M16 DIN Plug 5A 250V AC IP68 Threaded Wall Mount Male 0314 04

Name: Lumberg 314 4 Pole Straight M16 DIN Plug 5A 250V AC IP68 Threaded Wall Mount Male 0314 04
Brand: LUMBERG
SKU: 194789
Price: 8.6 USD
Availability: InStock



Category DIN Plug Brand LUMBERG Condition New

Specifications

Country of Origin	India
Voltage	250V ac
Brand	Lumberg
Orientation	Straight
Current	5A
Model	0314 04
IP Rating	IP68
Mount Type	Wall Mount
Housing Material	Die Cast Zinc
Contact Material	Brass
Series	314
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Pole Format	4
Contact Plating	Gold over Silver
Number of Contacts	4
Contact Gender	Male
Connector Gender	Male
Mating Type	Threaded
Connector Size	M16
DIN Number	DIN EN 60529

Key Features

Supports 5A current at 250V AC for moderate power applications.
Features a threaded, wall mount male connector for secure installation.
Rated IP68 for dust tight and protection against long-term water immersion.
Constructed with die cast zinc housing and brass contacts plated with gold over silver for durability and conductivity.
Operates in temperatures from -40°C to 85°C for a wide range of environments.
Compatible with DIN EN 60529 standard ensuring proper ingress protection.
Includes solder termination for reliable contact connection.
4 pole format supports multiple circuit connections in one plug.

Product Description

Lumberg 0314 04 4 Pole Straight M16 DIN Plug is a high-quality electrical connector designed for robust and reliable connections in industrial, automation, control engineering, and medical instrumentation applications. It supports a current rating of 5A at 250V AC and features a threaded connection suitable for wall mount installation.

The plug boasts an IP68 rating according to DIN EN 60529, ensuring it is dust tight and can withstand prolonged immersion in water, making it suitable for harsh environmental conditions. The housing material is die cast zinc, providing mechanical strength and corrosion resistance.

Contacts are made of brass and plated with gold over silver to optimize conductivity and resist corrosion. The connector’s solder termination type ensures secure and stable electrical contact, while the 4 pole format allows multiple circuit pathways through a single plug.

Operating within a temperature range of -40°C to 85°C, this plug is versatile enough for demanding industrial settings. The straight orientation and M16 connector size facilitate compatibility and ease of installation.

Supports 5A current at 250V AC for moderate power applications. Threaded wall mount male connection provides secure attachment. Die cast zinc housing ensures durability and corrosion resistance. Brass contacts plated with gold over silver improve conductivity.

IP68 rated for dust tight and water immersion protection. Wide operating temperature range from -40°C to 85°C. Solder termination ensures reliable contact stability. 4 pole configuration supports multiple circuit connections.

This DIN Plug is suitable for control engineering systems, automation equipment, and medical instruments requiring robust and sealed electrical connectors. Explore more DIN connectors in the Electronics & Electricals category at EnvMart for comprehensive solutions.
