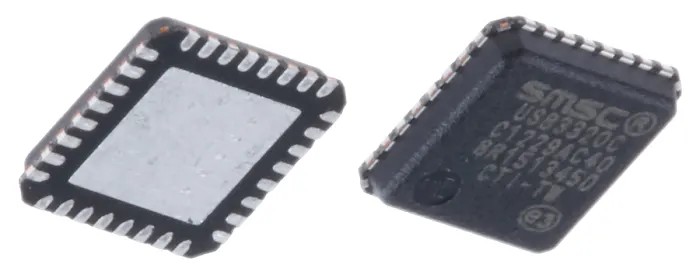

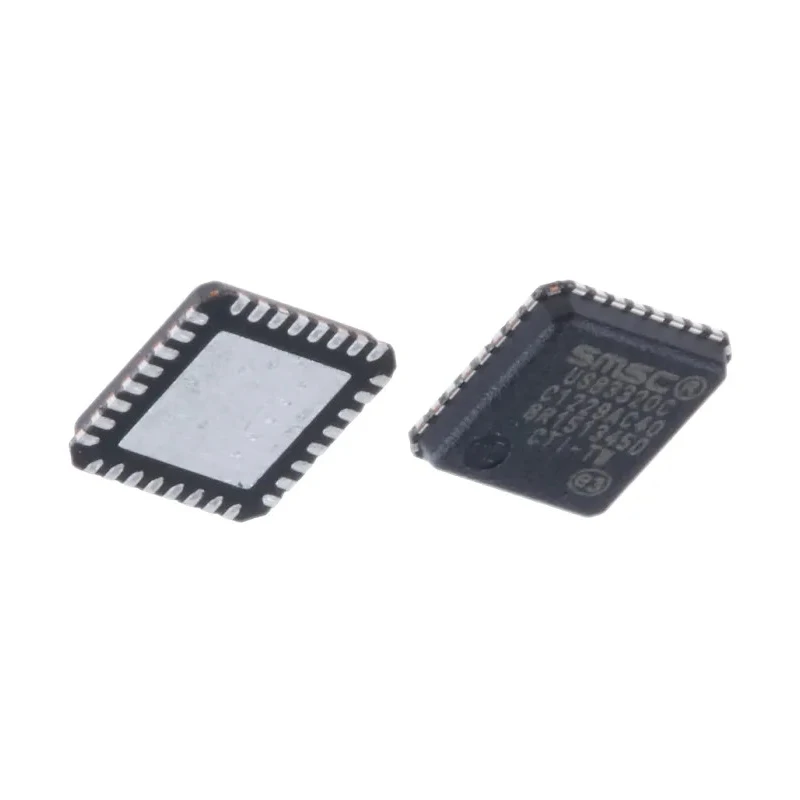

Microchip Transceiver IC USB 2.0 1-Channel 480 Mbps 1.8V to 3.3V 32-Pin QFN USB3320C-EZK

Free Delivery in India | Lowest Global Shipping Charges

Microchip Transceiver IC USB 2.0 1-Channel 480 Mbps 1.8V to 3.3V 32-Pin QFN USB3320C-EZK

Name: Microchip Transceiver IC USB 2.0 1-Channel 480 Mbps 1.8V to 3.3V 32-Pin QFN USB3320C-EZK
Brand: Microchip
SKU: 219523
Price: 4.37 USD
Availability: InStock



Category USB Interface IC Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	900μm
Length	5.15mm
Model	USB3320C-EZK
Mount Type	Surface
Series	USB3320
Maximum Operating Temperature	85°C
Package Type	QFN
Sub Type	Transceiver
Minimum Operating Temperature	-40°C
Pin Count	32
Maximum Supply Voltage	3.3V
Minimum Supply Voltage	1.8V
Maximum Data Rate	480Mbps
Number of Transceivers	1
USB Specification	USB 2.0
Supported Protocols	USB 2.0

Key Features

Operates from a dual supply voltage range of 1.8V to 3.3V.
Encapsulated in a compact 32-Pin QFN package for surface mounting.
Supports robust ESD protection ensuring device reliability.
Designed for applications requiring USB 2.0 protocol compliance.
Operates within a temperature range of -40°C to 85°C suitable for industrial environments.
Physical dimensions include a height of 900μm and a length of 5.15mm.
Compatible with ULPI interface and part of the USB3320 series.
Ideal for integration in electronic systems requiring USB transceiver functionality.

Product Description

Microchip USB3320C-EZK Transceiver IC is a USB 2.0 high-speed interface component designed to support a single channel at data rates up to 480 Mbps. Operating with dual supply voltages ranging from 1.8V to 3.3V, this transceiver IC is suitable for diverse electronic applications requiring robust USB communication.

This device comes in a 32-pin QFN surface mount package, offering a compact form factor compatible with modern PCB designs. It includes enhanced ESD protection, which ensures durability and reliability in demanding industrial, laboratory, and commercial electronic environments.

The operating temperature range from -40°C to 85°C demonstrates its suitability for harsh environments, making it an excellent choice for manufacturing and embedded system applications. Its physical dimensions, such as a height of 900 micrometers and a length of 5.15 millimeters, enable easy integration into space-constrained designs.

Part of the USB3320 series, the USB3320C-EZK supports USB 2.0 protocol and ULPI interface standards, facilitating seamless communication and control between USB hosts and peripherals. This transceiver is ideal for use in USB Interface IC applications including data acquisition systems, communication modules, and electronic device interfaces.

Whether utilized in industrial automation, data transfer systems, or consumer electronics manufacturing, the USB3320C-EZK provides reliable and high-performance USB connectivity. The surface mount technology ensures efficient assembly and optimal performance on printed circuit boards.

Operates over voltage specifications of 1.8V to 3.3V for flexibility in design. Supports single channel communication at 480 Mbps maximum data rate. Package designed as 32-pin QFN for compactness and thermal efficiency. Compliant with USB 2.0 standard ensuring broad compatibility.

Robust ESD protection enhances device longevity in various environments. Explore the complete range of USB Interface ICs on EnvMart to find complementary components and development tools suitable for your technical requirements.
