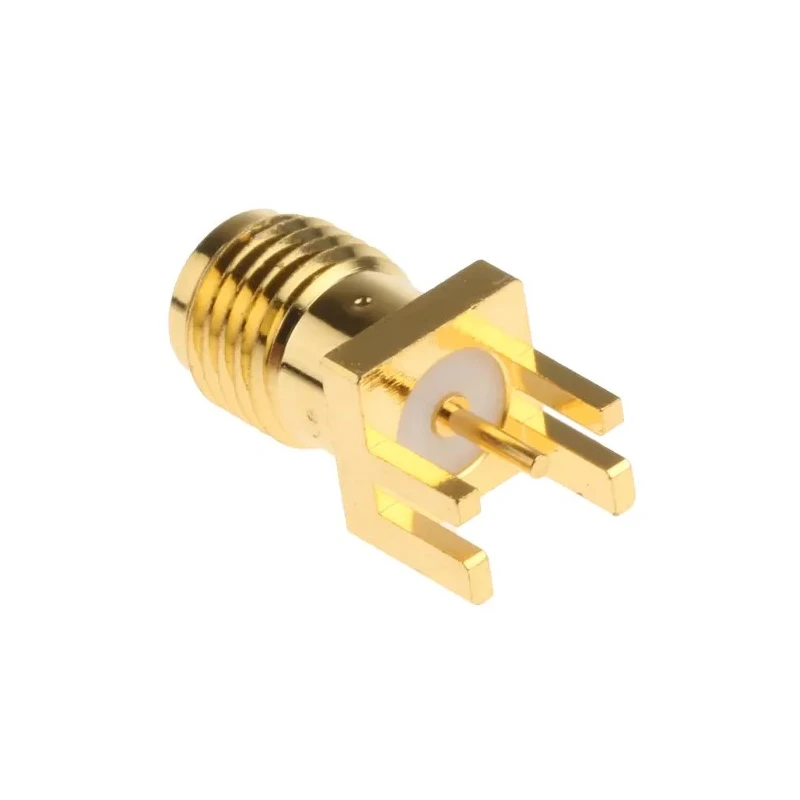

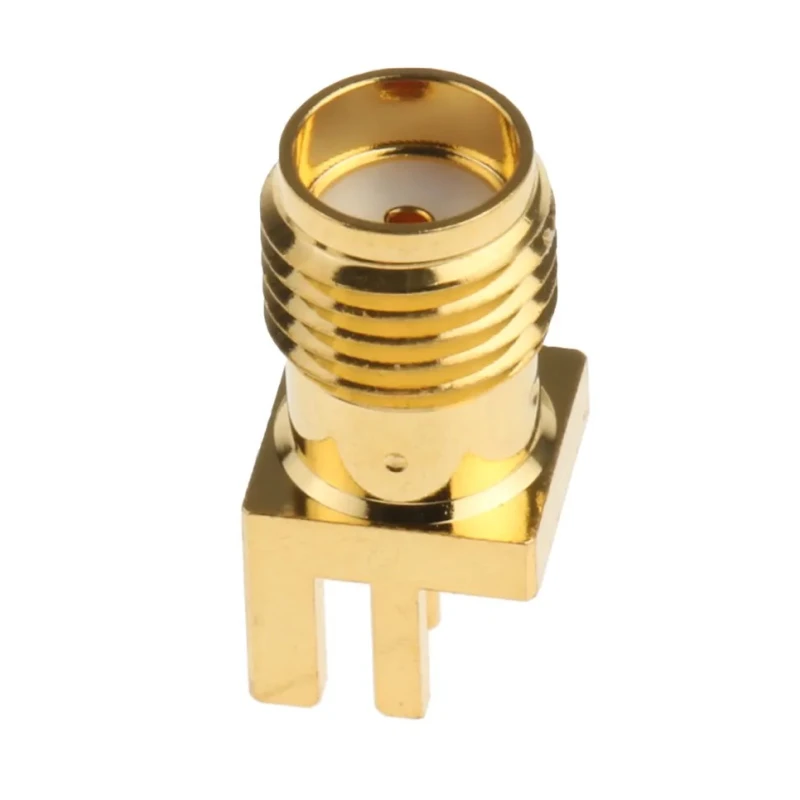

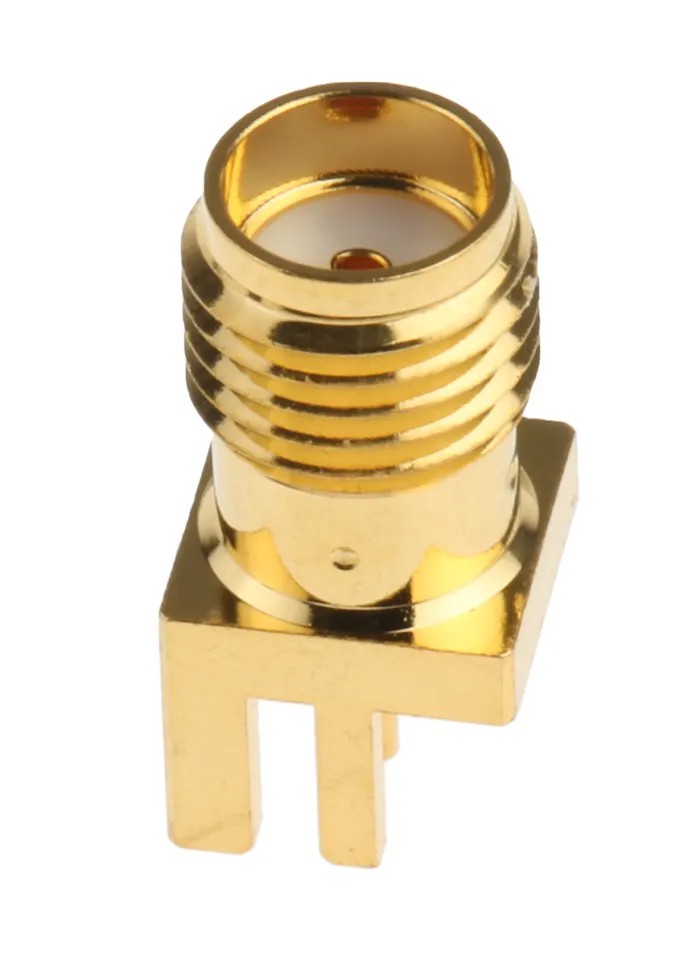

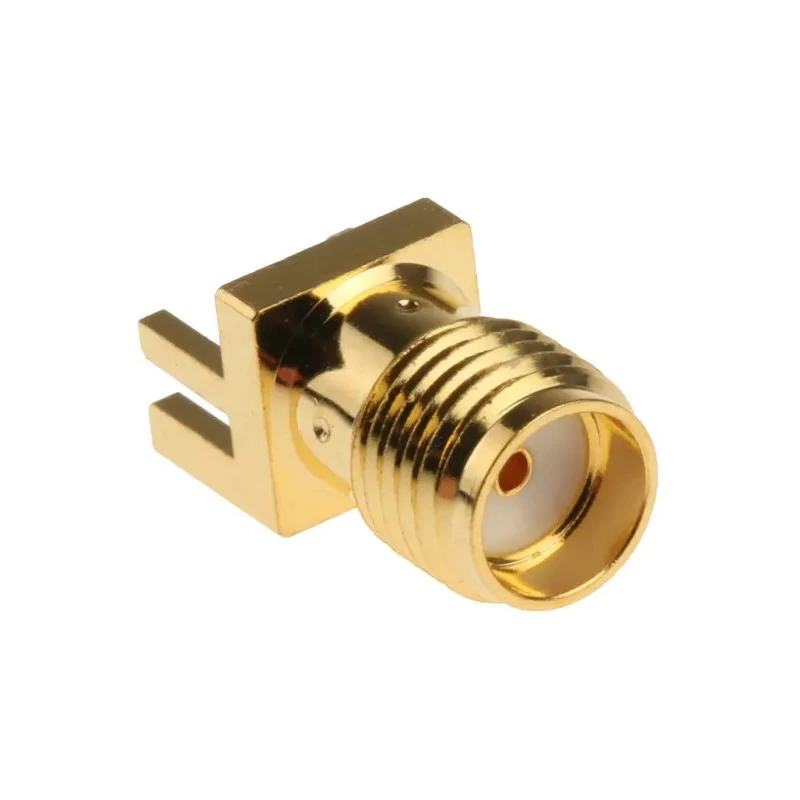

RS PRO Coaxial Connector Edge Female SMA, 50 Ω, Straight Body, Gold Plated, Solder Termination 526-5791
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Subminiature |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 526-5791 |
| Mount Type | Edge |
| Operating Frequency | 18GHz |
| Contact Material | Beryllium Copper |
| Series | RS PRO |
| Termination Type | Solder |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Gold |
| RS PRO Coaxial Connector Edge Female SMA, 50 Ω, Straight Body SolderBrand | RS PRO |
| Midwest Microwave International Ltd, jack Through Hole, Solder TerminationBrand | NEUTRAL |
| LPRS, jack PCB Mount, 50Ω, Solder Termination, Straight BodyBrand | LPRS |
Key Features
- This SMA edge mount connector features gold plated beryllium copper contacts ensuring superior signal performance.
- It operates with a frequency range from DC up to 18 GHz suitable for high-frequency transmission.
- The connector has a solder termination type and normal polarity for secure soldered connections.
- The body plating is gold, providing corrosion resistance and excellent conductivity.
- Designed to be mounted on the edge of printed circuit boards with a 6.35 x 6.35 mm footprint accepting 1.2 mm PCB thickness.
- Ideal for use in Wi-Fi antenna systems and board-to-board applications requiring durable RF connections.
Product Description
RS PRO 526-5791 Coaxial Connector Edge Female SMA, 50 Ω, Straight Body with Gold Plated Contacts is a premium RF Coaxial Connector designed for demanding industrial and electronic applications. This SMA connector offers a robust and reliable solution for high frequency signals ranging from DC to 18 GHz, ensuring signal integrity in wireless communications and RF systems.
The connector features an edge mount design allowing efficient mounting on the edge of printed circuit boards, with a compact subminiature size of 6.35 x 6.35 mm. It accepts PCB thickness of 1.2 mm and has a straight body orientation. The solder termination type assures a secure mechanical and electrical bond to the PCB.
The construction includes gold plated beryllium copper contacts and a gold-plated body for enhanced conductivity and resistance to corrosion. A PTFE (Teflon) insulator ensures electrical isolation and stability over a broad temperature range. The normal polarity female connector guarantees compatibility with standard SMA male plugs.
Typical applications include Wi-Fi antenna systems, board-to-board RF connections, test equipment, and communication devices requiring a dependable coaxial interface. Its design supports secure screw-on mating for stable connections in mounting and vibration conditions.
Gold plated body and contacts provide excellent corrosion resistance. Subminiature edge mount for compact PCB designs. Supports DC to 18 GHz frequency range for versatile RF use. Solder termination ensures durable electrical connections.
50 ohm impedance matched to standard RF systems. Female connector with normal polarity for common SMA compatibility.
The product is manufactured in Taiwan, Province Of China, and adheres to high-quality industry standards to deliver reliable performance in industrial, laboratory, telecommunications, and electronic manufacturing environments.
Explore the wide range of RS PRO connectors on EnvMart for more quality electronic components and industrial products tailored to technical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a frequency range from DC up to 18 GHz, making it suitable for high-frequency transmission applications.
It features a solder termination type, ensuring a secure mechanical and electrical bond to the PCB.
The connector has an impedance of 50 Ω, which is standard for RF systems.
The connector has a footprint of 6.35 x 6.35 mm, designed for efficient mounting on printed circuit boards.
The contacts are made from gold plated beryllium copper, and the body is also gold plated for enhanced conductivity and corrosion resistance.
This model has a straight body orientation, suitable for various mounting configurations.
Yes, it features a normal polarity female connector, ensuring compatibility with standard SMA male plugs.
It can accept a PCB thickness of up to 1.2 mm, allowing for versatile mounting options.
Typical applications include Wi-Fi antenna systems, board-to-board RF connections, and communication devices requiring a reliable coaxial interface.
This coaxial connector is manufactured in Taiwan, Province Of China.
The connector uses a PTFE (Teflon) insulator, which ensures electrical isolation and stability over a broad temperature range.
This model is part of the RS PRO series, known for its quality in electronic components.
