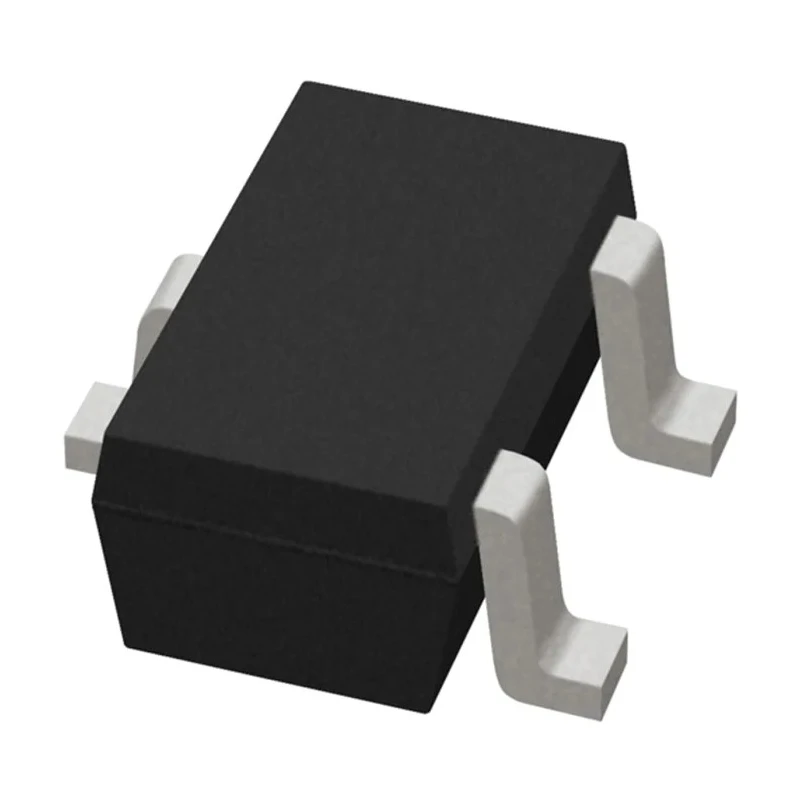

STMicroelectronics 2-Element Bi-Directional TVS Diode, 250 W, 3-Pin SOT-323 ESDCAN02-2BWY
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1mm |
| Length | 1.35mm |
| Model | ESDCAN02-2BWY |
| Width | 2.2mm |
| Mount Type | Surface |
| Series | ESDCANxx-2BWY |
| Maximum Operating Temperature | 175°C |
| Package Type | SOT-323 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Number of Elements per Chip | 2 |
| Clamping Voltage VC | 44V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Complex Array |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 28.5V |
| Maximum Reverse Stand-off Voltage Vwm | 26.5V |
| Peak Pulse Power Dissipation Pppm | 250W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 3.7A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- Provides bidirectional transient voltage suppression suitable for CAN bus protection.
- Features a compact 3-pin SOT-323 surface mount package design.
- Minimum breakdown voltage of 28.5 V with maximum reverse stand-off of 26.5 V.
- Clamping voltage rated at 44 V ensures effective voltage limiting.
- Designed for automotive applications, qualified to AEC-Q101 standards.
- Operates reliably in temperature range from -55°C up to 175°C.
- Fast response time with low leakage current of 50 nA enhances circuit integrity.
- Includes dual element per chip configuration for increased protection capability.
Product Description
STMicroelectronics ESDCAN02-2BWY is a 2-element bi-directional Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronics from voltage transients and electrostatic discharge events. It features a peak pulse power dissipation capability of 250 W and is enclosed in a compact 3-pin SOT-323 surface mount package, making it ideal for automated PCB assembly.
This TVS diode is specially engineered for automotive and industrial applications requiring reliable surge protection on communication lines such as Controller Area Network (CAN) buses. Its bidirectional operation ensures protection against voltage spikes in either polarity, enhancing circuit robustness.
Key electrical parameters include a minimum breakdown voltage of 28.5 V, maximum reverse stand-off voltage of 26.5 V, and a clamping voltage of 44 V, providing effective transient suppression. The device also supports a peak pulse current of 3.7 A.
Designed to operate under harsh conditions, it has an operating temperature range from -55°C to 175°C and complies with the AEC-Q101 automotive quality standard. Its low leakage current of 50 nA helps conserve power during normal operation.
Bidirectional transient voltage suppression for CAN bus and communication lines. Automotive qualified with AEC-Q101 certification. High peak pulse power dissipation of 250 W for surge protection. Compact surface mount SOT-323 package suited for automated assembly.
Operates in extended temperature range -55°C to +175°C. Low leakage current and fast response improve circuit reliability. Dual element configuration enhances protection capability. Peak pulse current rating of 3.7 A supports heavy transient loads.
This TVS diode is ideal for use in automotive electronics, industrial control systems, and any application requiring robust electrostatic and electrical overstress protection. It is a reliable choice for safeguarding CAN bus lines and other data communications lines from transient voltage damage.
Explore additional semiconductor and diode components in the Electronics & Electricals > Semiconductor > TVS Diode category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation capability of the ESDCAN02-2BWY is 250 W, providing effective surge protection.
The minimum breakdown voltage of this diode is 28.5 V, ensuring reliable operation during voltage transients.
The maximum reverse stand-off voltage for the ESDCAN02-2BWY is 26.5 V, which helps protect against overvoltage conditions.
The clamping voltage is rated at 44 V, which provides effective voltage limiting during transient events.
This model operates reliably in a temperature range from -55°C to 175°C, making it suitable for harsh environments.
The ESDCAN02-2BWY is enclosed in a compact 3-pin SOT-323 surface mount package, ideal for automated assembly.
This TVS diode features a dual element configuration per chip, enhancing its protection capability.
The maximum peak pulse current rating for the ESDCAN02-2BWY is 3.7 A, allowing it to handle heavy transient loads.
This model is qualified to the AEC-Q101 automotive standard, ensuring its reliability for automotive applications.
The maximum reverse leakage current for the ESDCAN02-2BWY is 50 nA, which helps conserve power during normal operation.
This TVS diode is designed for automotive electronics and industrial control systems, particularly for protecting CAN bus lines.
The dimensions of the ESDCAN02-2BWY are 1 mm in height, 1.35 mm in length, and 2.2 mm in width.
