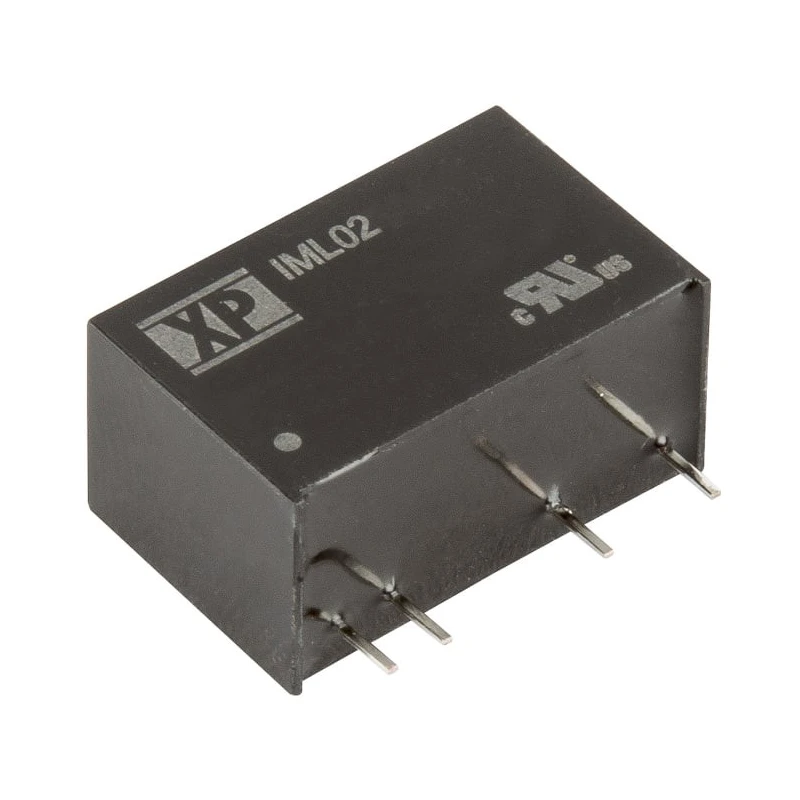

XP Power Isolated DC/DC Converter 5V DC 400mA 13.2V DC Input 10.8V Input 2W SIP7 Through Hole IML02

XP Power IML02 isolated DC/DC converter, model IML0212S05, provides a stable 5V DC output at 400mA current with input voltage ranging from 10.8V to 13.2V DC. It delivers up to 2 watts of output power in a compact SIP7 through-hole package. Designed for use in medical and industrial applications, it offers high reliability and electrical isolation with 4000V AC rating and one MOPP at 250V AC.

This DC/DC converter operates efficiently at 80% efficiency, ensuring effective power conversion during operation. It is built to operate within a temperature range from -40°C to +85°C, providing reliable performance in harsh environments. The package type is SIP with 7 pins, which facilitates easy integration into printed circuit boards.

The unit includes ±5V output voltage adjustment range for fine tuning. It supports a single output channel capable of supplying 400mA current, making it suitable for various low power applications. The mean time between failures (MTBF) is rated at 2,500,000 hours, reflecting its robust design and long operational life.

Wide operating temperature range from -40°C to +85°C enabling use in extreme conditions. Industry-standard 4000 V AC isolation for enhanced safety and reliability. Compact SIP7 through-hole footprint simplifies PCB mounting.

Adjustable output voltage ±5 V allows precise output control. High efficiency of 80% reduces energy losses and heat generation. Long MTBF of 2.5 million hours ensures dependable operation. Single output configuration with 400mA maximum current.

Dimensions: 19.5mm length, 9.8mm width, 12.5mm depth for space-saving design.

The XP Power IML02 series isolated DC/DC converters are ideal for industrial, medical equipment, instrumentation, and other electronic systems requiring reliable power supply isolation and efficient DC voltage conversion. This high-quality component contributes to improved system safety and performance.

Explore the wide range of XP Power DC/DC Converters and related power solutions in EnvMart’s Electronics & Electricals category for industrial and commercial applications.
