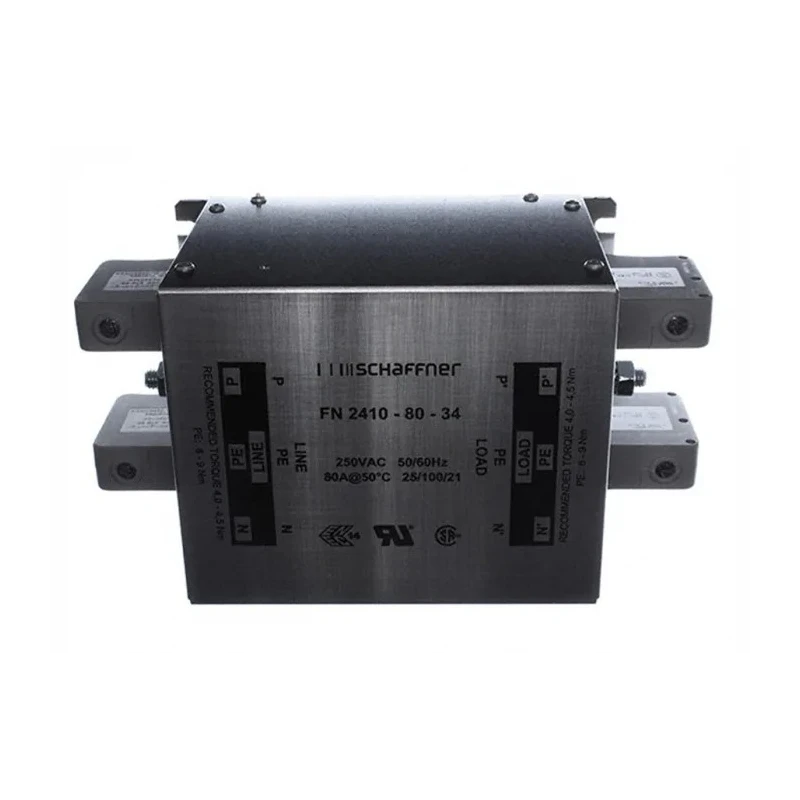

Schaffner Chassis Mount EMC Filter 2 Phase Terminal Block 80A 520V AC 250Hz FN2410H

Schaffner FN2410H model chassis mount EMC filter is specifically engineered to reduce electromagnetic interference in industrial and commercial electrical systems. Rated for 80 Amperes and operating at 520V AC with a frequency of 250Hz, this filter is suitable for applications requiring high suppression of electrical noise across two phases within a three-phase network.

The robust chassis mount construction allows for secure installation in electronic equipment, featuring a terminal block termination style that ensures reliable and stable electrical connections. Operating temperature ranges from -25°C to 100°C, facilitating performance in diverse and demanding industrial environments. With a low leakage current of 3.4mA, this filter maintains system safety and efficiency.

Physically, the unit measures 218mm in length, 115mm in depth, and 100mm in height, making it suitable for integration into compact spaces. With a single-stage design and power loss rated at 9.9W, it provides an optimal balance between filtering efficacy and energy consumption.

High-performance EMC filter for industrial applications with elevated interference. Maximum current rating of 80A ensures suitability for high-current circuits. Terminal Block termination style for simple and sturdy installation.

Chassis mount design supports secure and space-efficient setup. Designed for operation across two phases in three-phase networks. Operating frequency capability up to 250Hz for effective noise mitigation. Wide temperature operating range from -25°C to 100°C for various environments.

Low leakage current of 3.4mA enhances safety and reduces losses. Compact dimensions facilitate integration into diverse equipment. Power loss of 9.9W maintains energy-efficient filtering performance.

This EMC filter is essential for industrial, manufacturing, electrical distribution, and HVAC systems, ensuring electromagnetic compatibility and improved equipment longevity. The filter complies with EN 133 200 standards and holds approvals including UL1283 and CSA22.2 No.8 1986, demonstrating adherence to international safety and quality norms.

Schaffner FN2410H series EMC filters are trusted components for engineers and technicians aiming to suppress electrical noise and protect sensitive equipment in demanding electrical environments.
