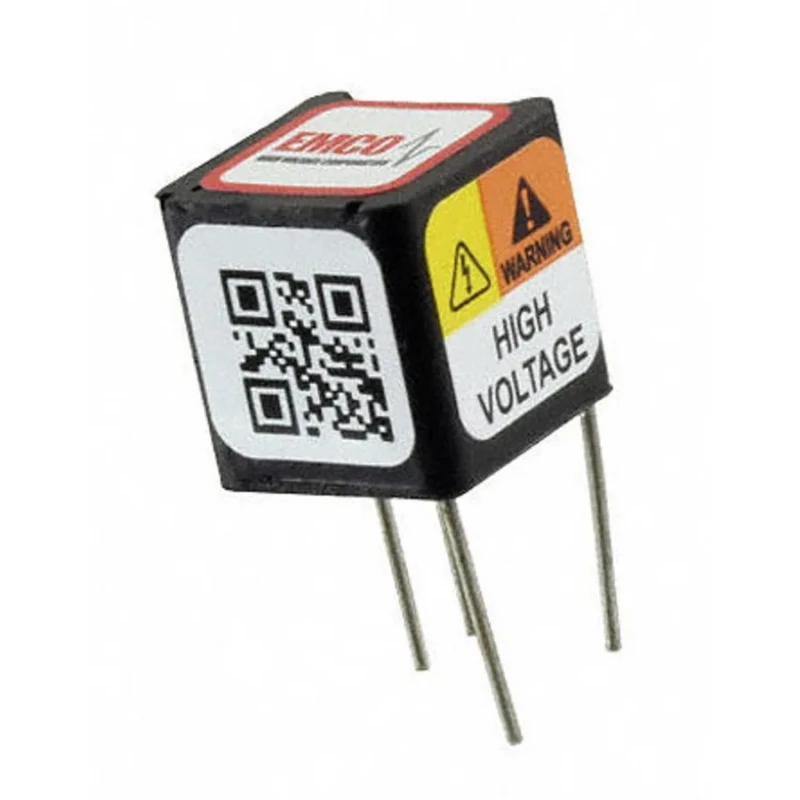

XP Power Ultra Miniature Through Hole DC/DC Converter 500V Output, 1 mA Output Current, 5V Input, 0.5W Power Q05-5
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power Q DC/DC Converter, 500V/ 1 mA, 5V Input |
| Brand | XP Power |
| Length | 12.7mm |
| Model | Q05-5 |
| Gross Weight | 4.3g |
| Width | 12.7mm |
| Mount Type | Through Hole |
| Series | Q |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| MTBF | 3000000h |
| Number of outputs | 1 |
| Ripple and Noise | 0.15% Pk-Pk |
| Maximum Output Power | 0.5W |
| Maximum Input Voltage | 5V |
| Minimum Input Voltage | 0V dc |
| Number of Pins | 6 |
| Output Voltage 1 | 500V |
| Output Current 1 | 1mA |
| Isolation Voltage | 500V |
Key Features
- Features a through hole mount type suitable for compact PCB layouts.
- Operates reliably between -25°C to 70°C ambient temperatures.
- Provides low ripple noise of 0.15% Pk-Pk for stable output.
- Isolation voltage of 500V ensures enhanced safety and signal integrity.
- Extremely lightweight at 4.3 grams for miniature applications.
- Ideal for applications such as avalanche photodiodes, piezo devices, and capacitor charging.
- Single output design with ±10% voltage adjustment capability.
- Short circuit protection and low leakage current improve reliability.
Product Description
XP Power Q05-5 is an ultra miniature and highly reliable through hole DC/DC converter designed for applications demanding high voltage isolation and compact size. Operating from a minimum input voltage of 0V dc up to a maximum input of 5V, it provides a stabilized high output voltage of 500V with an output current of 1mA and maximum power rating of 0.5W.
The converter is engineered to function effectively within a temperature range of -25°C to 70°C, supporting industrial and scientific environments. It features low ripple and noise characteristics of just 0.15% Pk-Pk, enhancing the quality of the output voltage signal for sensitive electronic applications.
The device comes in a 12.7mm by 12.7mm compact case with through hole mounting, allowing easy installation on printed circuit boards prioritizing size and weight reduction. Its isolation voltage of 500V and low leakage current make it excellent for protecting circuits from electrical interference and ensuring operator safety.
Designed for use in advanced applications such as avalanche photodiodes, photomultiplier tubes, piezoelectric devices, sustaining ion pumps, electrophoresis, printers, igniters, and capacitor charging, this converter guarantees long operational life with a mean time between failures (MTBF) of three million hours.
Through hole mount type ensures straightforward PCB integration. High voltage output and isolation for demanding electronic devices. Low ripple noise minimizes signal distortion in sensitive applications. Robust operating temperature range for varied industrial environments.
Short circuit protection enhances operational safety. Minimal external components streamline circuit design. Extremely lightweight design supports compact systems. Isolated DC to high voltage DC conversion capability.
XP Power's Q Series DC/DC Converters combine compactness with robust performance, making them highly suitable for industrial, laboratory, construction, and scientific instrumentation applications. Choose this converter for reliable high voltage DC power with minimal footprint and excellent electrical characteristics.
