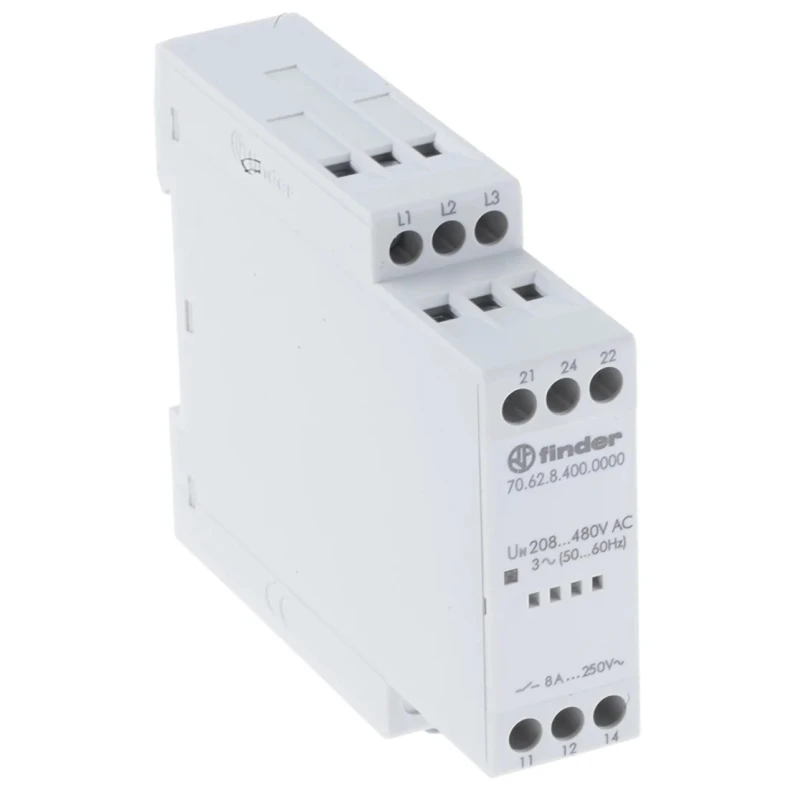

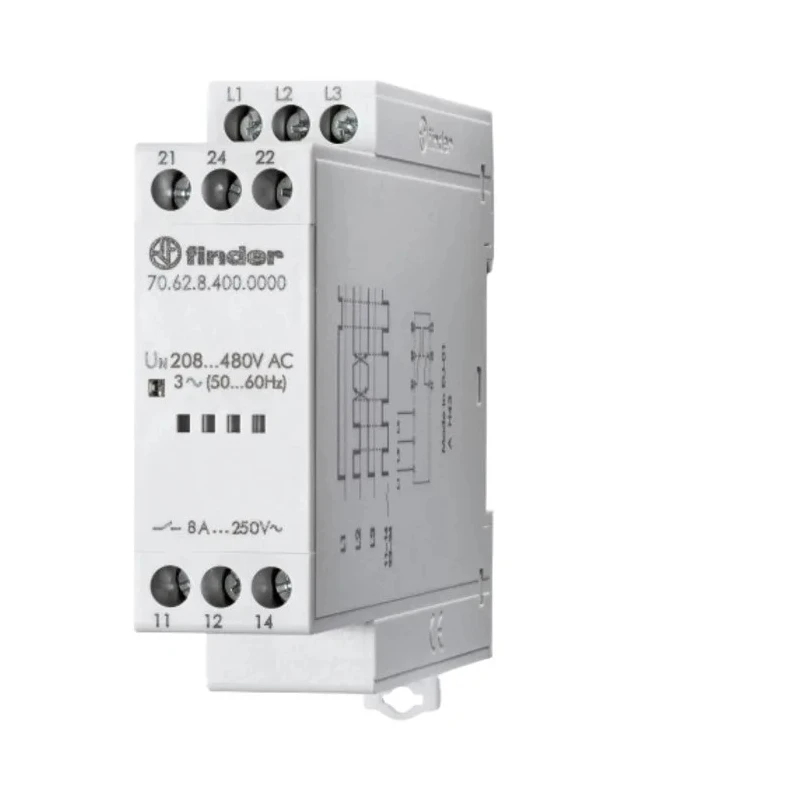

Finder Monitoring Relay 3 Phase DPDT DIN Rail 480V AC 70.62.8.400.0000
Specifications
| Country of Origin | Italy |
|---|---|
| Power Consumption | 0.8W |
| Brand | Finder |
| Height | 78.8mm |
| Length | 100.3mm |
| IP Rating | IP20 |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | 70 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Standards/Approvals | CE, EAC, UKCA, RoHS |
| Supply AC Voltage | 480V ac |
Key Features
- Monitors 3-phase electrical voltage for undervoltage and overvoltage conditions.
- Features DPDT contact configuration suitable for reliable switching.
- Compact DIN rail mount design with screw terminal connections.
- Operates in temperature ranges from -20°C to 60°C for diverse environments.
- Provides immediate visual feedback with colored LEDs for quick diagnostics.
- Includes positive safety logic that opens relay contacts upon fault detection.
- Phase loss and rotation monitoring enhance protection in critical electrical applications.
- Complies with CE, EAC, UKCA, and RoHS standards for safe industrial use.
Product Description
Finder 70.62.8.400.0000 Monitoring Relay is a specialized device designed for accurate and reliable voltage monitoring in 3-phase electrical systems, capable of sensing voltages from 208 to 480V AC. It features a double-pole double-throw (DPDT) contact configuration and is engineered for easy DIN rail mounting, measuring 100.3 mm in length, 22.5 mm in width, and 78.8 mm in height.
This monitoring relay is ideal for industrial and commercial electrical installations requiring precise control over voltage levels to prevent equipment damage and system failures. It delivers multifunctional monitoring for undervoltage and overvoltage conditions, offering enhanced operational safety through phase loss and rotation detection.
Installation is facilitated by secure screw terminals, ensuring stable connections. The device operates robustly within temperature extremes ranging from -20°C to +60°C, making it suitable for a variety of environmental conditions. Colored LEDs provide immediate visual indication of operational status, simplifying maintenance and troubleshooting.
Safety is paramount with the inclusion of positive safety logic that automatically opens the relay's contacts upon error detection, mitigating risks of further electrical hazards. Certifications including CE, EAC, UKCA, and RoHS underscore this model's compliance with international safety and environmental regulations.
Common applications encompass wood-processing machinery, hoists, cranes, control panels for pumps, escalators, forced-air ventilators, and air conditioning systems where reliable voltage monitoring is critical to equipment performance and longevity.
Monitors 3-phase voltage for undervoltage and overvoltage protection. Compact DIN rail mounting for easy integration in electrical panels. DPDT contact configuration enables versatile control functionality. Robust operation in temperatures from -20°C to 60°C.
LED indicators facilitate quick status checks and fault diagnosis. Positive safety logic ensures relay opens on error detection. Phase loss and rotation monitoring improve system reliability. Complies with CE, EAC, UKCA, and RoHS standards.
Explore EnvMart’s comprehensive selection of industrial Monitoring Relays to complement your electrical automation and control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This monitoring relay can sense voltages from 208 to 480V AC.
It features a double-pole double-throw (DPDT) contact configuration suitable for reliable switching.
The dimensions of this monitoring relay are 100.3 mm in length, 22.5 mm in width, and 78.8 mm in height.
It operates within a temperature range of -20°C to +60°C.
This model is designed for easy DIN rail mounting, facilitating integration into electrical panels.
It uses screw terminals for secure and stable connections.
It includes positive safety logic that opens the relay contacts upon fault detection, enhancing operational safety.
It complies with CE, EAC, UKCA, and RoHS standards for safe industrial use.
Common applications include wood-processing machinery, hoists, cranes, control panels for pumps, escalators, and air conditioning systems.
The power consumption of this model is 0.8W.
It provides multifunctional monitoring for undervoltage and overvoltage conditions, as well as phase loss and rotation monitoring.
The IP rating of this unit is IP20, indicating its level of protection against solid objects.
