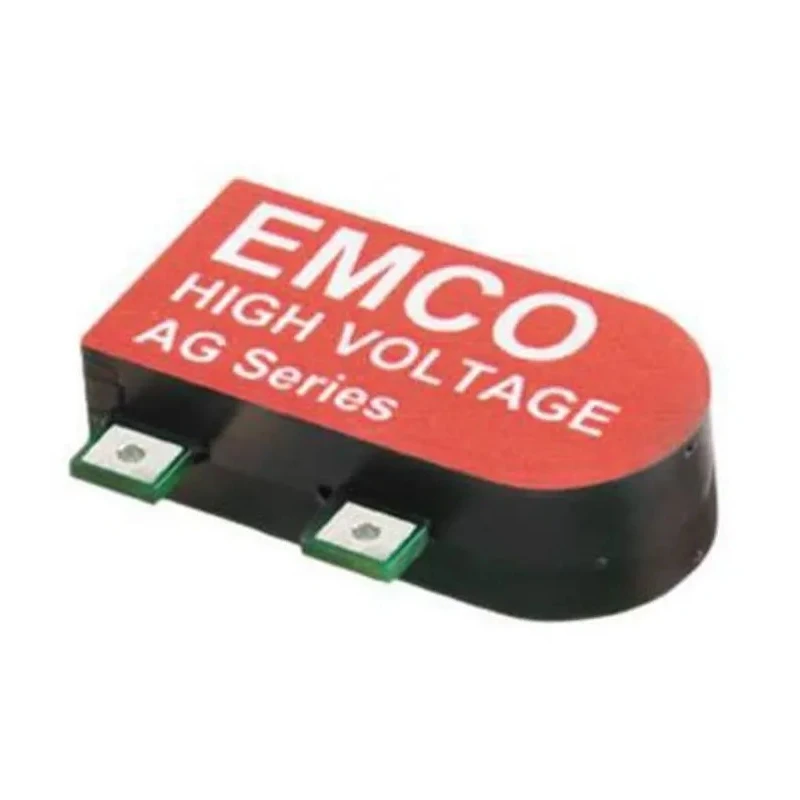

XP Power Ag Isolated DC/DC Converter 200V DC Output 5mA 5V DC Input Surface Mount 1W Power AG02P-5

XP Power AG02P-5 is an isolated DC to high voltage DC converter tailored for applications requiring compact size and high performance. It provides a 200V DC output at a current of 5mA, powered by a 5V DC input voltage range starting from 0V, making it versatile for a range of electronic systems.

This surface mount DC/DC converter features galvanic isolation of 500V, ensuring operational safety and noise reduction in sensitive circuits. The converter delivers a reliable 1 watt output power with minimal ripple and noise at 1% peak-to-peak, enhancing signal integrity.

The unit’s compact physical dimensions - length of 23.37mm, width of 17.53mm, and a depth of 6.35mm - make it ideal for applications constrained by space. Designed to operate effectively within an ambient temperature range from -25°C to 75°C, it suits industrial, laboratory, and specialized equipment environments.

With an outstanding MTBF of 1,862,000 hours, the AG02P-5 offers exceptional durability and reliability. Additional features include low output/input capacitance and low leakage current, improving operational efficiency and reducing potential electromagnetic interference.

These converters require no minimum load and incorporate a minimum 1 minute of short circuit protection, supporting stable performance under varying load conditions. Their design negates the need for external components, simplifying system integration.

Applications span a variety of high precision and analytical instrumentation such as avalanche photodiodes, capacitor charging circuits, electrophoresis equipment, photomultiplier tubes, piezoelectric devices, mass spectrometry apparatus, and sustaining ion pumps.

Manufactured in the United States, the AG02P-5 maintains rigorous quality and reliability standards, making it a trusted solution for high voltage DC conversion needs. The converter supports a 5V DC input voltage range from 0 V to 5 V.

It delivers a maximum output power of 1 watt with low ripple and noise of 1% peak-to-peak. Features galvanic isolation with an isolation voltage of 500 V for enhanced safety. Compact surface mount packaging with dimensions 23.37mm length, 17.53mm width, and 6.35mm depth.

Operates reliably between -25°C to 75°C making it suitable for diverse industrial conditions. Extremely high mean time between failures (MTBF) of 1,862,000 hours ensures long life and dependability. Low output/input capacitance and low leakage current improve efficiency and reduce interference.

Applications include avalanche photodiodes, capacitor charging, photomultiplier tubes, and piezo devices. No minimum load requirement and short circuit protection support robustness in operation. Manufactured in the United States with high quality standards.
