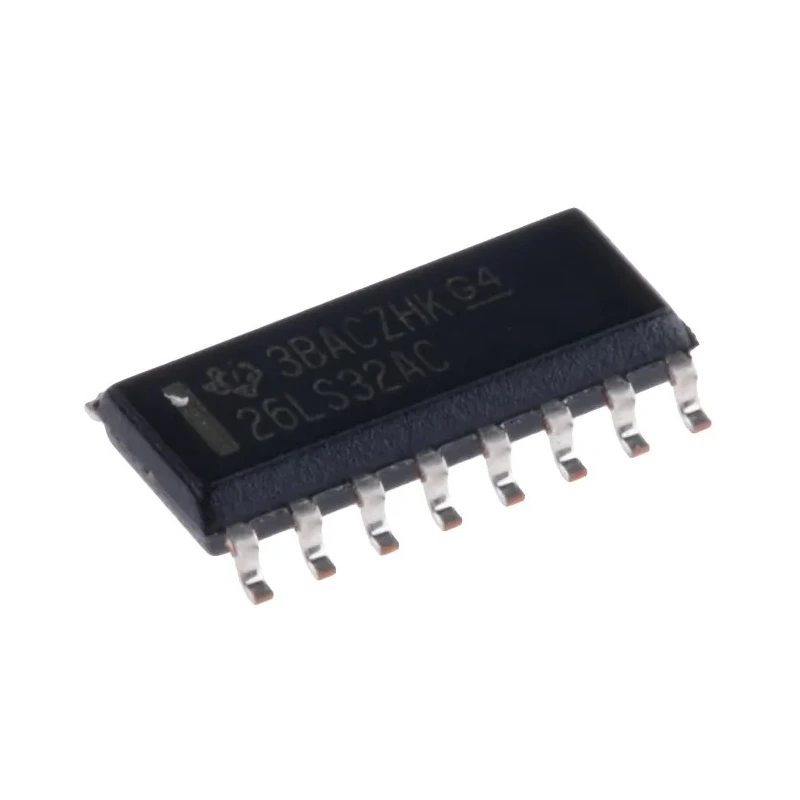

Texas Instruments Quad Line Receiver TTL, Differential Input, 3 State Output, 16-Pin SOIC Package AM26LS32ACD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 10mm |
| Model | AM26LS32ACD |
| Width | 6.2mm |
| Mount Type | Surface |
| Output type | 3 State |
| Series | AM26LS32AC |
| Input Type | Differential |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| IC Type | Quad Line Receiver |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | TTL |
| Logic Function | Line Receiver |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -440μA |
| Maximum Propagation Delay Time @ CL | 35ns |
| Supply Current | 70mA |
| Maximum Low Level Output Current | 8mA |
Key Features
- Operates from 4.75V to 5.25V supply voltage range.
- Supports a maximum propagation delay time of 35ns at capacitive load.
- Capable of driving 8mA maximum low level output current.
- Suitable for surface mount applications with a compact SOIC package.
- Operates reliably within 0°C to 70°C temperature range.
- Consumes 70mA supply current, optimized for RS-422 line receiver applications.
- Automotive standard compliance not applicable.
Product Description
Texas Instruments AM26LS32ACD is a new quad line receiver designed for TTL logic family applications. It features differential inputs and three-state outputs, packaged in a compact 16-pin SOIC surface mount format. The line receiver operates with a minimum supply voltage of 4.75 volts and a maximum of 5.25 volts, ensuring compatibility with standard digital systems.
This device provides a maximum propagation delay time of 35 nanoseconds at capacitive load, allowing for efficient signal regeneration in communication systems. It can source up to 8 milliamps of low level output current while tolerating a maximum high level output current of -440 microamps.
The AM26LS32ACD is designed to function reliably between 0 and 70 degrees Celsius ambient temperatures. Its compact dimensions of 10 millimeters length, 6.2 millimeters width, and 1.75 millimeters height facilitate integration into space-constrained circuit boards.
Typical applications include RS-422 line drives and receivers where differential signaling improves noise immunity in industrial, instrumentation, laboratory, and electronic equipment environments.
This product is categorized under Line Interface ICs within semiconductors and electronics components. It does not comply with automotive standards, but it delivers robust performance for industrial and commercial electronics integration.
Operates at standard TTL logic levels with robust differential input handling. Offers three-state output for bus-oriented systems. Surface mount SOIC package supports modern PCB assembly processes. Low propagation delay enhances signal integrity in data transmission.
Wide operating temperature range suitable for indoor electronic applications. Compact size fits diverse electronic component layouts. Moderate supply current ensures energy efficient operation. Explore more semiconductor and line interface components at EnvMart.
