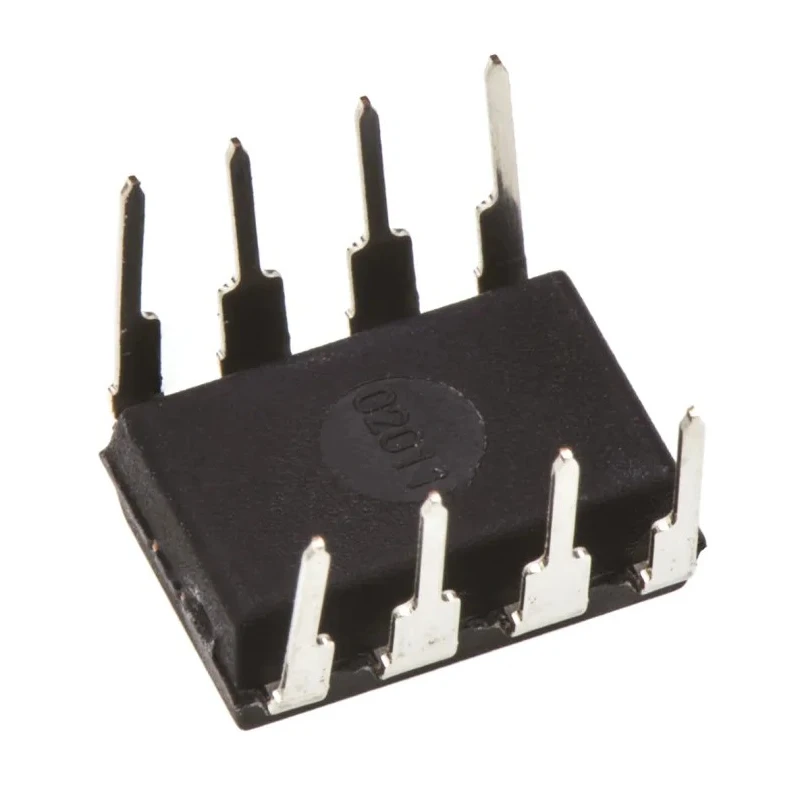

Texas Instruments Precision Operational Amplifier 1 MHz 8-Pin 30V PDIP LT1013CP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | LT1013CP |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | LT101 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | -90 nA |
| Slew Rate | 0.4V/μs |
| Input Offset Current | 0.8 nA |
Key Features
- Gain bandwidth product is 1 MHz ensuring stable amplification.
- Through-hole mount type with PDIP package for easy PCB integration.
- Operates at supply voltages ranging from 5 V to 30 V.
- Low input bias current of -90 nA suitable for high resistance circuit designs.
- Input offset voltage of 150 μV provides precision signal amplification.
- Slew rate of 0.4 V/μs supports moderate speed signal changes.
- Functions reliably between 0°C and 70°C operating temperature range.
- Compact dimensions of 9.81 mm length, 6.35 mm width, and 4.57 mm height.
Product Description
Texas Instruments LT1013CP is a precision operational amplifier designed for reliable signal amplification in various electronics and industrial circuits. Featuring a 1 MHz gain bandwidth product and housed in a standard 8-pin PDIP package, this dual-channel device supports through-hole mounting providing easy assembly on printed circuit boards.
The amplifier supports a wide supply voltage range from 5 V to 30 V with low input bias current of -90 nA, making it suited for applications requiring high input impedance and stable performance. Input offset voltage is tightly controlled at 150 μV to ensure signal accuracy and low distortion in sensitive measurement and control systems.
With a moderate slew rate of 0.4 V/μs, the LT1013CP handles typical moderate-speed signal variations efficiently. The operating temperature spans from 0°C to 70°C, making it practical for general-purpose industrial and laboratory use without automotive qualification requirements.
Its compact mechanical specifications - length 9.81 mm, width 6.35 mm, and height 4.57 mm - allow flexible space integration within electronic assemblies. This product is ideal for instrumentation, signal conditioning, and general amplifier applications requiring precision and stability.
Gain bandwidth product: 1 MHz. Mount type: Through Hole PDIP. Operating voltage range: 5 V to 30 V. Input bias current: -90 nA. Input offset voltage: 150 μV. Slew rate: 0.4 V/μs. Operating temperature: 0°C to 70°C. Dual channel with 8 pins.
Dimensions: 9.81 x 6.35 x 4.57 mm. Designed for precision industrial and laboratory amplification. Find a broad range of Operational Amplifiers and other semiconductor components at EnvMart to support your electronic design and development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1 MHz, ensuring stable amplification across its operating range.
It operates at supply voltages ranging from 5 V to 30 V, making it versatile for various applications.
The dimensions of this operational amplifier are 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height.
The input bias current is -90 nA, which is suitable for high resistance circuit designs.
The input offset voltage is tightly controlled at 150 μV, providing precision signal amplification.
It functions reliably within an operating temperature range of 0°C to 70°C.
The slew rate is 0.4 V/μs, which supports moderate speed signal changes effectively.
This operational amplifier features two channels, making it suitable for dual signal amplification applications.
The LT1013CP is housed in a standard 8-pin PDIP package, allowing for through-hole mounting on printed circuit boards.
It is ideal for instrumentation, signal conditioning, and general amplifier applications requiring precision and stability.
The input offset current is 0.8 nA, contributing to its precision in sensitive measurement systems.
This model features a through-hole mount type, facilitating easy assembly on PCBs.
