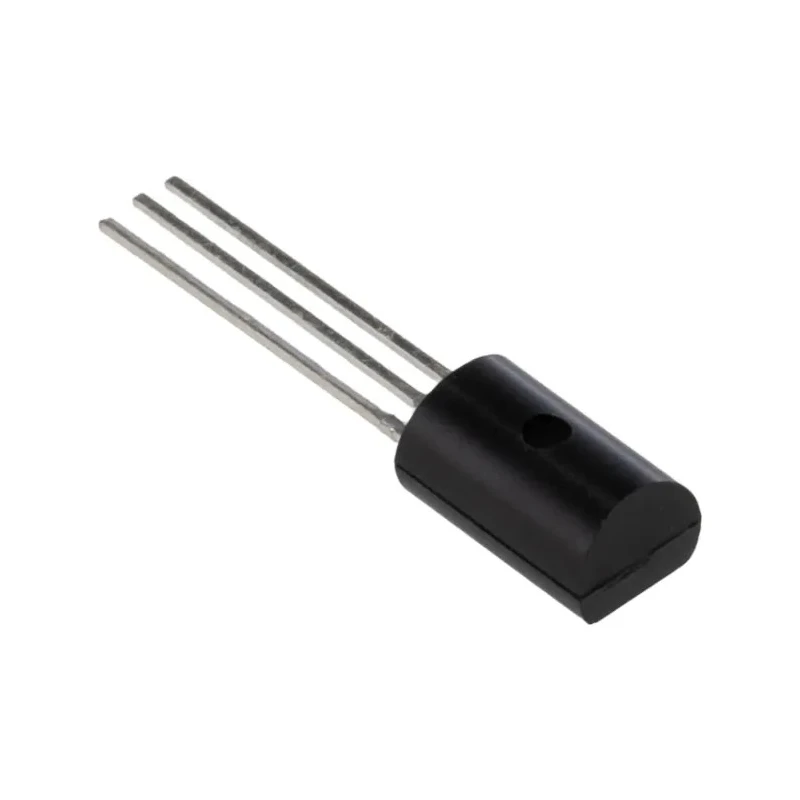

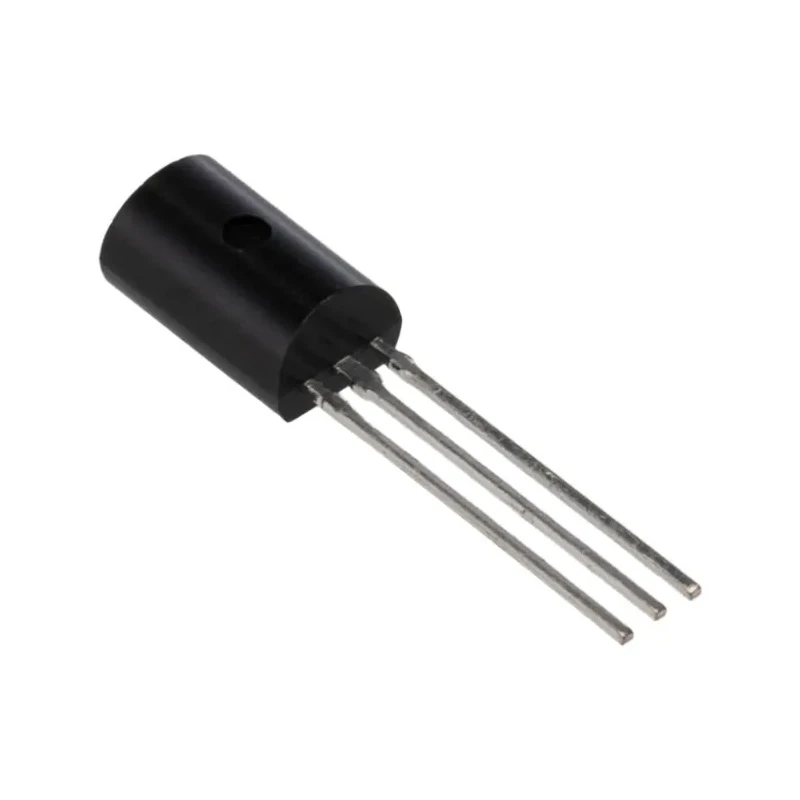

onsemi Voltage Regulator 30V TO-92 3-Pin MC78L05ACPG
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi, Voltage Regulator 30V TO-92 3-Pin RS Stock No |
| Brand | onsemi |
| Height | 5.33mm |
| Length | 5.2mm |
| Model | MC78L05ACPG |
| Width | 4.19mm |
| Mount Type | Through Hole |
| Series | MC78Lxx |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Polarity | Positive |
| Maximum Input Voltage | 30V |
| Quiescent Current | 3mA |
| Minimum Input Voltage | 6.7V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Operates with input voltage range from 6.7V to 30V.
- Compact TO-92 package measuring 5.2mm length, 4.19mm width, and 5.33mm height.
- Positive polarity linear voltage regulator with 3mA quiescent current.
- Incorporates internal thermal overload protection and current limiting.
- Meets automotive standard AEC-Q100 for enhanced reliability.
Product Description
onsemi MC78L05ACPG is a reliable linear 5-volt voltage regulator designed for various electronics applications requiring fixed voltage output. Packaged in a compact TO-92 3-pin through-hole format, it facilitates easy PCB mounting and integration.
This 3-pin positive polarity regulator features low quiescent current of 3mA, making it efficient for power-sensitive applications. It supports an input voltage range from 6.7V up to a maximum of 30V, while regulating output to a stable 5V.
Built to operate up to 125°C, the MC78L05ACPG includes internal thermal overload protection and current limiting circuitry with safe area compensation to protect the device and surrounding components from damage due to excessive heat or current.
It complies with the automotive AEC-Q100 standard, ensuring high reliability in automotive and industrial environments. This device requires no external components for basic operation but allows voltage and current adjustment via external circuitry if desired.
Operates with input voltage range from 6.7V to 30V. Compact TO-92 package measuring 5.2mm length, 4.19mm width, and 5.33mm height. Positive polarity linear voltage regulator with 3mA quiescent current. Incorporates internal thermal overload protection and current limiting.
Meets automotive standard AEC-Q100 for enhanced reliability.
This voltage regulator is ideal for use in industrial electronics, automotive systems, power management solutions, and general electronic circuitry requiring stable 5V power supply regulation.
Explore more on Voltage Regulators and power management ICs in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with an input voltage range from 6.7V to 30V.
It regulates output to a stable 5V.
The quiescent current for this unit is 3mA.
The package measures 5.2mm in length, 4.19mm in width, and 5.33mm in height.
It can operate at temperatures up to 125°C.
Yes, it incorporates internal thermal overload protection and current limiting circuitry.
It uses a through-hole mounting type.
Yes, it meets the automotive standard AEC-Q100 for enhanced reliability.
This model is a positive polarity linear voltage regulator.
No, it requires no external components for basic operation, though adjustments can be made via external circuitry if desired.
It belongs to the MC78Lxx series of voltage regulators.
It is ideal for use in industrial electronics, automotive systems, and general electronic circuitry requiring stable 5V power supply regulation.
