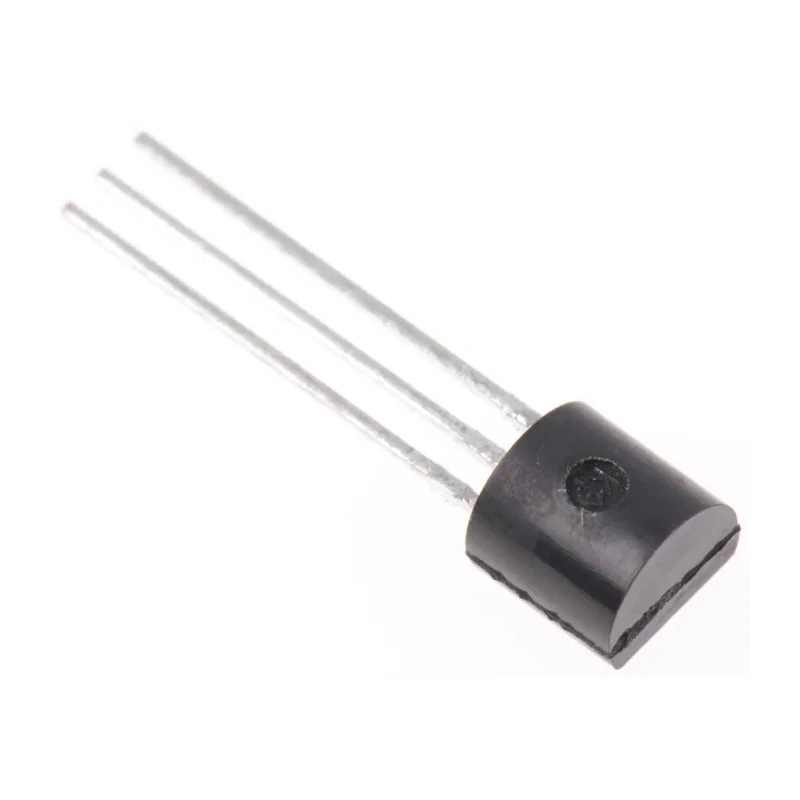

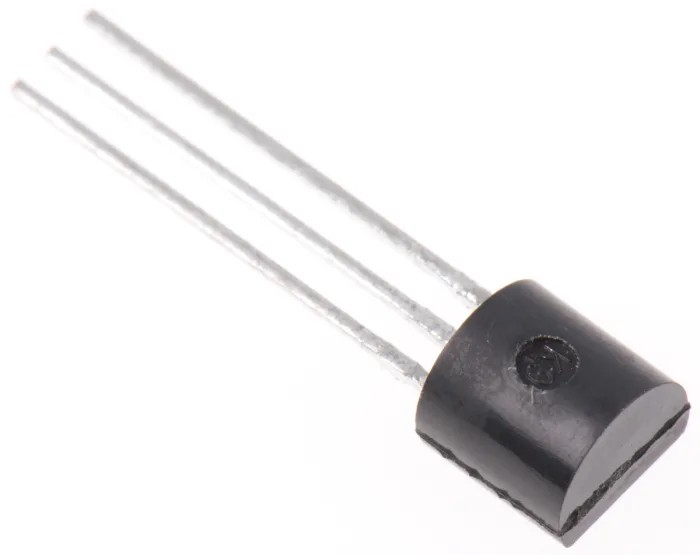

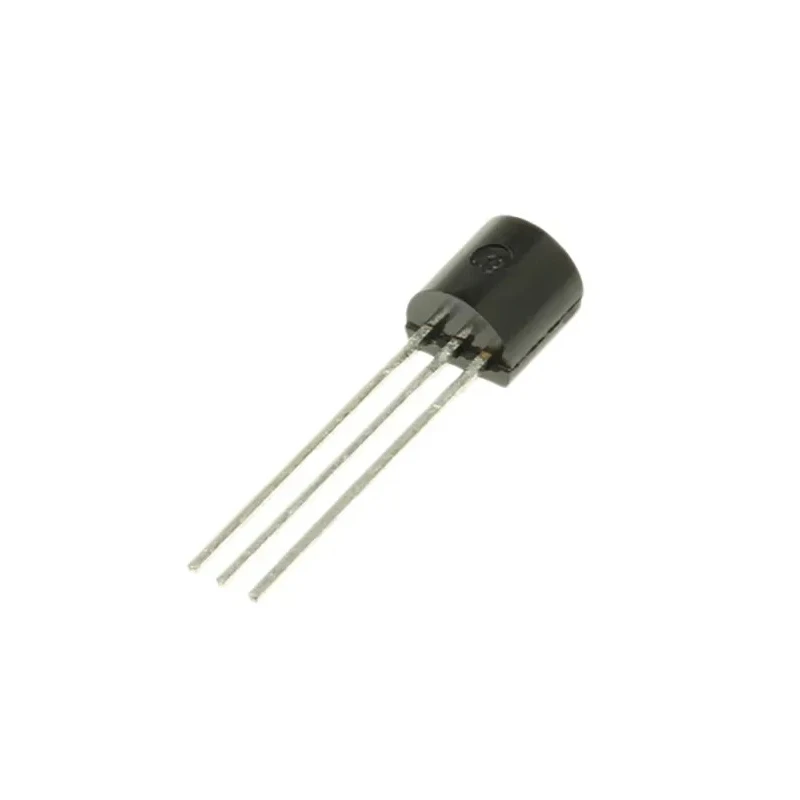

onsemi Voltage Supervisor 1 Supervisor 3-Pin TO-92 Package 4.7 V Reset Threshold MC34064P-5G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 5.33mm |
| Length | 5.2mm |
| Model | MC34064P-5G |
| Width | 4.19mm |
| Mount Type | Through Hole |
| Series | MC34064 |
| Maximum Operating Temperature | 70°C |
| Package Type | TO-92 |
| Sub Type | Undervoltage Detector |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Supply Voltage | 6.5V |
| Minimum Supply Voltage | 1V |
| Number of Supervisors | 1 |
| Output Driver | Open Collector |
| Reset Threshold Voltage | 4.7V |
| Monitored Voltage | 4.6V |
Key Features
- Designed for monitoring power supply voltage and supervisory functions.
- Features an open collector output driver for flexible interfacing.
- Operates within a supply voltage range of 1 V to 6.5 V.
- Reset threshold voltage set at 4.7 V ensures precise voltage detection.
- Compact through-hole mounting with TO-92 package type.
- Suitable operating temperature range from 0°C to 70°C for reliable performance.
- Pin count of 3 simplifies circuit integration and design.
- Complies with RoHS standards for environmental safety.
Product Description
onsemi MC34064P-5G is a voltage supervisor IC designed to monitor supply voltages and provide undervoltage detection in electronic circuits. This device features a single undervoltage detector supervisor integrated within a compact 3-pin TO-92 through-hole package, ideal for desktop, laptop, and portable battery-powered equipment applications.
The supervisor IC monitors supply voltages from as low as 1 V up to 6.5 V, with a reset threshold voltage accurately set at 4.7 V and a monitored voltage of 4.6 V. It is equipped with an open collector output driver, making it suitable for various interfacing needs without the complexity of additional reset or watchdog timer functions.
The operating temperature range from 0°C to 70°C allows for stable performance in typical industrial and commercial electronic devices. The compact TO-92 package with dimensions approximately 5.33 mm height, 5.2 mm length, and 4.19 mm width facilitates easy mounting through standard through-hole techniques.
This Voltage Supervisor is widely used in power management circuits for microprocessor systems, helping maintain system stability by providing accurate supply voltage monitoring and reset signaling during undervoltage conditions. It meets RoHS compliance ensuring environmentally safe manufacturing standards.
Designed to monitor power supply voltage and provide undervoltage detection functionality. Open collector output driver allows versatile interfacing options. Supply voltage range from 1 V minimum to 6.5 V maximum provides broad application scope.
Reset threshold voltage fixed at 4.7 V for consistent operation. Compact 3-pin TO-92 through-hole package ensures straightforward PCB assembly. Operating temperature range of 0°C to 70°C supports various environmental conditions.
RoHS compliant for environmental and safety standards adherence. Ideal for use in microprocessor supervisory, test, measurement, and portable battery-powered devices. Explore this and other advanced power management ICs in the EnvMart Electronics & Electricals catalog for tailored component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This voltage supervisor operates within a supply voltage range of 1 V to 6.5 V.
The reset threshold voltage is fixed at 4.7 V, ensuring precise voltage detection.
It features an open collector output driver, allowing for flexible interfacing options.
The dimensions of the TO-92 package are approximately 5.33 mm in height, 5.2 mm in length, and 4.19 mm in width.
It operates within a temperature range of 0°C to 70°C, suitable for various environmental conditions.
This model integrates a single undervoltage detector supervisor.
The monitored voltage is set at 4.6 V, which is slightly below the reset threshold.
This voltage supervisor is designed for through-hole mounting.
Yes, it complies with RoHS standards for environmental safety.
It is suitable for use in microprocessor supervisory circuits, test and measurement equipment, and portable battery-powered devices.
This model has a pin count of 3, simplifying circuit integration and design.
It belongs to the MC34064 series of voltage supervisors.
