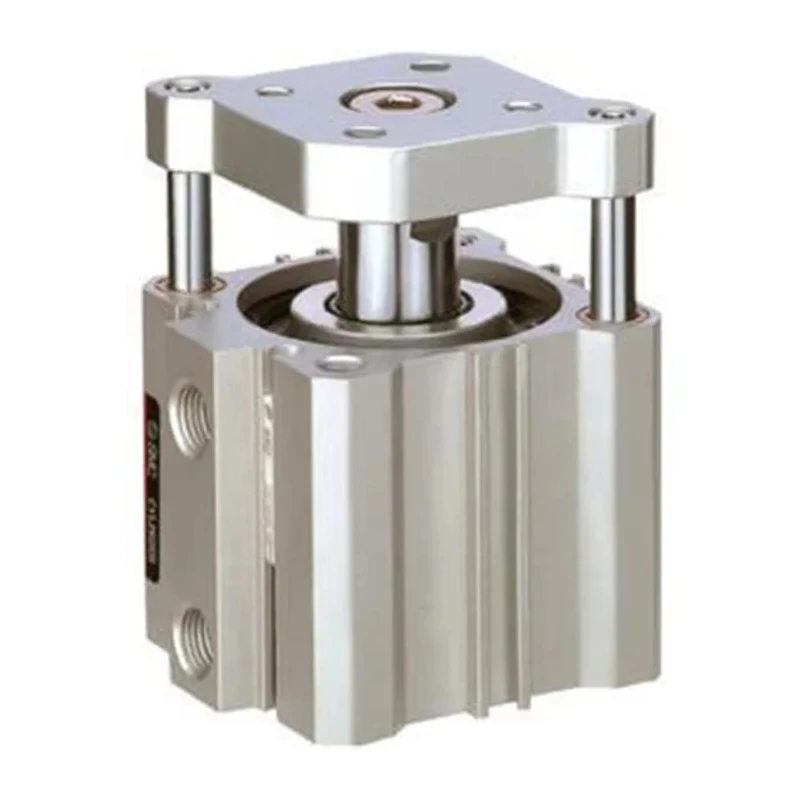

SMC Pneumatic Compact Cylinder 32mm Bore, 40mm Stroke, Aluminium Alloy Body, Double Acting CQMB32-40
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1 Mpa |
| Length | 78mm |
| Model | CQMB32-40 |
| Gross Weight | 343g |
| Mount Type | Through Hole |
| Series | CQM |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 40mm |
| Bore Diameter | 32mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Cushioning Type | Rubber Bumper |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | M10 x 1.25 |
Key Features
- The compact cylinder features a 32mm bore diameter and 40mm stroke length.
- It is constructed with an aluminium alloy body for lightweight durability.
- The cylinder employs a double acting mechanism suitable for precise control.
- Equipped with a rubber bumper cushioning type to absorb shock.
- Maximum operating pressure is 1 Mpa with a piston speed up to 500mm/s.
- Rod type is single with metric thread size M10 x 1.25 on the piston rod.
- Operating temperature ranges from -10°C to 70°C ensuring versatility.
- The compact design includes a guide rod and plate for enhanced lateral load resistance.
Product Description
SMC CQMB32-40 Pneumatic Compact Cylinder is a high-quality, precision-engineered pneumatic actuator designed for industrial automation applications. Featuring a 32mm bore diameter and a 40mm stroke length, this compact cylinder offers reliable double acting performance with smooth and efficient motion control.
The aluminium alloy body ensures lightweight and corrosion-resistant durability, suitable for demanding environments. The cylinder incorporates a rubber bumper cushioning system that absorbs shocks, extending operational life and reducing noise during actuation.
With a maximum operating pressure of 1 Mpa and a piston speed capability of up to 500mm/s, the CQMB32-40 supports rapid and precise movements. Its single rod type with a metric M10 x 1.25 thread allows secure attachments in various industrial assemblies.
Designed with an integrated guide rod and plate, the cylinder provides four times the lateral load resistance compared to the CQ2 series, enhancing stability during operation. The non-rotating accuracy of ±0.2° guarantees consistent and exact positioning for applications requiring high precision.
Operating temperature ranges from -10°C to 70°C, making it suitable for a wide range of working conditions in manufacturing, automation, fluid power systems, and conveyor equipment.
The compact size and robust design support easy mounting and integration in pneumatic systems. High durability due to premium aluminium alloy and advanced cushioning features. Ideal for use in industrial machinery, robotics, and automation lines requiring compact and efficient pneumatic actuation.
Explore the extensive range of Pneumatic Cylinders available at EnvMart to find complementary pneumatic components and accessories for your industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this model is 32mm.
The stroke length is 40mm.
The maximum operating pressure is 1 Mpa.
It features a rubber bumper cushioning type to absorb shock.
The gross weight of this unit is 343g.
The operating temperature ranges from -10°C to 70°C.
This cylinder employs a double acting mechanism.
The piston rod has a metric thread size of M10 x 1.25.
It is designed for through hole mounting.
The body is constructed from aluminium alloy, ensuring lightweight durability.
The length of this model is 78mm.
It is suitable for industrial machinery, robotics, and automation lines requiring compact pneumatic actuation.
