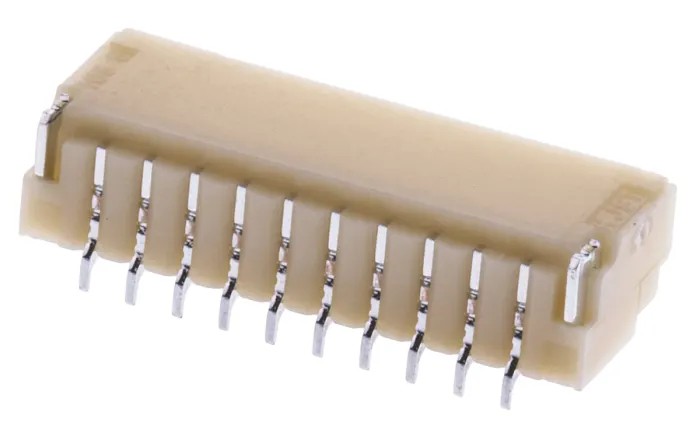

JST SH Series Straight Surface PCB Header 10 Contact 1 mm Pitch 1 Row Shrouded BM10B-SRSS-TB(LFSN)

Free Delivery in India | Lowest Global Shipping Charges

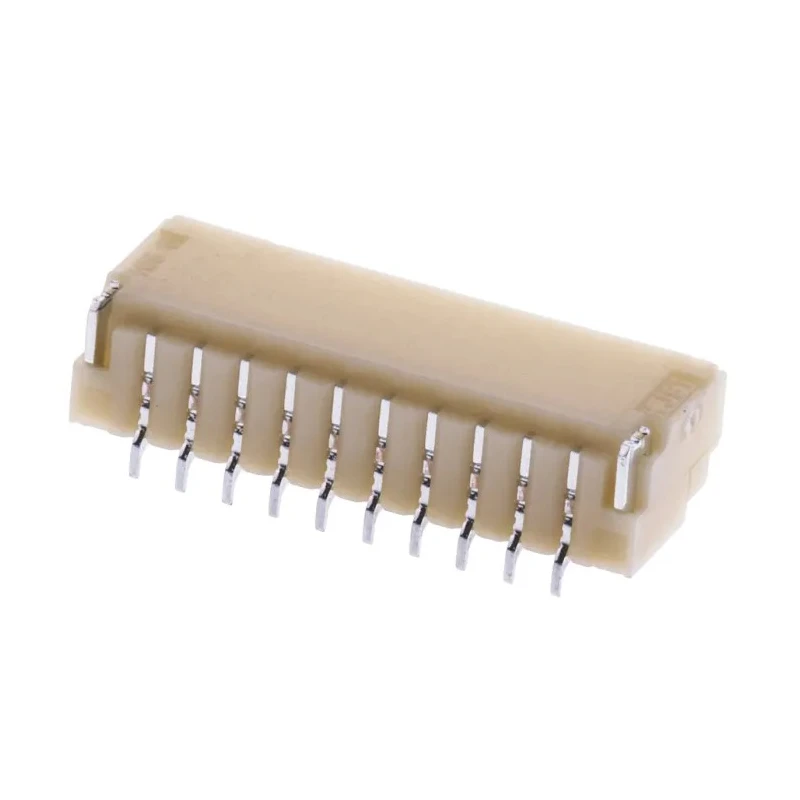

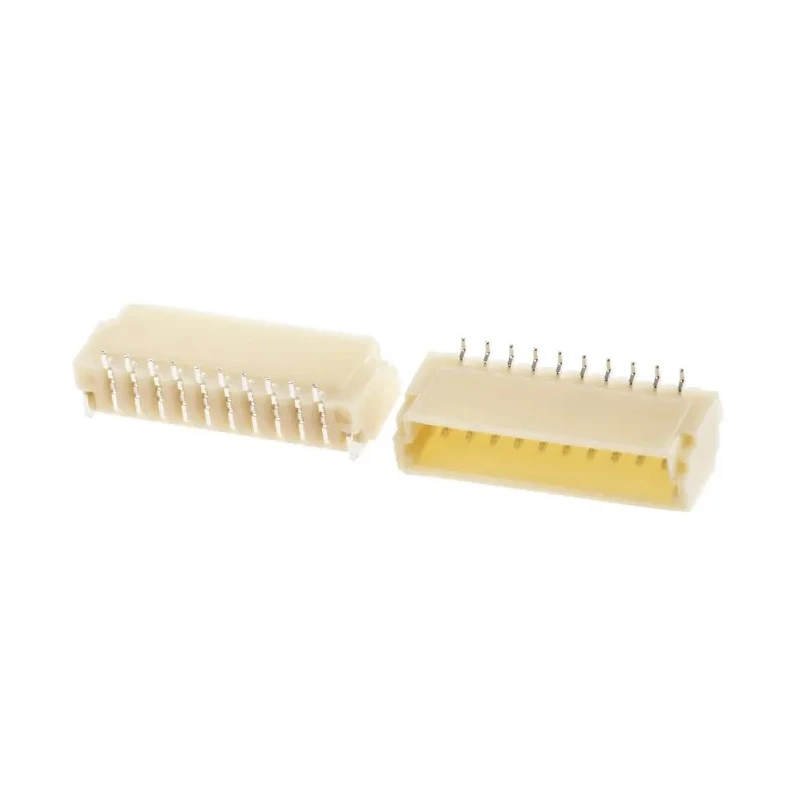

JST SH Series Straight Surface PCB Header 10 Contact 1 mm Pitch 1 Row Shrouded BM10B-SRSS-TB(LFSN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	China
Voltage	50V
Brand	JST
Orientation	Straight
Current	1A
Model	BM10B-SRSS-TB(LFSN)
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	SH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	1mm
Contact Plating	Tin
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Connector,PCB,top entry,1mm pitch,10 wayBrand	JST

Key Features

The header utilizes a polyamide housing material ensuring durability in diverse applications.
It is designed with a straight orientation and shrouded contact protection for enhanced mechanical stability.
Suitable for surface mount technology, supporting wire-to-board connector systems.
Operating voltage is 50 V with a maximum current of 1 A and temperature range from -25°C to 85°C.
Contacts are copper alloy with tin plating for reliable solder termination and conductivity.
The connector is male gender with solder termination suitable for industrial use.
Mates with crimp terminal housings like stock number 311-6502, ideal for compact board layouts.
Low mating force and polarised housings facilitate easy and error-free board installation.

Product Description

JST BM10B-SRSS-TB(LFSN) SH Series Straight Surface PCB Header offers a reliable wire-to-board electrical connection with a 10-contact configuration spaced at 1 mm pitch, arranged in a single row with shrouded contacts for protection and safety.

This top entry SMT header uses polyamide housing to provide robustness and chemical resistance, suited for various industrial applications including consumer electronics assembly and industrial electronic equipment.

Features include a straight orientation ensuring ease of connection and interoperation with mounting boards via surface mount technology, enhanced by solder termination types for secure board bonding.

The conductor material utilizes copper alloy with tin plating, supporting current loads up to 1 ampere at a voltage rating of 50 volts. It is designed to operate efficiently in temperature ranges from -25°C to 85°C.

The connector is male gender and incorporates features such as low mating force, polarized housings for correct insertion, and compatibility with crimp terminal housings for versatile wiring needs.

This JST SH Series header is particularly valuable in environments where PCB space is constrained, allowing dense electronic component placement without compromising connection reliability.

Common industrial uses are in manufacturing, electronics repair, prototyping, and automation systems requiring compact connector solutions. The header's polyamide housing provides resistance to wear and environmental factors.

The 1 mm pitch fits compact electronic designs while maintaining adequate electrical isolation. Solder termination ensures solid attachment to the PCB during assembly processes. Shrouded contacts help prevent accidental shorts and improve connector lifecycle.

This product's compliance with JST's SH Series standards guarantees consistent performance and interchangeability. Set contains one 10-contact, 1 mm pitch, 1 row, straight shrouded PCB header from the JST SH Series. Browse the Electronics Components category for more JST connectors and related PCB Header solutions on EnvMart.
