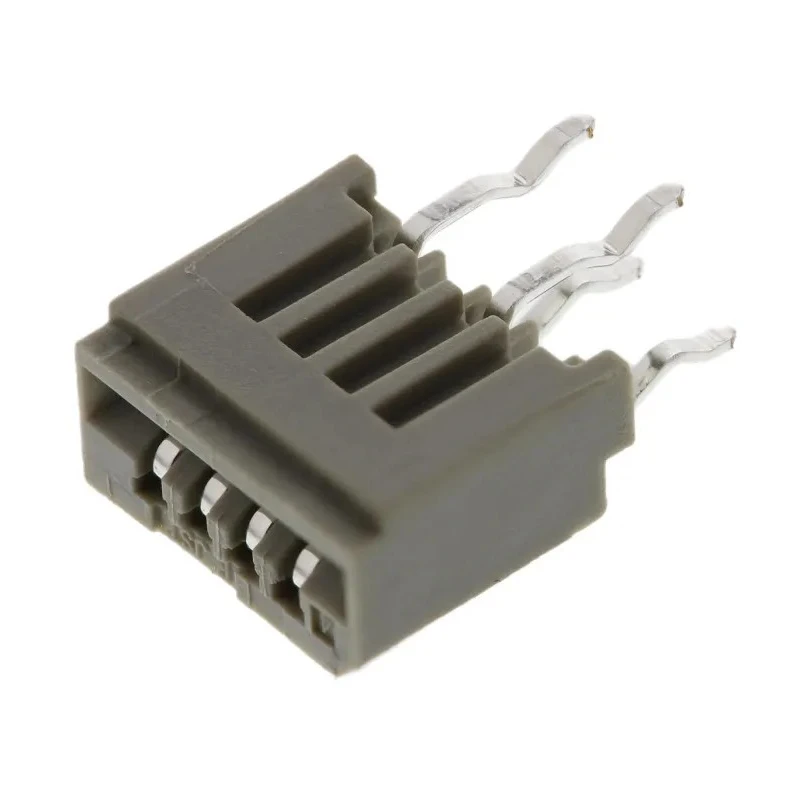

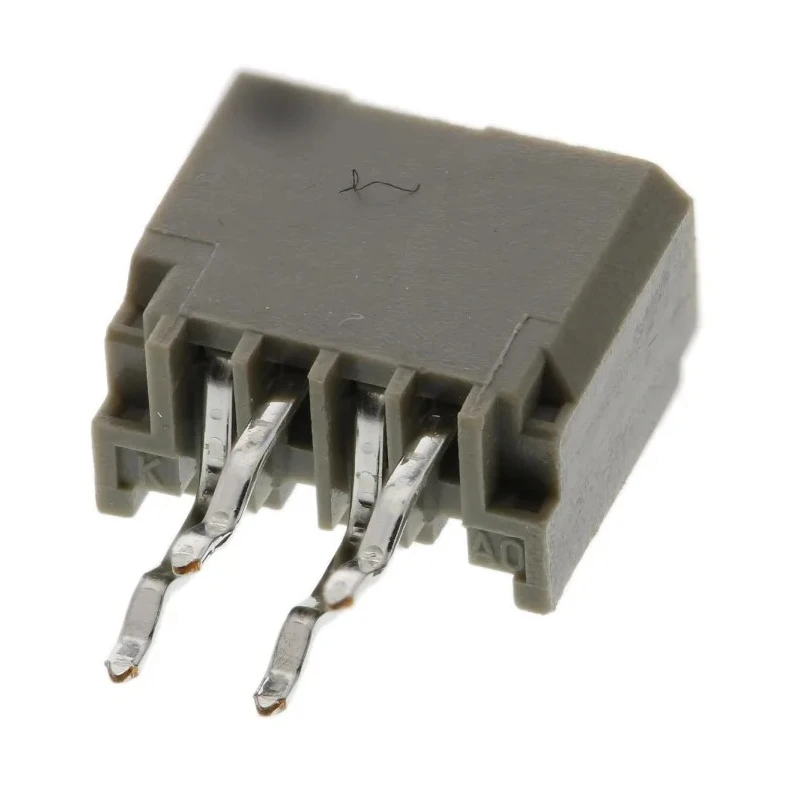

JST FMN Series 1 mm Pitch 4 Way Straight Female FPC Connector Through Hole Solder Termination 50V dc 04FMN-BTK-A (LF)(SN)

JST 04FMN-BTK-A (LF)(SN) is a high quality FPC connector from the FMN series designed for applications requiring a compact 1 mm pitch layout. This 4 way straight female connector features phosphor bronze contacts with tin over copper plating, ensuring excellent conductivity and corrosion resistance. It is intended for through-hole mounting with solder termination, providing solid mechanical and electrical connection on printed circuit boards.

The connector carries rated current of 500mA and operates at voltages up to 50V dc, making it suitable for low power electronic and signaling circuits. The housing is constructed of durable polybutylene terephthalate, offering good chemical and thermal stability. Operating temperature range spans from -25°C to 85°C, supporting use in varied environmental conditions including industrial and commercial electronics.

The top contact position and straight orientation are optimized for ease of cable insertion and assembly. The non-ZIF insertion force enhances reliable engagement without the need for zero insertion force mechanisms, balancing ease of use with secure contact. Recommended printed circuit board hole diameter for mounting is 0.75 mm, compatible with typical FPC design standards.

This connector is widely used in the manufacturing of electronic equipment, instrumentation, and other industrial devices where flexible printed circuit cables need secure connection to PCB assemblies. Its compact dimensions and 1 mm pitch support high-density layouts in space-constrained designs.

4 contacts with phosphor bronze contact material ensure durability. Through hole mount type with solder termination for strong physical connection. Operating temperature ranges from -25°C to 85°C for versatile environments.

Contact plating of tin over copper provides reliable corrosion resistance. Connector orientation is straight with top position contact alignment. Voltage rating of 50V dc and maximum current of 500mA suit low power use. Housing made of polybutylene terephthalate provides robust mechanical properties.

Single row, 1 mm pitch configuration for compact electronic assemblies. Recommended PCB hole diameter is 0.75 mm for mounting compatibility. Ideal for industrial, manufacturing, and commercial electronic applications.

This product is categorized under Electronics Components at EnvMart, suited for users seeking reliable FPC Connectors in electronic manufacturing and prototyping. Explore more from the JST FMN series to complement your assembly requirements within our extensive industrial catalog.
