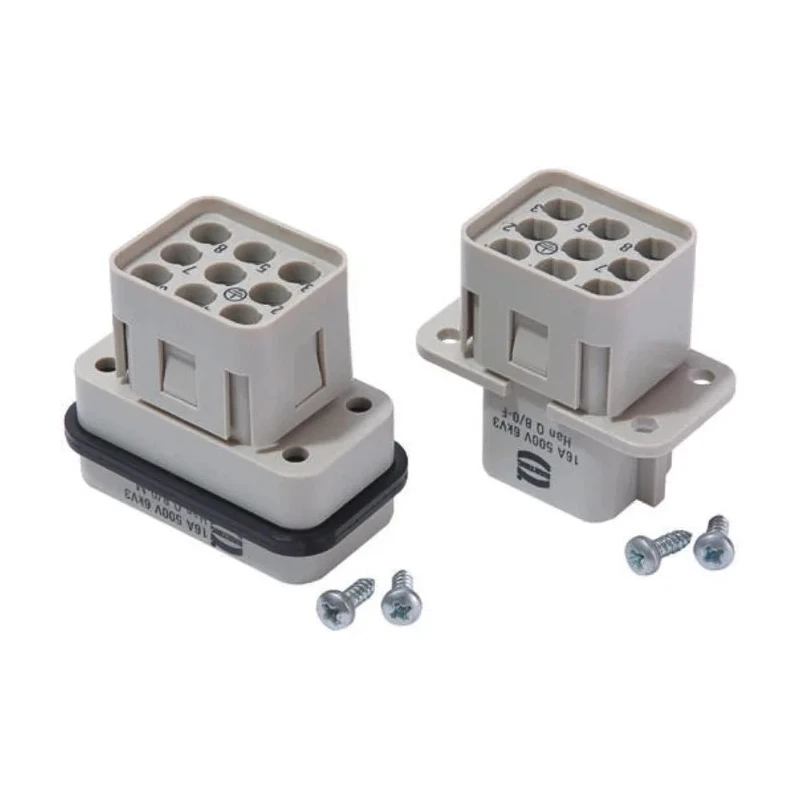

HARTING Heavy Duty Power Connector Insert 16A, Han Q Series Female 9 Contacts 09120083101
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | HARTING |
| Orientation | Straight |
| IP Rating | IP65 |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Current Rating | 16A |
| Series | Han Q |
| Sub Type | Connector Insert |
| Number of Rows | 3 |
| Pole Format | 8+PE |
| Contact Plating | Silver |
| Number of Contacts | 9 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Han Q male and female inserts for receiving crimping contacts | 8 poles + PE |
| Phoenix Contact Contact Insert, 16A, HC Series Male, 8 ContactsBrand | Phoenix Contact |
Key Features
- Rated for 16 amperes current ensuring reliable power transmission.
- Features Han Q series with 9 contacts arranged in 3 rows for diverse wiring needs.
- Connector insert is female and straight oriented for cable mounting.
- Constructed with copper alloy contacts plated with silver for enhanced conductivity and corrosion resistance.
- Supports voltage rating up to 500 volts with IP65 protection rating for dust and water resistance.
- Suitable for cable mount installation with maximum wire size of 2.5 mm² and minimum wire size of 0.5 mm².
- Manufactured in Germany guaranteeing high quality and durable design.
Product Description
HARTING 09120083101 Heavy Duty Power Connector Insert rated at 16A current and 500V voltage is designed primarily for robust industrial use including electronic, power distribution, and control systems.
This connector insert features the Han Q series design with 9 contacts (8 poles plus PE) arranged in 3 rows, facilitating complex wiring configurations. It is a female connector with a straight orientation and intended for cable mounting, making installation straightforward and secure.
The contacts are made from copper alloy and plated with silver to ensure excellent electrical conductivity and resistance to environmental wear. The IP65 rating provides effective protection against dust ingress and water jets, making the product suitable for harsh industrial environments.
It supports a maximum wire size of 2.5 mm² and a minimum wire size of 0.5 mm², providing versatility for different cable types and applications.
Manufactured in Germany, this heavy-duty power connector insert meets stringent quality standards and is a trusted component for power connector modules and assemblies used in manufacturing, automation, building infrastructure, HVAC, and other industrial sectors.
The Han Q series is compatible with specific hoods and housings designed for range 1, ensuring seamless integration into existing systems. Crimp contacts for this insert are ordered separately, allowing customization and maintenance flexibility.
Rated for 16 amperes current ensuring reliable power transmission. Features Han Q series with 9 contacts arranged in 3 rows for diverse wiring needs. Connector insert is female and straight oriented for cable mounting. Constructed with copper alloy contacts plated with silver for enhanced conductivity and corrosion resistance.
Supports voltage rating up to 500 volts with IP65 protection rating for dust and water resistance. Suitable for cable mount installation with maximum wire size of 2.5 mm² and minimum wire size of 0.5 mm². Manufactured in Germany guaranteeing high quality and durable design.
Explore other Harting power connector inserts and accessories for comprehensive solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector insert is rated for a current of 16 amperes and a voltage of up to 500 volts.
It features 9 contacts arranged in 3 rows, including 8 poles plus a protective earth (PE).
It has an IP65 rating, providing protection against dust ingress and water jets.
This model has a straight orientation and is designed for cable mounting.
The contacts are made from copper alloy and are plated with silver to enhance conductivity and corrosion resistance.
It supports a maximum wire size of 2.5 mm² and a minimum wire size of 0.5 mm².
It is manufactured in Germany, ensuring adherence to high quality standards.
This connector insert belongs to the Han Q series.
This is a female connector insert designed for heavy-duty power applications.
Crimp contacts are not included and must be ordered separately for this insert.
It is suitable for use in electronic, power distribution, and control systems within industrial environments.
The pole format consists of 8 poles plus a protective earth (PE).
