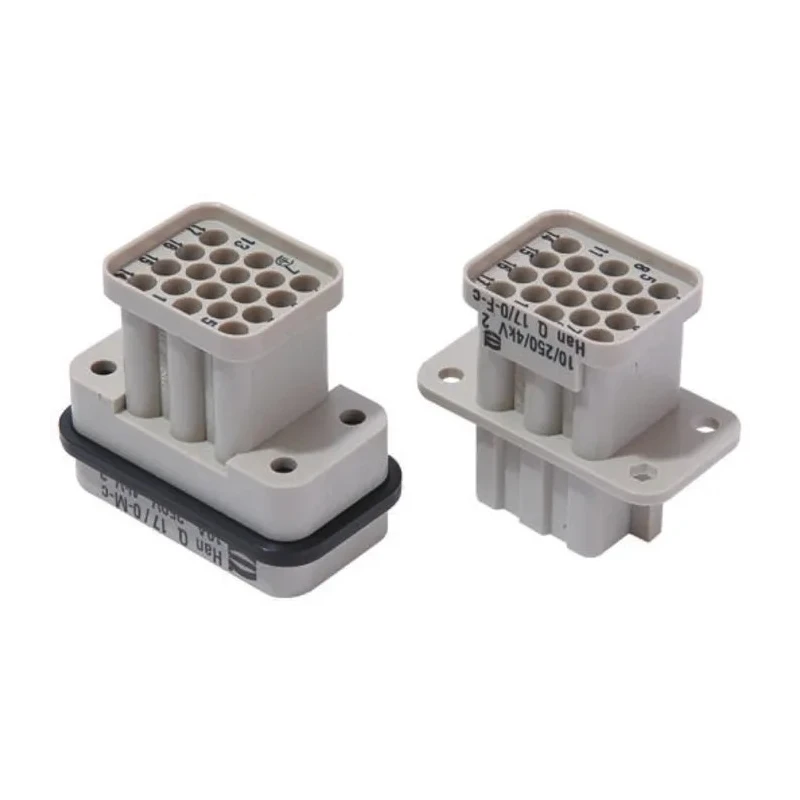

HARTING Heavy Duty Power Connector Insert 10A 17 Contacts Han Q Series Male 09120173001
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 160V |
| Brand | HARTING |
| Orientation | Straight |
| IP Rating | IP67, IP65, IP44 |
| Mount Type | Cable |
| Contact Material | Polycarbonate |
| Current Rating | 10A |
| Series | Han Q |
| Sub Type | Connector Insert |
| For Use With | Han E contacts, Han D contacts, Han C contacts |
| Pole Format | 17 |
| Contact Plating | Silver, Gold Plated |
| Number of Contacts | 17 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Han Q male and female inserts for receiving crimping contacts | 17 poles + PE |
Key Features
- The insert belongs to the Han Q series with a straight orientation for easy connection.
- Compatible with Han E, D, and C contacts for versatile use.
- Rated for IP67, IP65, and IP44 protection levels ensuring durability in harsh environments.
- Constructed with polycarbonate contact material and silver, gold-plated contacts for reliability.
- Supports wire sizes from 0.14 mm² to 2.5 mm² for broad cabling options.
- Manufactured in Germany, ensuring high quality standards.
- Suitable for use in electronic components, power connectors, and industrial applications.
- The insert is intended for receiving crimping contacts, supporting a 17 poles + PE configuration.
Product Description
HARTING 09120173001 Heavy Duty Power Connector Insert is a robust male connector insert from the Han Q series designed for demanding industrial and electronic power connections. It supports a current rating of 10A and operates at up to 160V, making it ideal for power distribution and control systems where reliability and durability are required.
This connector features 17 contacts plus an earth (PE) contact, providing secure and stable multipoint electrical connections. The contacts are mounted straight and are made from polycarbonate material with silver and gold plating to prevent corrosion and ensure consistent conductivity. Its compatibility with Han E, D, and C contacts allows flexible configuration options in complex electrical assemblies.
The insert is designed for cable mounting with multiple IP ratings (IP67, IP65, IP44), delivering excellent protection against dust and moisture, suitable for harsh industrial environments and outdoor applications. Its compact size corresponds to the Han Q series dimension standards.
Made in Germany, this component maintains strict quality control and meets industry expectations for heavy duty power connectors. Note that crimp contacts must be ordered separately to complete the electrical assembly.
This connector insert is widely used in industrial manufacturing, automation, machinery, and other electronic systems requiring robust and reliable power connectors. It integrates well with HARTING's range of hoods and housings, facilitating modular system configurations.
The insert is intended for receiving crimping contacts, supporting a 17 poles + PE configuration. Ideal for applications demanding high IP protection and electrical performance. Compatibility with a range of Han connector series enhances integration flexibility.
Robust materials and plating extend operational lifespan in challenging conditions. Supports a wide range of wire sizes ensuring versatility in cable design. Manufactured according to quality standards in Germany. Explore a large range of Heavy Duty Power Connector Inserts and modules at EnvMart for all your industrial connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 10A, making it suitable for various power distribution applications.
It operates at a maximum voltage of 160V, which is ideal for power control systems.
The insert is rated for IP67, IP65, and IP44, providing excellent protection against dust and moisture.
It is compatible with Han E, D, and C contacts, allowing for versatile configurations in electrical assemblies.
This unit supports wire sizes from 0.14 mm² to 2.5 mm², accommodating a broad range of cabling options.
The contacts are made from polycarbonate material and feature silver and gold plating to enhance conductivity and prevent corrosion.
It features 17 contacts plus an earth (PE) contact, providing secure multipoint electrical connections.
This model is designed for cable mounting, facilitating easy installation in various applications.
It is manufactured in Germany, ensuring adherence to high quality standards.
The insert has a straight orientation, which aids in easy connection during installation.
It is suitable for use in industrial manufacturing, automation, machinery, and other electronic systems requiring robust power connections.
This connector insert is a male type, designed to receive crimping contacts for electrical assembly.
