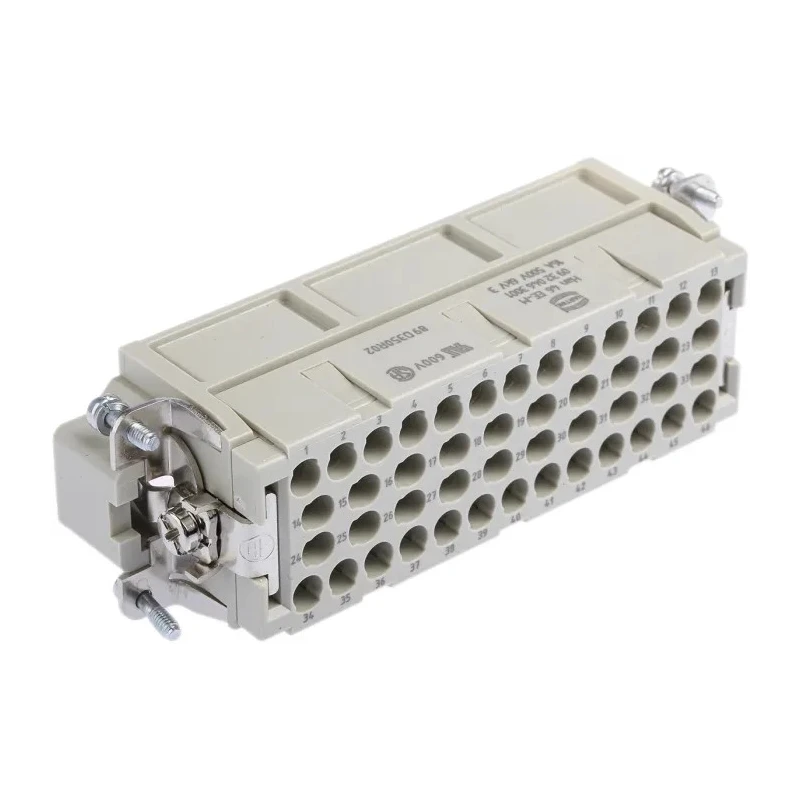

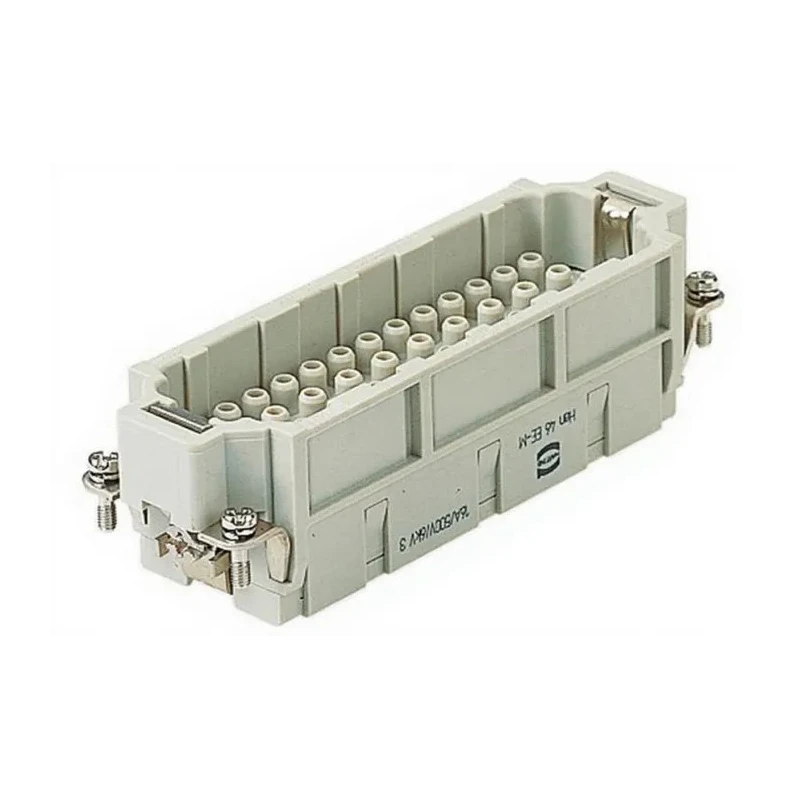

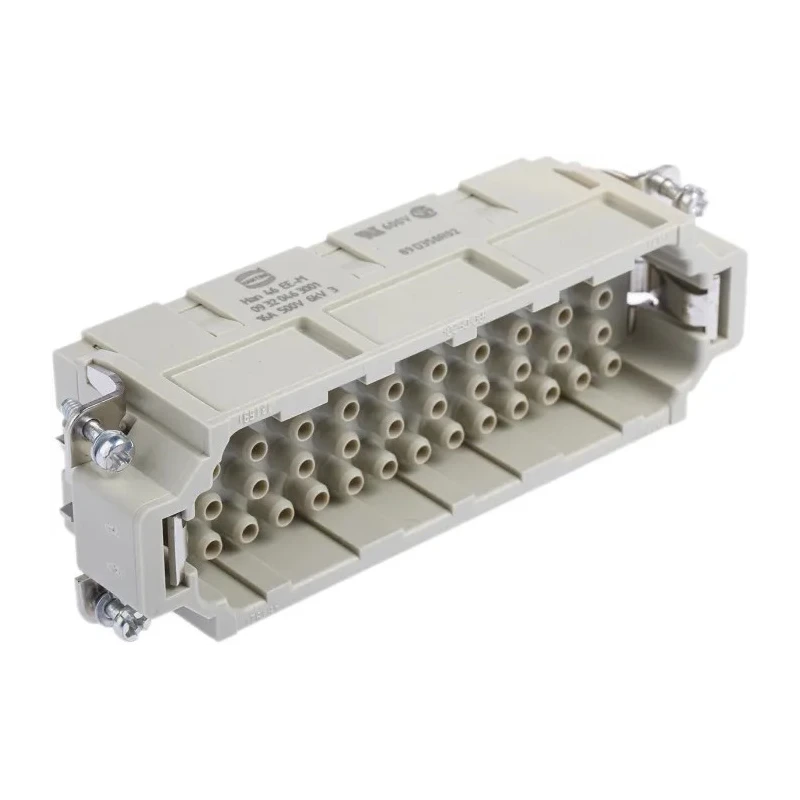

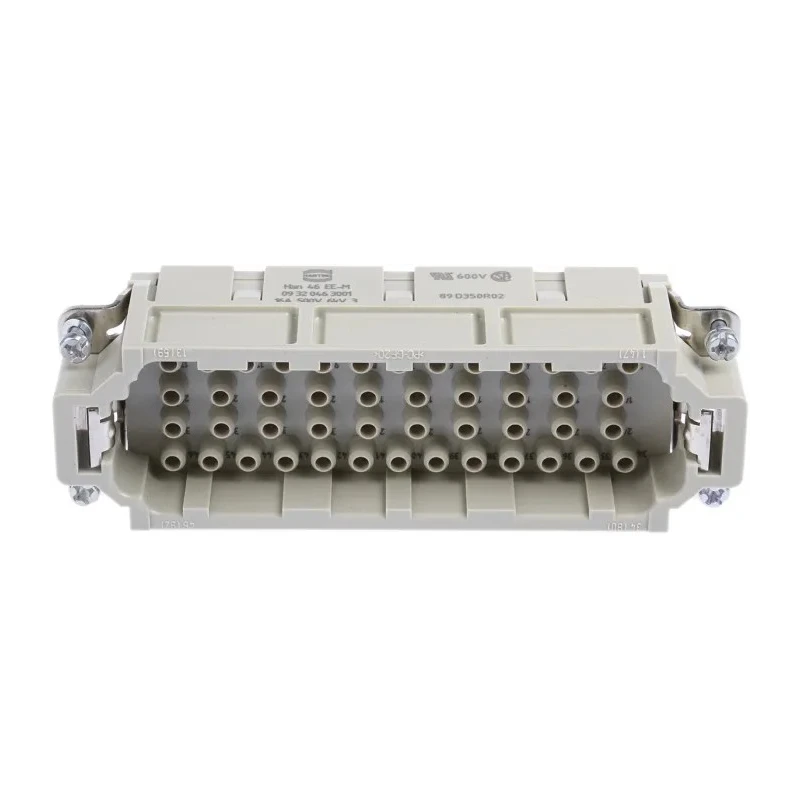

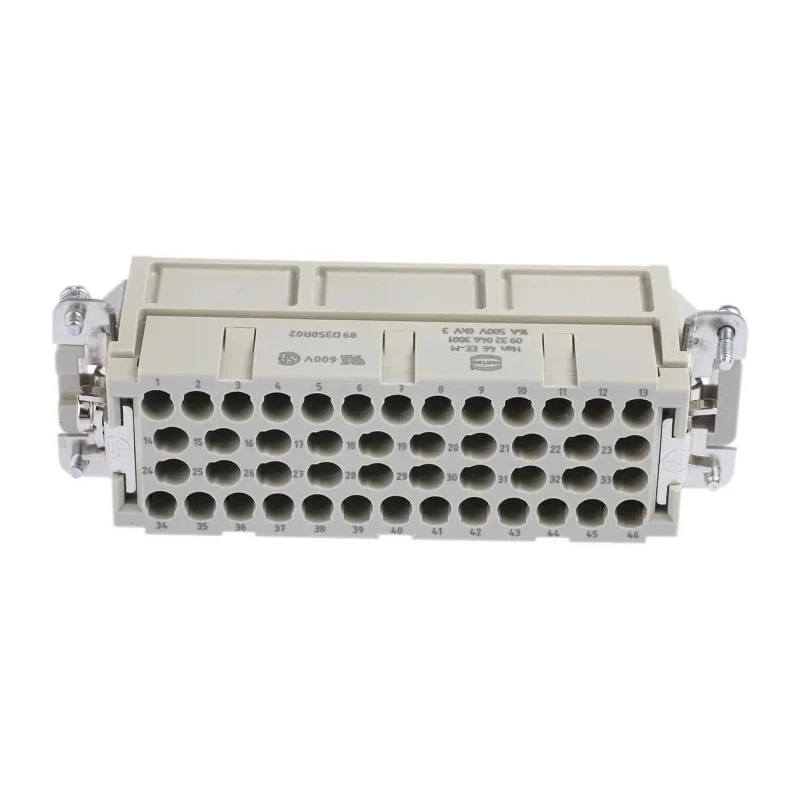

HARTING Heavy Duty Power Connector Insert 16A 500V 46 Contacts Han EE Series Male 09320463001
Specifications
| Country of Origin | Romania |
|---|---|
| Voltage | 500V |
| Brand | HARTING |
| Orientation | Straight |
| Mount Type | Cable |
| Contact Material | Polycarbonate |
| Current Rating | 16A |
| Series | Han EE |
| Sub Type | Connector Insert |
| Number of Rows | 4 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 46+E |
| Number of Contacts | 46 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 4mm² |
| HARTING Male Insert, 16A, Male, Han EE Series, 46 ContactsBrand | HARTING |
Key Features
- Provides high-density multi-pole power distribution with 46 contacts plus earth.
- Constructed with durable polycarbonate insert material for weight reduction and toughness.
- Designed for cable mounting with straight orientation to facilitate inline cable routing.
- Accepts conductor sizes ranging from 0.14 mm² to 4 mm² for flexible wiring solutions.
- Rated for industrial voltage and current levels of 500V and 16A respectively.
- Features cage-clamp termination for secure and torque-resistant connections.
- Operates reliably in temperature ranges from −40°C to +125°C suitable for harsh industrial environments.
- Silver-plated copper alloy contacts ensure low contact resistance and improved conductivity.
Product Description
HARTING 09320463001 Heavy Duty Power Connector Insert from the Han EE series is designed for industrial electrical connections requiring secure, high-density multi-contact power feeds. Rated at 16A and 500V, this male connector module features 46 contacts plus an earth connection arranged in 4 rows within a polycarbonate insert material to provide robustness while minimizing weight.
The straight orientation and cable mount design facilitate inline cable routing and simplify field installation or replacement. It supports wiring with conductor sizes from 0.14 mm² to 4 mm², offering versatile connectivity options suitable for automation cabinets, manufacturing machinery power interfaces, mobile equipment, and control panels requiring detachable power connections.
Connection termination is accomplished via a cage-clamp mechanism, ensuring secure, torque-resistant contacts for both stranded and solid conductors. The insert is operational across a wide temperature range from −40°C to +125°C, making it suitable for both indoor and exposed industrial conditions.
Contact elements are silver-plated on a copper alloy substrate to maintain low resistance and excellent conductivity. The design supports a minimum of 500 mating cycles, providing reliable performance over repeated assembly and maintenance operations.
High-density 46 contacts plus earth for multi-pole power distribution. Lightweight yet durable polycarbonate insert material. Straight orientation enables convenient inline cable routing. Accommodates conductor sizes from 0.14 mm² to 4 mm².
Robust cage-clamp termination for secure conductor connections. Wide operating temperature range from −40°C to +125°C. Silver-plated copper alloy contacts ensure conductivity. Designed for at least 500 mating cycles.
This connector insert is ideal for automation cabinets, manufacturing plants, mobile equipment, control panels, and retrofit of heavy duty cable assemblies in industrial settings. Trust HARTING for reliable and efficient electrical power distribution components.
Explore more Industrial Power Connectors and related products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector insert is rated for a current of 16A and a voltage of 500V.
It features a total of 46 contacts plus an earth connection arranged in 4 rows.
This unit accepts conductor sizes ranging from 0.14 mm² to 4 mm², providing flexible wiring options.
The contacts are made of silver-plated copper alloy, which helps maintain low contact resistance and improves conductivity.
It employs a cage-clamp termination mechanism, ensuring secure and torque-resistant connections for both stranded and solid conductors.
It operates reliably in temperature ranges from −40°C to +125°C, suitable for harsh industrial environments.
This model has a straight orientation and is designed for cable mounting, facilitating inline cable routing.
The design supports a minimum of 500 mating cycles, providing reliable performance over repeated use.
The connector insert is manufactured in Romania.
It is part of the Han EE series of HARTING connectors.
This model is ideal for use in automation cabinets, manufacturing machinery power interfaces, mobile equipment, and control panels requiring detachable power connections.
The insert is constructed with durable polycarbonate material, which contributes to weight reduction while maintaining toughness.
