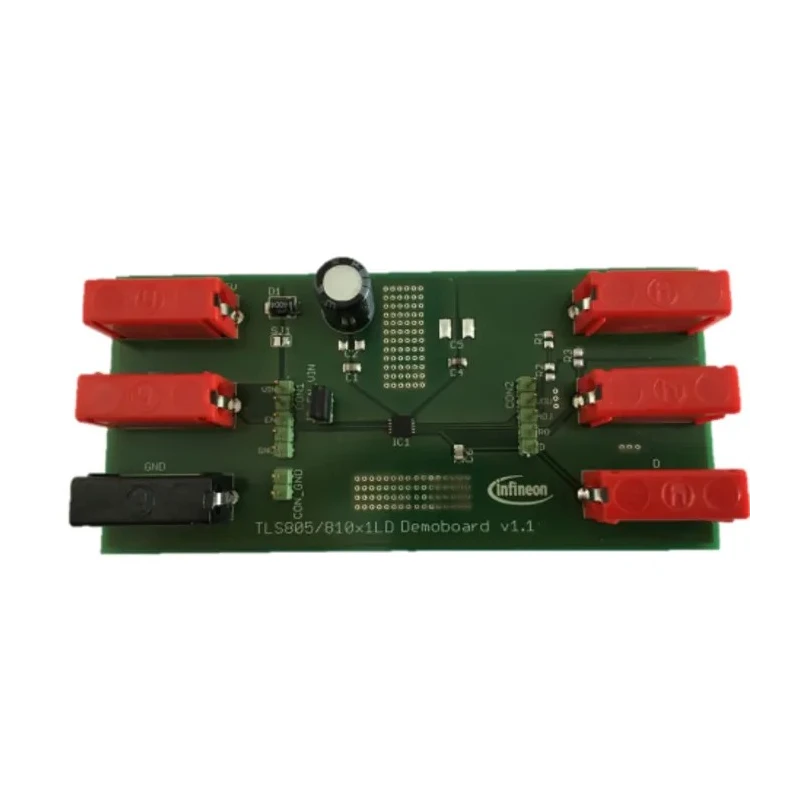

Infineon TLS805D1LDV50 BOARD LDO Voltage Regulator Evaluation Board for TLS805/TLS810 Linear Voltage TLS805D1LDV50BOARDTOBO1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | TLS805D1LDV50BOARDTOBO1 |
| For Use With | Low Quiescent Current LDO TLS805/TLS810 |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | TLS805/TLS810 Linear Voltage Regulator |
| Kit Name | TLS805D1LDV50 BOARD |
Key Features
- Offers wide input voltage range and low dropout voltage performance.
- Features ultra low quiescent current suitable for automotive battery-connected systems.
- Requires only a small 1 μF ceramic capacitor at the output for stable operation.
- Includes internal protections like output current limitation and over temperature shutdown.
- Combines fast regulation with excellent stability characteristics.
- Supports operation during cranking conditions in automotive applications.
- AEC qualified to meet automotive industry standards.
- Easy integration for development and evaluation of TLS805/TLS810 devices.
Product Description
Infineon TLS805D1LDV50BOARDTOBO1 is a demo board featuring an LDO voltage regulator optimized for the TLS805 and TLS810 series linear voltage regulators. This evaluation board demonstrates the device’s capabilities with a wide input voltage range and a low dropout voltage combined with ultra low quiescent current, making it ideal for automotive and permanent battery-powered supply systems.
The board’s design allows fast regulation combined with very good stability, requiring only a small 1 μF ceramic capacitor on the output. Its internal protection features include output current limitation and thermal shutdown to prevent damage from output short circuits, overcurrent conditions, and excessive temperature.
The TLS805D1LDV50 BOARD supports automotive applications where the supply system must remain functional during cranking conditions. It is AEC qualified, conforming to automotive electronic component standards, and RoHS compliant, ensuring environmentally safe material usage.
This evaluation board is ideal for developers seeking a reliable and compact solution to test and prototype low quiescent current LDO voltage regulators from the TLS805/TLS810 family. Its robust features suit industrial, automotive, and power management development projects.
Wide input voltage range and low dropout voltage characteristics. Ultra low quiescent current increases battery life in automotive systems. Small output ceramic capacitor requirement (1 μF) for minimal external components.
Internal protection circuits for output current limit and thermal shutdown. Fast regulation response for stable voltage supply. Robust performance during vehicle cranking conditions. AEC qualification ensures suitability for automotive electronics.
RoHS compliance for environmental safety. Perfect for development, testing, and evaluation purposes of LDO voltage regulators. Explore more Evaluation Boards and power management components at EnvMart for your development and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features low dropout voltage performance, which is beneficial for efficient voltage regulation.
The evaluation board requires only a small 1 μF ceramic capacitor at the output for stable operation.
It includes internal protections such as output current limitation and over temperature shutdown to prevent damage.
Yes, it supports operation during cranking conditions in automotive applications and is AEC qualified.
It has ultra low quiescent current, which is ideal for automotive battery-connected systems to enhance battery life.
This unit is RoHS compliant, ensuring environmentally safe material usage.
The TLS805D1LDV50 BOARD is manufactured in India.
The featured device is the TLS805/TLS810 Linear Voltage Regulator.
It is classified as an evaluation board, suitable for testing and prototyping.
It combines fast regulation with excellent stability characteristics for reliable voltage supply.
