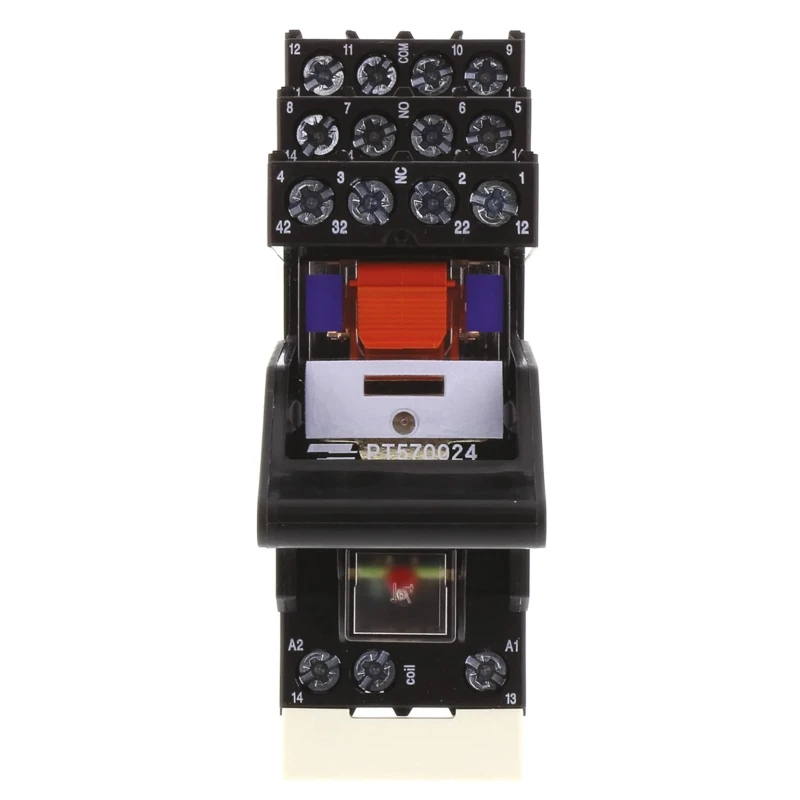

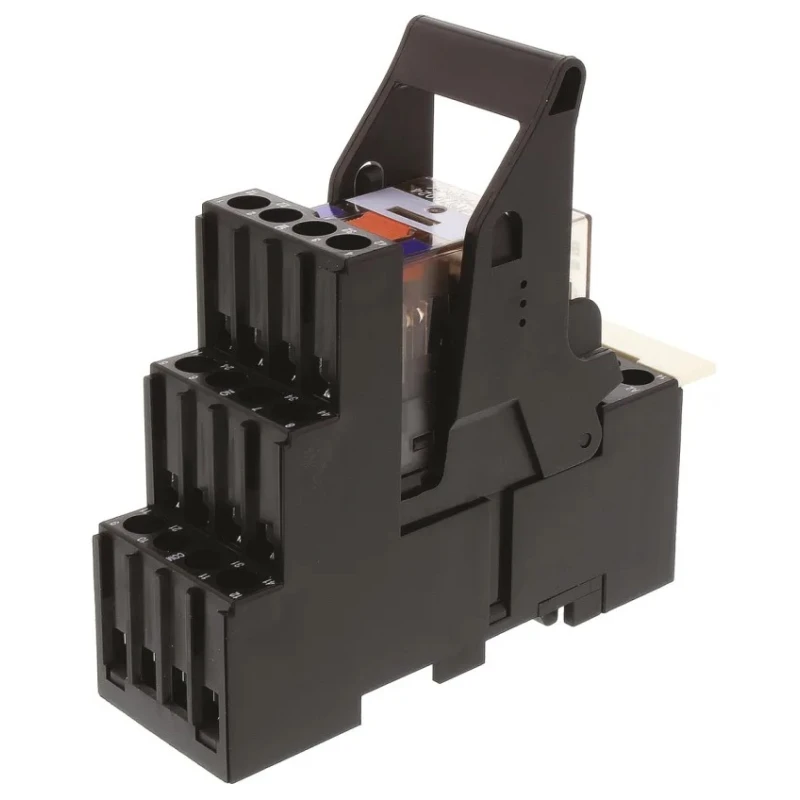

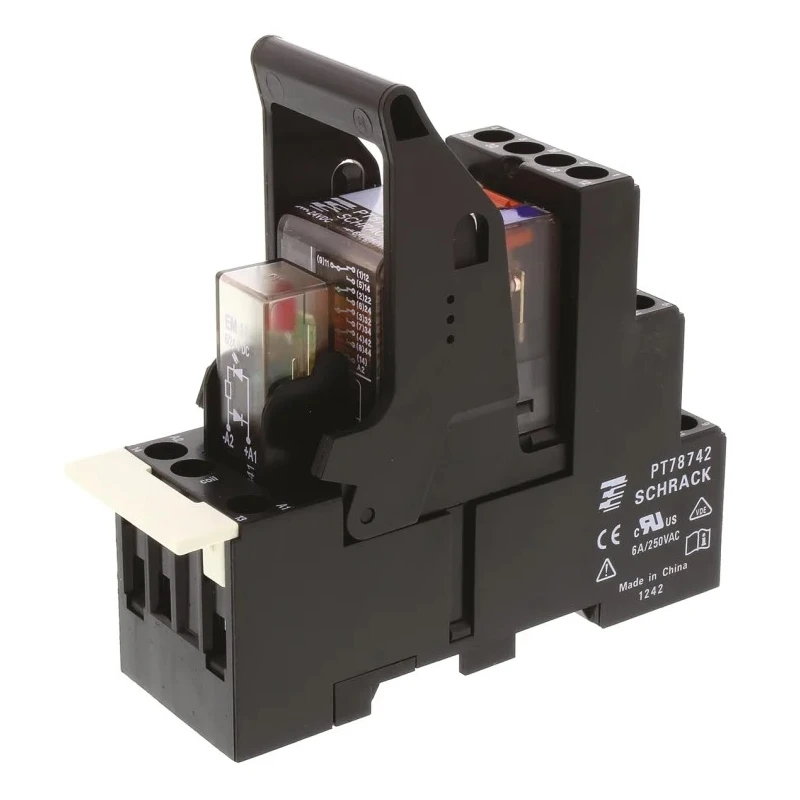

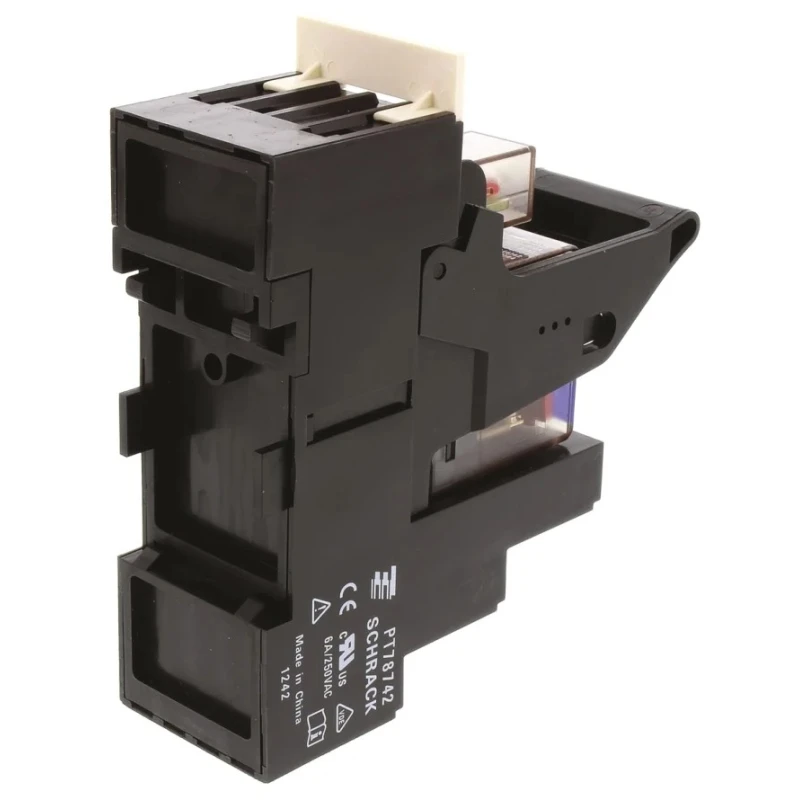

TE Connectivity DIN Rail Power Relay 24V dc Coil 6A Switching Current 4PDT PT5L7LC4 1415535-9
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 78.3mm |
| Length | 77mm |
| Model | PT5L7LC4 1415535-9 |
| Width | 27.2mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Nickel Alloy |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Screw |
| Standards/Approvals | VDE, UL, RoHS, IEC |
| Coil Resistance | 777Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 741mW |
Key Features
- Equipped with a 24V DC coil for efficient control operation.
- Designed with 4PDT contact configuration for versatile switching functions.
- Supports a switching current rating of 6 Amperes.
- Mount type is DIN Rail ensuring easy installation in control panels.
- Terminal connection is via screw type for secure wiring.
- Operating temperature range from -40°C to 70°C enabling reliable performance in diverse environments.
- Coil resistance measured at 777 ohms, with coil power consumption of 741mW.
- Compact dimensions measuring approximately 78.3mm height, 77mm length, and 27.2mm width.
Product Description
TE Connectivity PT5L7LC4 1415535-9 DIN Rail Power Relay features a 24V DC coil voltage, 6A switching current capacity, and a 4PDT (four-pole double-throw) contact configuration designed for industrial and automation control systems. This power relay enables robust switching for electrical control circuits with screw terminal type connections and DIN Rail mounting compatibility.
The relay operates reliably within a broad temperature range from -40°C to 70°C and incorporates a coil resistance of 777 ohms with a coil power rating of 741 milliwatts, ensuring energy-efficient operation. The compact dimensions of 78.3mm height, 77mm length, and 27.2mm width facilitate easy integration into control panels.
Manufactured to meet stringent international standards such as VDE, UL, RoHS, and IEC, this relay uses silver nickel alloy contacts for enhanced durability and electrical performance over extended service.
Typical applications include industrial automation, electrical control systems, HVAC control circuits, manufacturing machinery, and other commercial electrical installations requiring reliable electrical switching with DIN Rail mounting.
Equipped with a 24V DC coil for efficient control operation. Designed with 4PDT contact configuration for versatile switching functions. Supports a switching current rating of 6 Amperes. Mount type is DIN Rail ensuring easy installation in control panels.
Terminal connection is via screw type for secure wiring. Operating temperature range from -40°C to 70°C enabling reliable performance in diverse environments. Coil resistance measured at 777 ohms, with coil power consumption of 741mW.
Compact dimensions measuring approximately 78.3mm height, 77mm length, and 27.2mm width. Contact material is durable silver nickel alloy ensuring longevity. Certified to meet standards including VDE, UL, RoHS, and IEC for safety and reliability.
This product set consists solely of the power relay unit designed for DIN Rail mounting in electrical cabinets and control systems. Explore more products in the Power Relay category at EnvMart to complement your industrial and automation control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current rating of 6 Amperes.
The coil voltage for this relay is 24V DC.
It features a 4PDT (four-pole double-throw) contact configuration for versatile switching functions.
The relay measures approximately 78.3mm in height, 77mm in length, and 27.2mm in width.
It operates reliably within a temperature range from -40°C to 70°C.
The terminal connection is via screw type for secure wiring.
The coil resistance is measured at 777 ohms.
It is certified to meet standards including VDE, UL, RoHS, and IEC.
The coil power consumption is 741 milliwatts.
The contact material is a durable silver nickel alloy, enhancing electrical performance.
It is designed for DIN Rail mounting, ensuring easy installation in control panels.
Typical applications include industrial automation, electrical control systems, HVAC control circuits, and manufacturing machinery.
