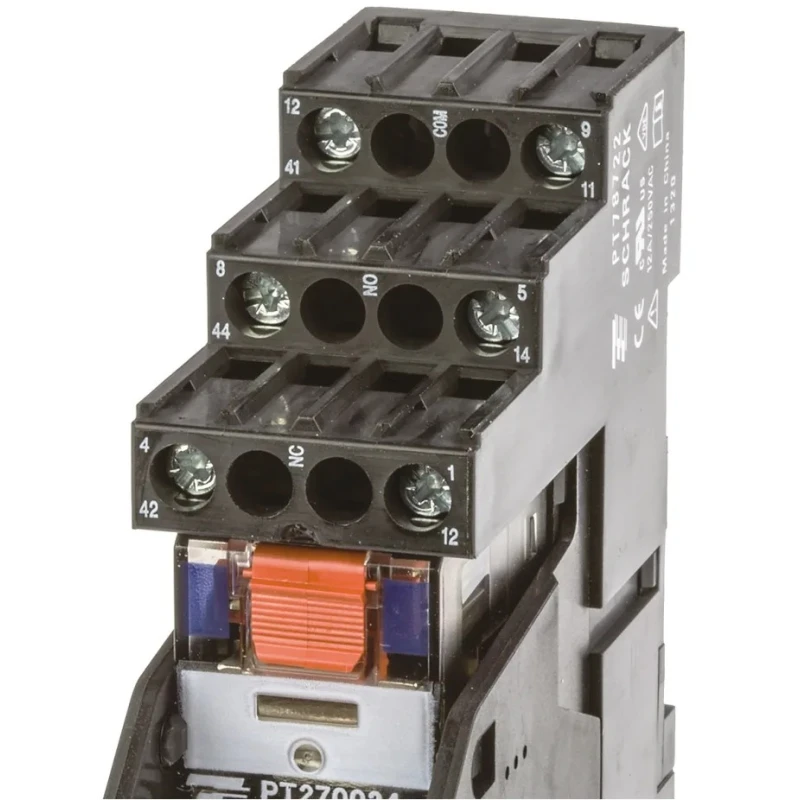

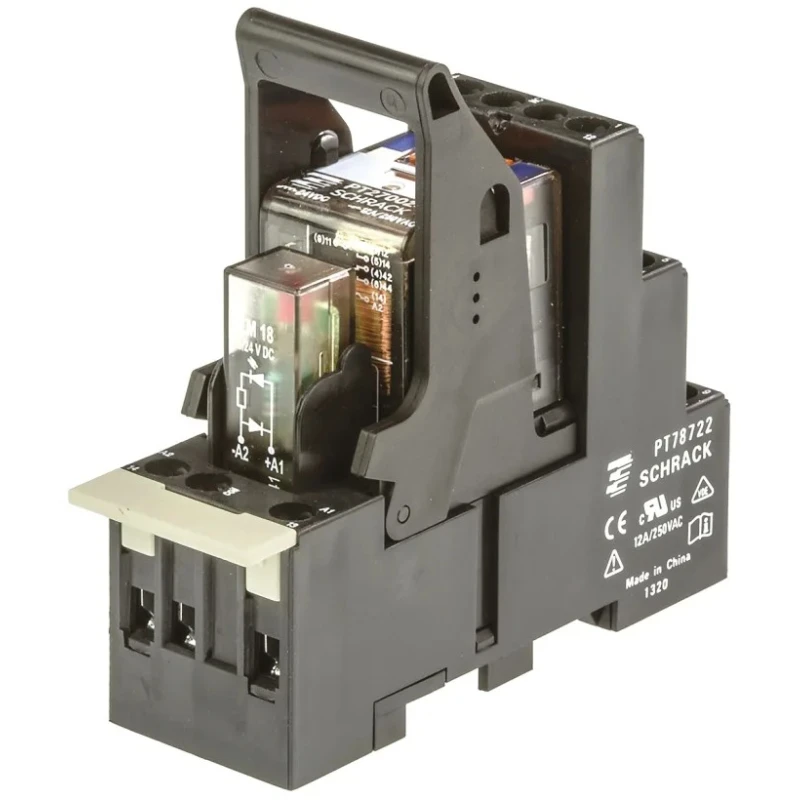

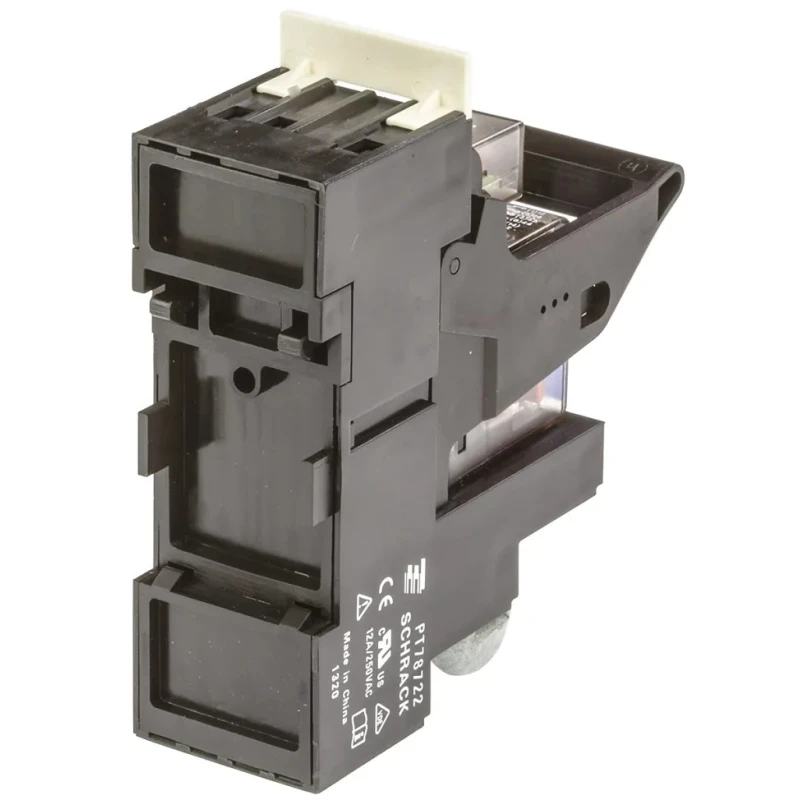

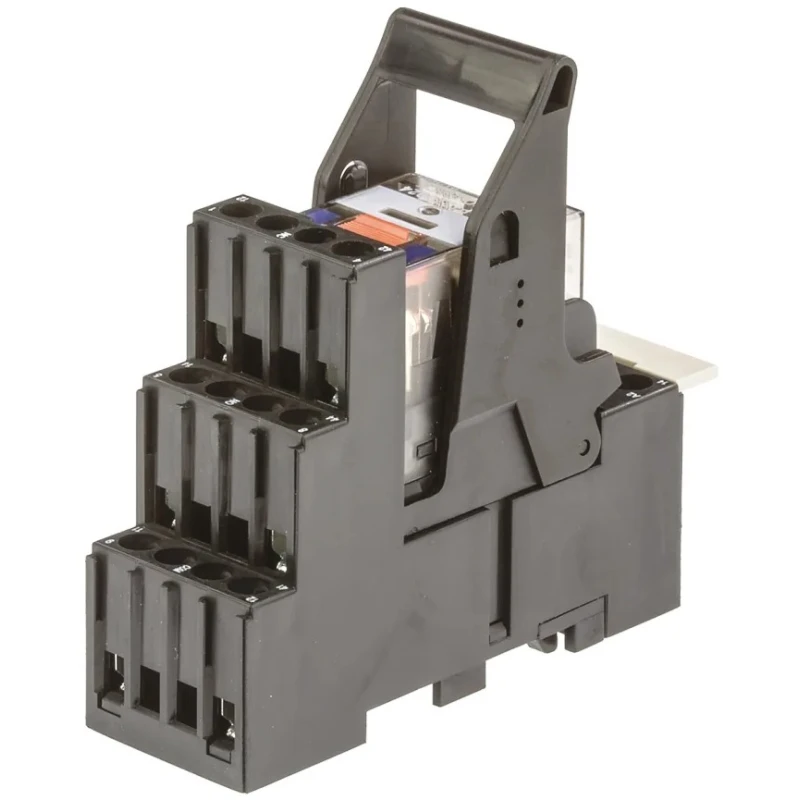

TE Connectivity DIN Rail Power Relay 24V dc Coil 12A Switching Current DPDT PT2L7LC4 8-1415534-9
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 78.3mm |
| Length | 77mm |
| Model | PT2L7LC4 8-1415534-9 |
| Width | 27.2mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Nickel Alloy |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Screw |
| Standards/Approvals | IEC, RoHS, UL, VDE |
| Coil Resistance | 777Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 741mW |
Key Features
- Designed for DIN Rail mounting, facilitating easy installation and maintenance.
- Equipped with a coil resistance of 777Ω, ensuring efficient operation.
- Supports switching AC voltage up to 400V ac and switching power of 3kVA.
- Constructed with silver nickel alloy contact material for durability and reliability.
- Operates within a temperature range from -40°C to 70°C for varied environments.
- Includes mechanical and electrical indicators with manual test tab for convenient status monitoring.
- Complies with IEC 61810-1 standards and approvals including IEC, RoHS, UL, and VDE.
- Compact dimensions of 78.3mm height, 77mm length, and 27.2mm width optimize panel space.
Product Description
TE Connectivity PT2L7LC4 8-1415534-9 DIN Rail Power Relay is engineered for reliable electrical control in industrial, automation, and electrical enclosure applications. Featuring a 24V dc coil and a 12A switching current with DPDT contact configuration, this relay supports varied and demanding operational requirements.
Its design for DIN Rail mounting simplifies installation and integrates seamlessly into control panels. The relay includes a coil resistance of 777Ω and operates efficiently with a coil power of 741mW. It can handle switching AC voltages up to 400V ac and switching power up to 3kVA, making it suitable for robust power applications.
Constructed with silver nickel alloy contacts, the relay ensures durability and superior conductivity. It operates reliably across a broad temperature range from -40°C to 70°C, supporting diverse environmental conditions typical in industrial settings.
The relay package includes mechanical and electrical indicators with a manual test tab, allowing convenient status checking and testing. Compliance with IEC 61810-1 and certifications from IEC, RoHS, UL, and VDE guarantee quality and safety standards adherence.
With compact dimensions (78.3mm height, 77mm length, and 27.2mm width), this relay optimizes panel space without compromising performance. Its coil and contact design offers efficient control for automation, HVAC, manufacturing, and electrical distribution systems.
Designed for DIN Rail mounting, facilitating easy installation and maintenance. Equipped with a coil resistance of 777Ω, ensuring efficient operation. Supports switching AC voltage up to 400V ac and switching power of 3kVA.
Constructed with silver nickel alloy contact material for durability and reliability. Operates within a temperature range from -40°C to 70°C for varied environments. Includes mechanical and electrical indicators with manual test tab for convenient status monitoring.
Complies with IEC 61810-1 standards and approvals including IEC, RoHS, UL, and VDE. Compact dimensions of 78.3mm height, 77mm length, and 27.2mm width optimize panel space. Coil power consumption is low at 741mW, enhancing energy efficiency.
This power relay is ideal for applications in industrial automation, electrical control panels, HVAC systems, manufacturing processes, and other commercial or industrial use cases requiring reliable switching capabilities.
Discover more Power Relays by TE Connectivity and explore related categories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 12A.
This power relay operates with a coil voltage of 24V dc.
The relay has dimensions of 78.3mm in height, 77mm in length, and 27.2mm in width.
It operates within a temperature range from -40°C to 70°C.
This model features a DPDT (Double Pole Double Throw) contact configuration.
The coil resistance is 777Ω.
It can switch AC voltages up to 400V ac.
The contacts are constructed from silver nickel alloy.
This relay is designed for DIN Rail mounting, facilitating easy installation.
It complies with IEC 61810-1 standards and has approvals including IEC, RoHS, UL, and VDE.
The coil power consumption is low at 741mW, enhancing energy efficiency.
Yes, it includes mechanical and electrical indicators with a manual test tab for convenient status monitoring.
