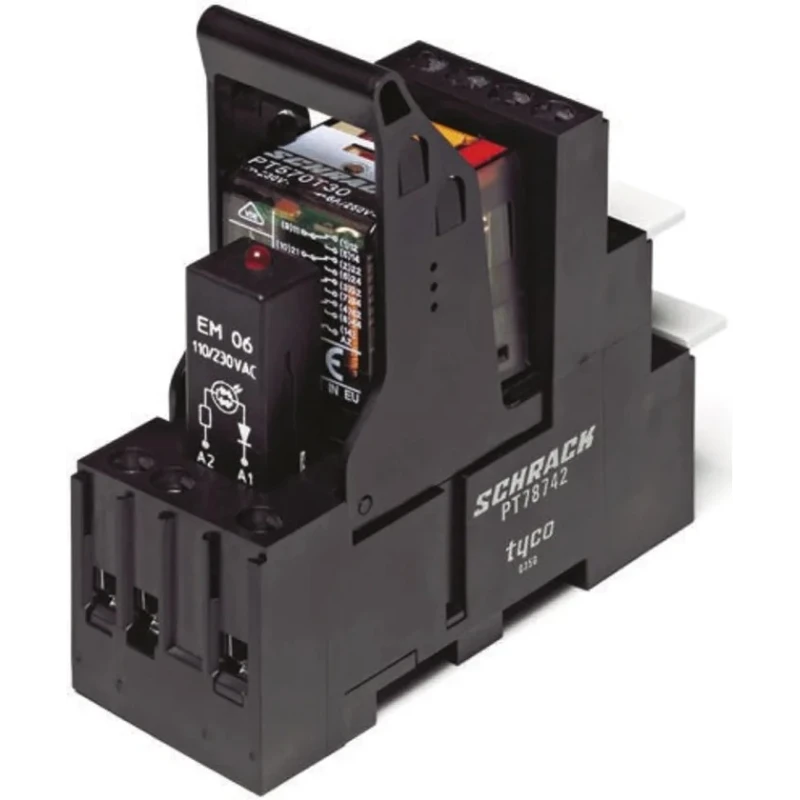

TE Connectivity DIN Rail Power Relay 12V DC Coil 6A Switching Current 4PDT PT5L7LB2 1415535-7

TE Connectivity PT5L7LB2 1415535-7 DIN Rail Power Relay features a 12V DC coil delivering a switching current of 6A and offers a reliable 4PDT contact configuration. This relay is suitable for industrial, electrical automation, and control applications requiring robust and compact power relays with precise switching capabilities.

The relay's silver nickel alloy contacts ensure excellent conductivity and long service life. Designed for DIN rail mounting, it enables easy integration into electrical enclosures and control panels. With a coil resistance of 192 ohms and coil power of 750mW, it operates efficiently with minimal energy loss.

Operational temperature range from -40°C to 70°C assures stable performance in varied climate conditions. It is capable of switching AC voltages up to 240V and handles switching power up to 1.5 kVA, making it ideal for moderate industrial electrical loads.

The unit includes screw terminals for secure electrical connections and features mechanical and electrical indicators including manual test tabs. DC versions are equipped with LED and protection diode modules while AC versions include LEDs and varistor modules. The DIN socket supports logical control and load terminal arrangements, facilitating easier wiring through a second A2 terminal loop.

This relay complies with major international standards IEC 61810-1, RoHS, VDE, and UL, ensuring high quality and safety certifications essential for industrial deployments. Features a 4PDT contact configuration for versatile switching operations.

Mounted on DIN rail for easy installation in electrical panels. Incorporates a silver nickel alloy contact material ensuring high conductivity and durability. Coil resistance is 192 ohms with a coil power rating of 750mW.

Operates within a temperature range of -40°C to 70°C for reliable performance. Switching AC voltage capability up to 240V AC and switching power of 1.5 kVA. Includes screw terminal type for secure electrical connections.

Complies with IEC, RoHS, VDE, and UL standards for assured safety and quality. Dimensions of 77 mm length, 78.3 mm height, and 27.2 mm width facilitate compact mounting.

This power relay is widely used across electrical automation, manufacturing control systems, HVAC controls, and commercial industrial setups. For more industrial relays and components, explore the Power Relay category at EnvMart.
