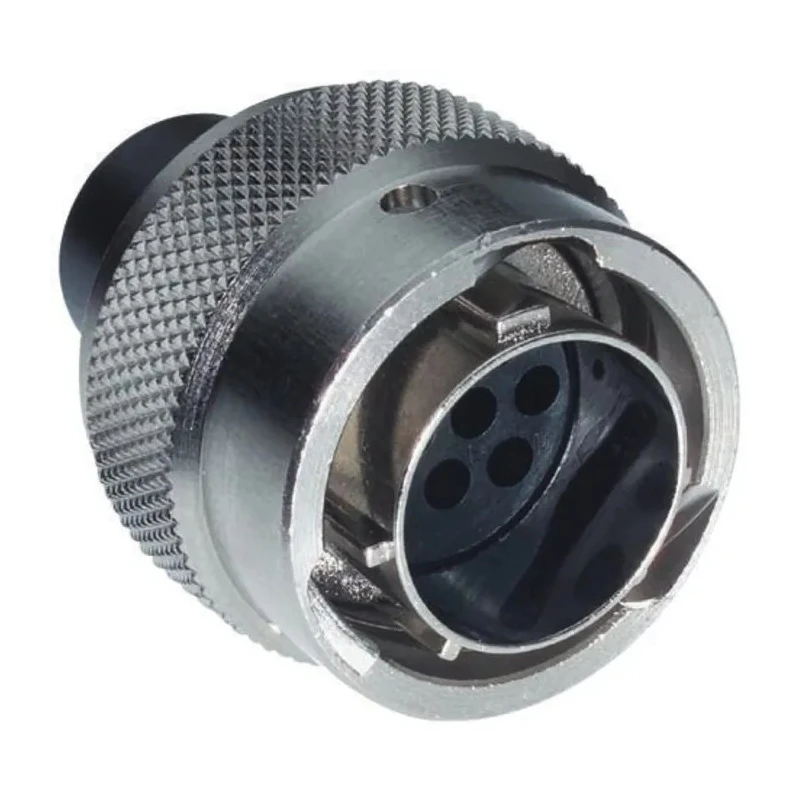

Souriau Sunbank by Eaton UTO Straight 6-Way Cable MIL Spec Circular Connector Male, Shell Size 10 UT0W6106PH
Specifications
| Country of Origin | France |
|---|---|
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Model | UT0W6106PH |
| Mount Type | Cable |
| Housing Material | Aluminium Zinc Alloy |
| Series | UTO |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Nickel |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shell Size | 10 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Shell Plating | Nickel |
| Souriau Circular Connector, 6 Contacts, Cable Mount, Plug, MaleBrand | Souriau |
Key Features
- The connector features 6 male contacts for secure electrical transmission.
- It is constructed from aluminium zinc alloy housing with nickel plating for enhanced durability and corrosion resistance.
- Designed with a bayonet mating type, ensuring reliable and quick connections.
- Suitable for temperatures ranging from -40°C to 105°C, allowing operation in harsh environments.
- The cable mount type allows for straightforward integration into various industrial cable assemblies.
- The connector is sealed IP68 for protection against dust and water ingress.
- High-density contact size offers efficient connection in a compact shell size 10 footprint.
- Designed for 500 mating cycles with a 5-pin guiding system to ensure precise alignment.
Product Description
Souriau Sunbank by Eaton UT0W6106PH is a straight 6-way cable MIL Spec circular connector designed to meet MIL-DTL-26482 military standards. This male plug connector features six male contacts housed in a shell size 10 aluminium zinc alloy case with nickel plating for corrosion resistance and durability. It employs a bayonet mating mechanism and is cable-mounted with a crimp termination type.
The connector operates reliably in harsh environments with temperature tolerances from -40°C to 105°C. Its sealed cylindrical metal design is rated IP68, making it resistant to dust, water, and other contaminants, which is critical for use in industrial, defense, aerospace, and demanding electronic system installations.
High-density contact size enables efficient usage in space-constrained designs while maintaining robust electrical performance. The metal casing and bayonet locking ring ensure secure connections and provide up to 500 mating cycles. Its 5-pin guiding system guarantees proper insertion, reducing insertion errors and potential damage.
This Souriau circular connector is interchangeable with series TRIM, TRIO, and UTP, offering flexibility for system integrators. It is ideal for wiring harnesses requiring rugged, reliable cable connectors compliant with stringent military specifications.
The connector has 6 male contacts designed for reliable electrical connections in high-demand environments. The shell size 10 aluminium zinc alloy housing with nickel plating ensures robust mechanical and environmental protection.
The bayonet mount type allows quick and secure mating and demating operations. The connector is sealed to IP68 standards for ingress protection, suitable for harsh industrial and military applications. Operational temperature range is -40°C to 105°C, supporting diverse environmental conditions.
Termination type is crimp, facilitating dependable cable connections. The product is made in France, assuring quality and adherence to manufacturing standards.
This product is cataloged under Mil Spec Circular Connector category, providing a rugged, high-quality solution for electronic and power connector applications in industrial, military, aerospace, and transportation sectors. Discover more connectors and cable assemblies in the same category at EnvMart to support your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
