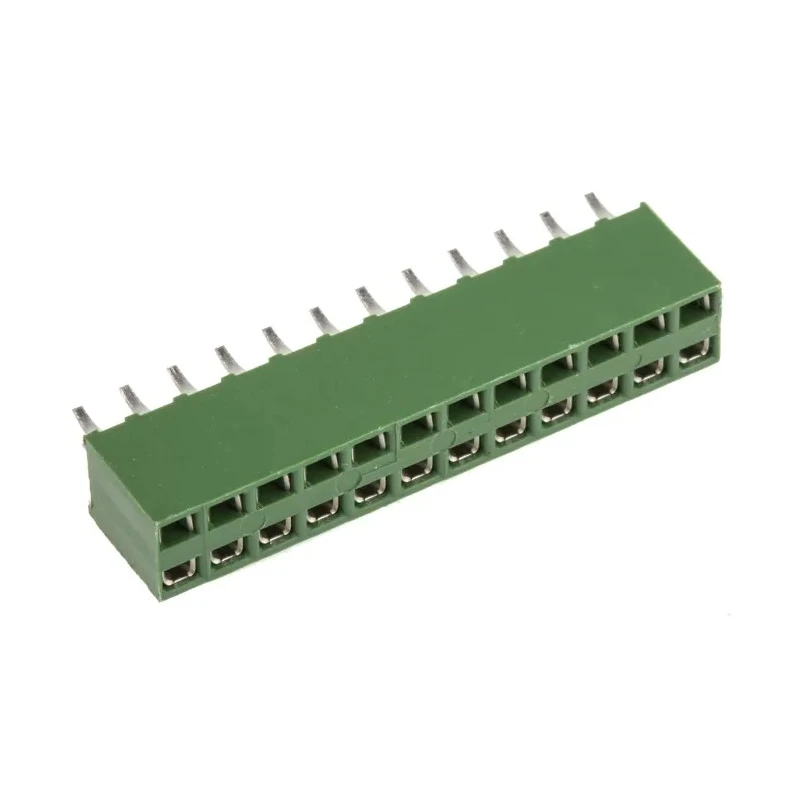

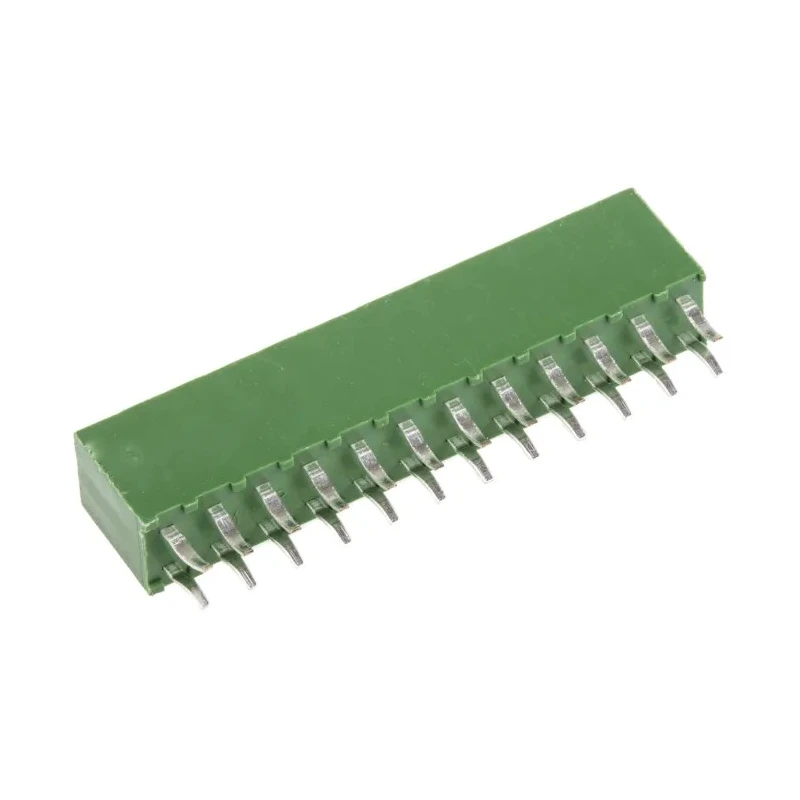

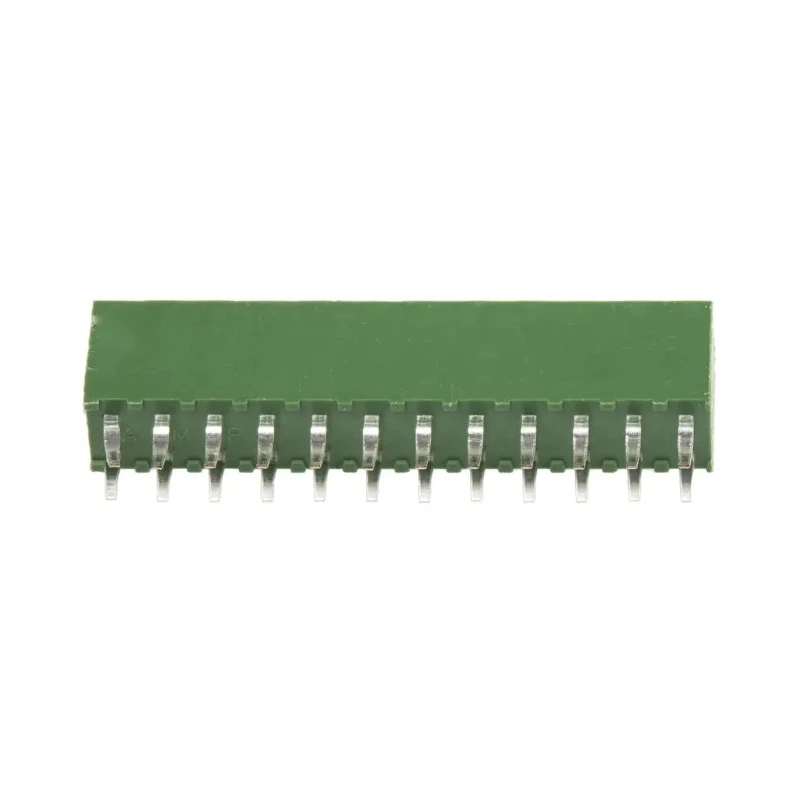

TE Connectivity AMPMODU HV100 Series Straight Through Hole PCB Socket, 24-Contact, 2 Row, 2.54 mm Pitch Solder HV100
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Model | HV100 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Bronze |
| Series | AMPMODU HV100 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 24 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Designed for through-hole mounting with kinked solder legs for secure PCB retention.
- Constructed with polybutylene terephthalate housing offering UL 94V-0 flame retardant properties.
- Supports board-to-board connector system with female bronze contacts plated with tin.
- Operates reliably in temperature range from -40°C to 105°C.
- Available with different stacking heights for flexible application integration.
- Compliant with RoHS standards ensuring environmentally friendly materials.
- Suitable for industrial, electronic, and board assembly applications.
Product Description
TE Connectivity HV100 series PCB Socket model HV100 is a robust board-to-board connector designed for optimal performance and reliable solder retention. Featuring 24 female contacts arranged in 2 rows with a 2.54 mm pitch, this through-hole socket offers compatibility with a wide range of electronic assemblies and industrial applications.
The housing is constructed from polybutylene terephthalate, which meets UL 94V-0 flame retardant standards ensuring durability and safety in harsh environments. The connector is designed with kinked solder legs that enhance mechanical retention on the PCB during manufacturing.
This PCB socket supports current up to 12A and is rated for operating temperatures ranging from -40°C to 105°C, making it suitable for temperature-critical applications. The bronze contacts are plated with tin, providing excellent electrical conductivity and corrosion resistance.
The AMPMODU HV100 series includes options with mounting heights of 7 mm and 8.5 mm to accommodate stacking applications in compact electronic devices. The product fully complies with RoHS environmental directives supporting sustainable manufacturing practices.
Through-hole mount design with kinked solder legs for secure PCB retention. Polybutylene terephthalate housing with UL 94V-0 flame retardant rating. 24 female bronze contacts plated with tin ensure excellent electrical performance.
Rated for 12A current carrying capacity at operating temperatures -40°C to 105°C. Supports board-to-board connection with 2 row, 2.54 mm pitch configuration. Available heights of 7 mm and 8.5 mm for stacking and layout flexibility.
RoHS compliant for environmental safety and regulatory adherence.
This TE Connectivity PCB socket is ideal for industrial electronics manufacturing, laboratory devices, telecommunications equipment, and embedded systems requiring reliable electrical connections with high mechanical stability.
Browse EnvMart for more TE Connectivity connectors and electronic components compatible with your system requirements.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket is rated for a maximum current of 12A.
It operates reliably in a temperature range from -40°C to 105°C.
The socket features 24 female contacts arranged in 2 rows.
This model uses a through-hole mounting design with kinked solder legs for secure PCB retention.
The housing is made from polybutylene terephthalate, and the contacts are bronze plated with tin.
Yes, it is RoHS compliant, ensuring it meets environmental safety regulations.
The contacts are arranged with a pitch of 2.54 mm.
This model is available with stacking heights of 7 mm and 8.5 mm.
It supports a board-to-board connector system.
The orientation of this socket is straight.
It is suitable for industrial electronics manufacturing, laboratory devices, telecommunications equipment, and embedded systems.
The housing material meets UL 94V-0 flame retardant standards.
