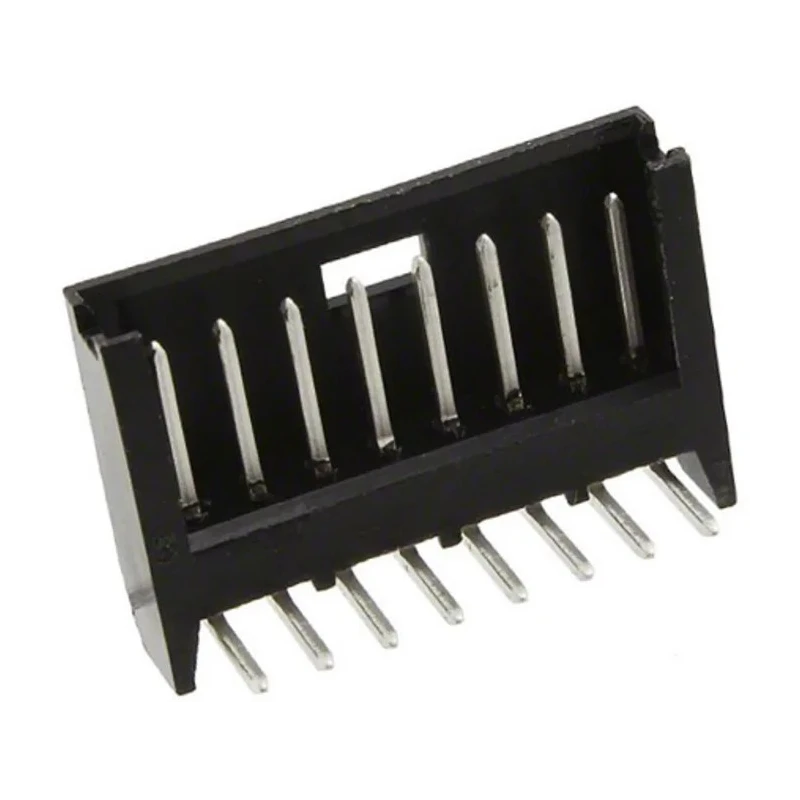

TE Connectivity AMPMODU MOD II Series Right Angle Through Hole PCB Header, 8 Contacts, 2.54 mm Pitch, 1 Row 280380-1

TE Connectivity 280380-1 AMPMODU MOD II Series Right Angle Through Hole PCB Header is designed for robust and reliable electronic interconnect applications. Featuring 8 contacts arranged in a single row with a 2.54 mm pitch, this shrouded header ensures enhanced protection and secure mating for board-to-board and wire-to-board connections.

The thermoplastic housing is polarized and shrouded on three sides, minimizing the risk of misalignment and physical damage to the pins. The positive locking detent mechanism provides firm retention against vibration and mechanical stresses commonly encountered in automotive control systems, industrial machinery, telecommunications devices, medical instruments, storage equipment, and consumer appliances.

Contacts are made of phosphor bronze with tin plating, offering excellent conductivity and durability. Rated for 3 amps current and 750 volts voltage, it supports reliable electrical performance in demanding environments. Operating temperature range extends from -65°C to 105°C, making this connector suitable for harsh industrial and environmental conditions.

The header’s through-hole mounting and tail pin length of 3.5 mm facilitate strong solder joints for long-term stability and connectivity. Shrouded design protects pins from mechanical damage and contamination. Polarized housing prevents incorrect connector mating, reducing rework.

Detent locking secures connections in high-vibration environments. Thermoplastic housing withstands industrial temperature extremes. Phosphor bronze with tin plating ensures reliable conductivity and corrosion resistance.

Rated for 3A current and 750V voltage, suitable for demanding electrical applications. Wide operating temperature range from -65°C to 105°C. Through-hole mount type optimizes PCB mechanical and electrical strength. Uses AMPMODU Mod II interconnect standards for automation and control systems.

Ideal for automotive, industrial, telecommunications, and medical equipment implementations.

This product is part of the TE Connectivity family of AMPMODU Mod II 2.54 mm shrouded PCB headers, known for their compact design and reliable interconnect solutions. Designed to meet industrial and commercial electrical connection needs, it enhances assembly production efficiency and long-term operational reliability.
