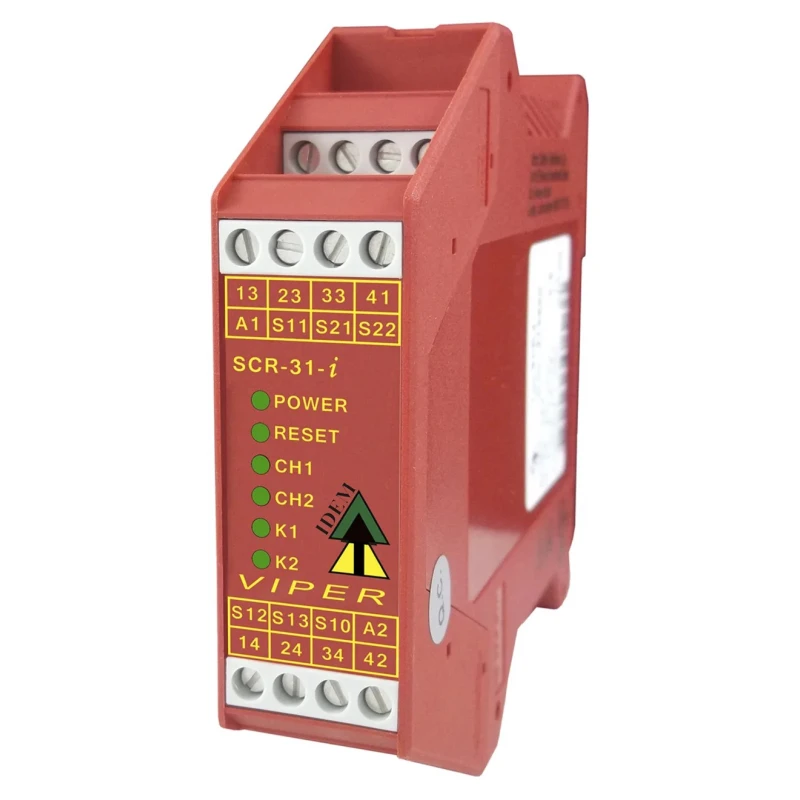

IDEM SCR-31-i Screw Terminals 24V ac/dc Safety Relay with 3 Safety Contacts and 1 NO/3 NC Contact Configuration 280002

Free Delivery in India | Lowest Global Shipping Charges

IDEM SCR-31-i Screw Terminals 24V ac/dc Safety Relay with 3 Safety Contacts and 1 NO/3 NC Contact Configuration 280002

Name: IDEM SCR-31-i Screw Terminals 24V ac/dc Safety Relay with 3 Safety Contacts and 1 NO/3 NC Contact Configuration 280002
Brand: IDEM
SKU: 191895
Price: 231.35 USD
Availability: InStock



Category Safety Relay Brand IDEM Condition New

Specifications

Country of Origin	United Kingdom
Power Consumption	2W
Brand	IDEM
Height	99mm
Length	22.5mm
Model	280002
Width	114mm
Mount Type	DIN Rail
Series	SCR-31-i Screw Terminals
Maximum Operating Temperature	55°C
Contact Configuration	1 NO/3 NC
Minimum Operating Temperature	-20°C
Safety Category	CAT 4
Terminal type	Screw
Standards/Approvals	EN60204-1, EN62061, EN/ISO13849-2, UL508, EN/ISO12100, EN/ISO13849-1
Reset Method	Automatic & Manual
Coil Voltage	24V ac/dc
Switching DC Voltage	24V dc
Switching AC Voltage	250V ac
Contact Current	6A
Safety Contacts	3
Number of Auxiliary Contacts	1
Omron G9SA, 24V ac/dc Safety Relay, 3 Safety Contacts, 1Brand	Omron
Pilz PNOZ X3, 24V ac/dc Safety Relay, 3 Safety Contacts, 1Brand	Pilz

Key Features

The relay includes 3 safety contacts and a 1 NO/3 NC contact configuration for versatile control.
Equipped with both automatic and manual reset methods for flexible operation.

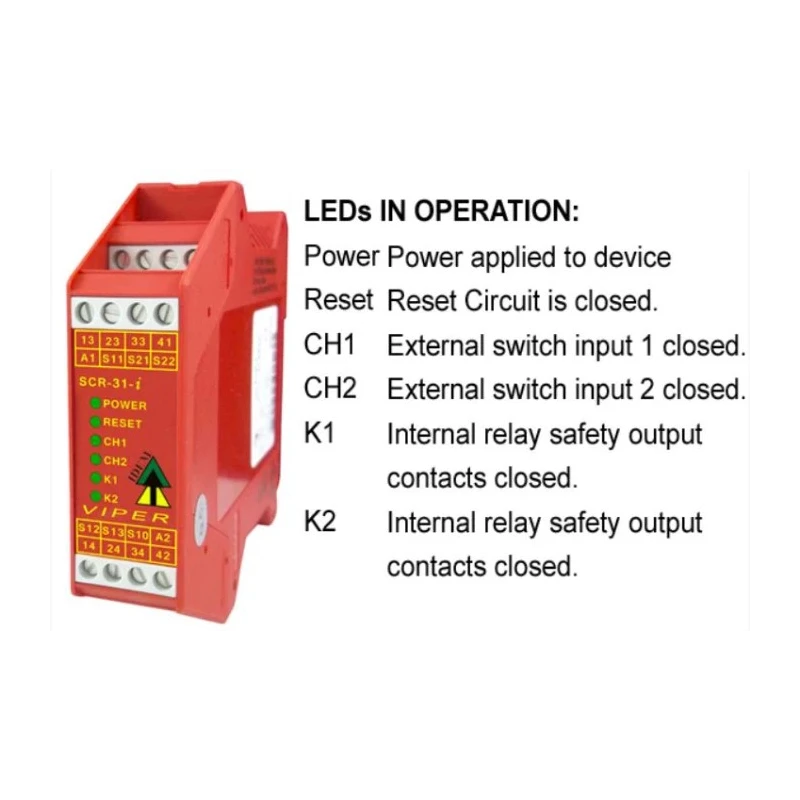

Features LED diagnostics for early fault detection and easy maintenance.
Power consumption is low at 2W, ensuring energy-efficient performance.
Designed with DIN rail mounting for convenient installation in industrial panels.
Meets stringent safety standards including EN60204-1 and UL508 with Safety Category CAT 4.
Compact dimensions of 22.5mm length, 114mm width, and 99mm height optimize panel space.
Suitable for operating temperatures from -20°C to 55°C, supporting industrial environments.

Product Description

IDEM 280002 SCR-31-i Safety Relay with screw terminals is designed for industrial automation safety applications requiring high reliability and compliance to international safety standards. Operating on 24V ac/dc coil voltage, this safety relay features 3 safety contacts and a contact configuration of 1 normally open and 3 normally closed contacts, enabling comprehensive safety control circuits.

The relay includes internal force guided relays and advanced LED diagnostic indicators, which simplify wiring and provide clear status feedback. This allows early detection of faults to maintain the safety function even in the presence of a single fault.

The device supports both automatic and manual reset methods, enhancing operational flexibility across various safety scenarios. Its compact size (22.5mm x 114mm x 99mm) and DIN rail mount make it straightforward to install in control panels.

Certified to meet safety standards such as EN60204-1, EN62061, EN/ISO13849-2, UL508, and EN/ISO13849-1, and classified under safety category CAT 4, the SCR-31-i supports applications requiring safety integrity levels up to SIL CL 3 and performance level PLe.

The relay outputs 3 normally closed contacts and 1 normally open contact, essential for emergency stop functions. LED indicators provide visual feedback for diagnostics and operational status. The feedback circuit feature enables monitoring of external contacts to ensure safety integrity.

Designed and manufactured in the United Kingdom for high-quality assurance.

Typical industrial and commercial uses include integration into safety interlock switches, machine stop circuits, and safety controller systems. The SCR-31-i is suitable for automation, manufacturing, electrical and control panels where reliable safety relay operation is critical.
