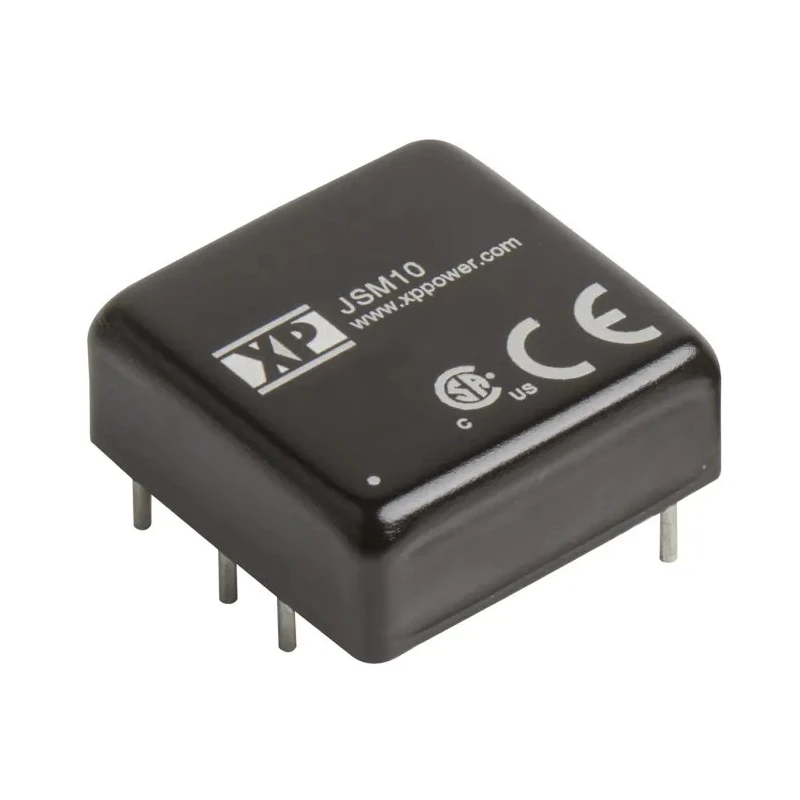

XP Power Isolated DC-DC Converter 3.3V DC Output 2.5A 18-36V Input 10W Through Hole JSM10
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | XP Power |
| Efficiency | 88% |
| Length | 25.4mm |
| Model | JSM10 |
| Depth | 10.16mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JSM10 |
| Maximum Operating Temperature | 100°C |
| Package Type | 1 x 1 in |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 6 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 2.5A |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Provides isolated 10W DC-DC conversion with 3.3V output voltage.
- Accepts wide input voltage range of 18V minimum to 36V maximum.
- Supports continuous output current up to 2.5A.
- Compact 1 x 1 inch package with through hole mount type.
- Offers 1500V DC isolation for safety and noise reduction.
- Operates efficiently with 88% efficiency rating.
- Rated for wide operating temperature from -40°C to 100°C.
- Equipped with 6 pins to accommodate connections.
Product Description
XP Power JSM10 is a series of isolated DC-DC converters designed for regulated single output applications delivering 10W power. The JSM10 model specifically provides 3.3V DC output at 2.5A current and supports a wide DC input range from 18V to 36V, making it versatile for various electronic systems.
Featuring a compact 1 x 1 inch package with 6-pin through hole mounting, the converter offers outstanding isolation of 1500 VDC ensuring safe operation and noise immunity in sensitive applications. Its robust design allows operation over a broad temperature range of -40 °C to 100 °C, suitable for demanding industrial environments.
With an efficiency of 88%, this device minimizes power loss while maintaining stable output performance. The JSM10 series meets multiple ITE safety approvals, ensuring compliance with industry standards.
This DC-DC converter is widely used in industrial control systems, laboratory instrumentation, telecom equipment, and embedded power supplies. The small form factor facilitates integration into space-constrained layouts, while the through hole mount ensures secure installation.
Isolated 10W power DC-DC conversion with regulated and stable output voltage. Wide input voltage range of 18V to 36V enables compatibility with various power sources. High isolation voltage of 1500 VDC enhances operational safety.
Compact and durable 1 x 1 inch package designed for through hole PCB mounting. Wide operating temperature range for reliable performance in harsh environments. Efficient conversion with 88% efficiency reduces heat generation and energy waste.
Compliance with ITE safety approvals ensures product reliability and safety. 6-pin configuration simplifies electrical connections and integration.
Set’s applications include electronic power supplies for industrial, laboratory, communication, and embedded systems sectors requiring isolated, regulated DC output within tight space constraints. XP Power JSM10 series delivers robust, efficient, and safe power conversion solutions.
Explore more electronics components and DC/DC Converters in EnvMart’s extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a 3.3V DC output with a maximum output current of 2.5A.
It accepts a wide input voltage range from 18V to 36V DC.
The maximum output power rating of this converter is 10W.
The dimensions of this unit are 25.4mm in length, 25.4mm in width, and 10.16mm in depth.
It features a through hole mount type for secure installation.
This model operates with an efficiency rating of 88%.
It offers an isolation voltage of 1500V DC, enhancing operational safety.
The operating temperature range is from -40°C to 100°C.
This model has a single output.
It is equipped with 6 pins to accommodate connections.
It is widely used in industrial control systems, laboratory instrumentation, telecom equipment, and embedded power supplies.
The country of origin for this model is Taiwan.
