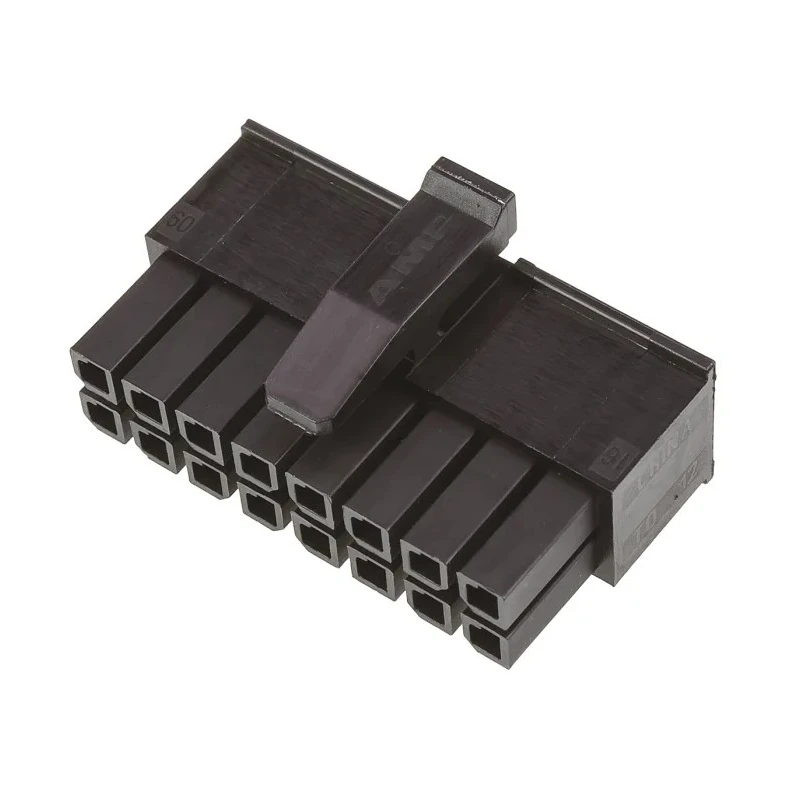

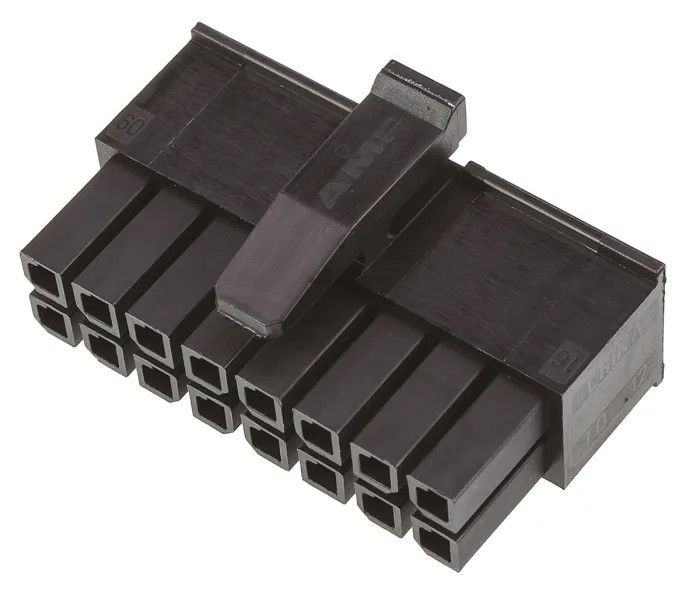

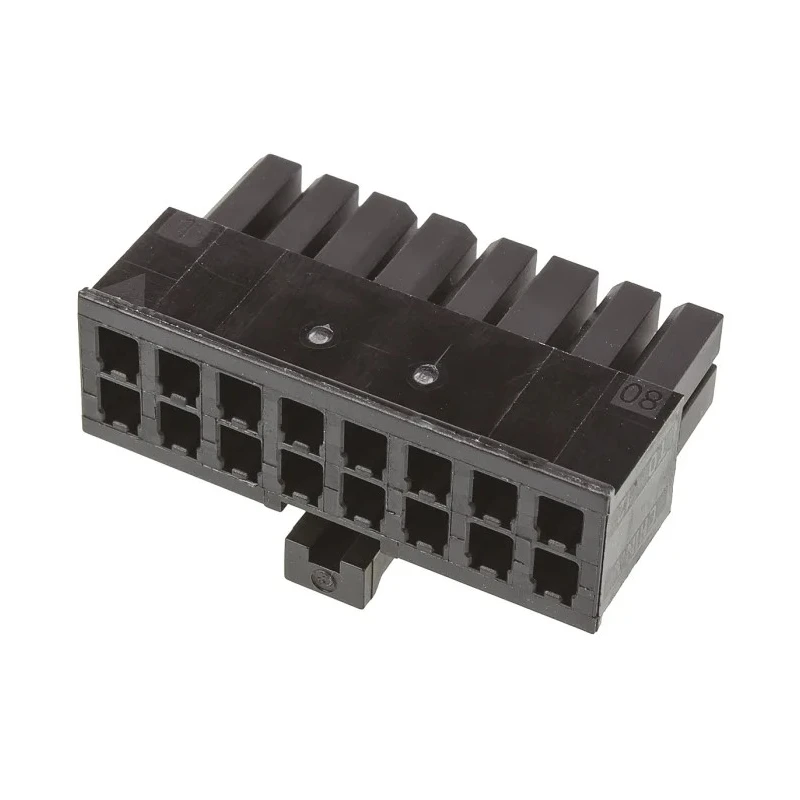

TE Connectivity Micro MATE-N-LOK Female Connector Housing 3 mm Pitch 16 Way 2 Row Straight 1-794617-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 25mm |
| Width | 11.7mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Micro MATE-N-LOK |
| Number of Rows | 2 |
| Pitch | 3mm |
| For Use With | Centerline Soft Shell Pin & Socket Connector |
| Number of Contacts | 16 |
| Connector Gender | Female |
Key Features
- Constructed from durable black nylon housing material designed for sustained performance.
- Features polarization to prevent mis-mating and a positive locking latch for secure connections.
- Compatible for use with centerline soft shell pin and socket connectors.
- Measures 25 mm in length and 11.7 mm in width for compact cable mounting.
- Designed for applications in household appliances, factory automation, data storage and lighting industries.
- The Micro MATE-N-LOK series is rated 94V-0 offering robust electrical insulation.
- The connector provides a reliable straight orientation suitable for cable mounting use cases.
- This model has a series designation of Micro MATE-N-LOK supporting wire-to-wire connection systems.
Product Description
TE Connectivity 1-794617-6 Micro MATE-N-LOK female connector housing is designed for superior electrical connections with a 3 mm pitch and a 16 way, 2 row straight cable mount configuration. It features a black nylon construction rated at 94V-0 for high insulation and durability in demanding industrial and commercial environments.
These connectors include polarization features that prevent mismating during assembly and a positive locking latch mechanism that ensures secure mating to corresponding male connectors. The female housing is compatible with centerline soft shell pin and socket connectors, providing versatile wire-to-wire connectivity.
Compact dimensions of 25 mm length and 11.7 mm width make it suitable for tight spaces in electronic equipment, household appliances, factory automation, data storage, lighting systems, and related applications.
The Micro MATE-N-LOK product family supports a low-profile mating height and is recognized for its reliable performance in securing electrical connections within a variety of industrial and consumer system designs.
Constructed using high-quality black nylon housing material rated 94V-0 for electrical insulation and durability. 16 contact positions arranged in 2 rows with a 3 mm pitch to meet specific circuit wiring needs. Incorporates polarization and positive locking latch features to enhance connection reliability and prevent assembly errors.
Designed primarily for cable mounting with a straight orientation offering versatility in installation. Suitable for use with centerline soft shell pin and socket connectors with separate crimp socket contacts. Applicable across multiple industrial sectors including household appliances, automation, data storage, and lighting.
Compact form factor facilitates integration into space-constrained electronic assemblies and devices. Meets standard electrical and mechanical requirements for consistent connector performance.
This female Connector Housing is a critical component in the Micro MATE-N-LOK 3 mm connector system by TE Connectivity, emphasizing quality, precision, and long-term reliability for professional electronics applications.
Explore more from TE Connectivity and related connector solutions in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector housing features a 3 mm pitch and accommodates 16 contacts arranged in 2 rows.
It is constructed from black nylon, which is rated at 94V-0 for electrical insulation and durability.
The connector housing measures 25 mm in length and 11.7 mm in width, making it suitable for compact cable mounting.
This model is designed for cable mounting, providing a straight orientation for installation.
It is compatible with centerline soft shell pin and socket connectors, allowing for versatile wire-to-wire connectivity.
It includes polarization to prevent mis-mating and a positive locking latch mechanism to ensure secure connections.
This connector is suitable for applications in household appliances, factory automation, data storage, and lighting industries.
The orientation of this connector housing is straight, which is suitable for cable mounting use cases.
This model belongs to the Micro MATE-N-LOK series, designed for wire-to-wire connection systems.
The country of origin for this connector housing is India.
The housing features polarization to prevent mis-mating during assembly, enhancing connection reliability.
This connector housing is designed as a female connector.
