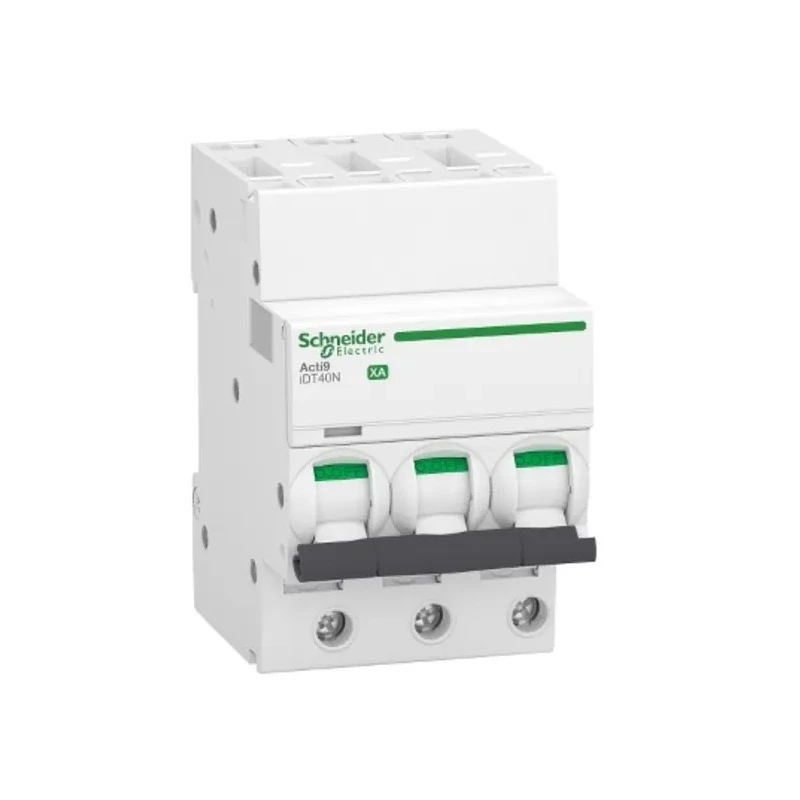

Schneider Electric Acti9 Acti9 iDT40 Miniature Circuit Breaker, 3-Pole, 25A, Type C, 400V AC, 6000A Breaking A9PA4325

Schneider Electric A9PA4325 Miniature Circuit Breaker, part of the Acti9 iDT40 series, is designed for superior electrical protection in residential, commercial, and industrial applications. Rated at 25A with 3 poles and Type C tripping characteristics, it effectively combats short circuits and overload currents in 400V AC systems.

This device incorporates thermal-magnetic trip unit technology, ensuring reliable and precise operation with a breaking capacity of 6000A. Its clip-on mounting design and screwless terminals promote easy installation and maintenance without compromising connection security.

Measuring 85mm in height, 54mm in width, and 74mm in depth, this compact unit fits efficiently in electrical panels, while its toggle switch actuator allows clear ON/OFF and trip indication control.

The circuit breaker is rated IP20, providing protection against accidental contact and solid foreign objects. It complies fully with EN/IEC 60898-1 and EN/IEC 60947-2 standards, ensuring rigorous quality and safety benchmarks. It is suitable for ambient air temperatures from -25 to 70 °C, maintaining performance under varying environmental conditions.

Additional features include a padlockable toggle switch for enhanced safety during servicing and operation. The Schneider Electric Acti9 Miniature Circuit Breaker is an ideal solution for industrial, commercial, and residential electrical protection needs, ensuring safety and continuity of operations.

Rated for 400V AC operation ensuring compatibility with various electrical systems. Features a robust breaking capacity of 6000A for reliable short-circuit protection. Clip-on mounting type facilitating easy installation and replacement.

Equipped with a screwless terminal design for secure and convenient wiring. Thermal magnetic tripping mechanism provides precise overload and short circuit protection. Compact dimensions of 85mm height, 54mm width, and 74mm depth save electrical cabinet space.

Toggle switch actuator enables straightforward manual operation and reset. IP20 rating offering basic protection against solid objects and finger protection. Complies with international standards EN/IEC 60898-1 and EN/IEC 60947-2 guaranteeing quality and safety.

Designed for ambient air temperature operation ranging from -25 to +70 °C. Padlockable feature allows additional safety during maintenance operations. Browse more Circuit Breakers and Fuses products at EnvMart for reliable electrical safety solutions.
