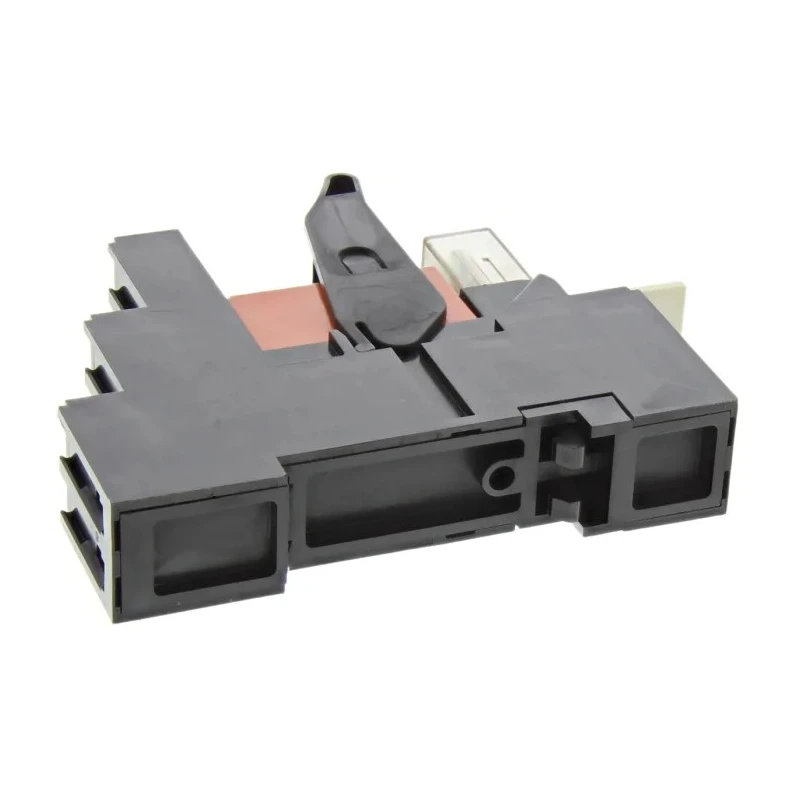

TE Connectivity RT Series Electromechanical Interface Relay DIN Rail Mount 230V ac Coil 8A DPDT RT4S4T30 3-1415073-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 69mm |
| Length | 77mm |
| Model | RT4S4T30 3-1415073-1 |
| Width | 15.8mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | RT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Switching Current | 8A |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Coil Resistance | 32500Ω |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 240V ac |
| TE Connectivity Interface Relay ModuleBrand | TE Connectivity |
Key Features
- The relay operates with a coil voltage of 230V ac and a coil resistance of 32500Ω.
- It features a double pole double throw (DPDT) contact configuration with silver alloy contacts.
- Designed for DIN Rail mounting and uses screw type terminals for easy installation.
- Supports switching current up to 8A and switching AC voltage up to 240V ac.
- Temperature operating range from -20°C to 70°C makes it suitable for varied industrial environments.
- Compact dimensions with 15.8mm width, 69mm height, and 77mm length save panel space.
- Provides reinforced insulation protection class II for safe electrical isolation.
- Applicable for industrial process control, motor control, electrical isolation, and signal matching between electronic controls.
Product Description
TE Connectivity RT4S4T30 3-1415073-1 is a high-quality Electromechanical Interface Relay designed for industrial and commercial applications requiring reliable switching and signal conditioning. This DIN Rail mount relay features a 230V ac coil with a coil resistance of 32500 ohms, providing consistent energizing performance in control panels.
The DPDT (Double Pole Double Throw) configuration allows complex switching operations within compact electrical cabinets. The contacts are constructed from durable silver alloy material ensuring excellent conductivity and longevity. The relay supports switching currents up to 8A and can operate safely at AC voltages up to 240V.
With an operating temperature range from -20°C to 70°C, this relay is suited for various environmental conditions found in industrial process control, motor control applications, electrical isolation tasks, and signal level matching between electronic devices.
Its screw-type terminals provide secure and easy wiring, while the DIN Rail mount design assists in neat, organized panel installations, optimizing space usage. The relay module features reinforced insulation with class II protection and isolation voltage of 5000V between coil and contacts, ensuring enhanced safety and reliability.
The relay has a coil voltage of 230V ac and coil resistance of 32500Ω. DPDT contact configuration with silver alloy contacts for high conductivity. Designed for DIN Rail mounting with screw type terminals. Supports a switching current rating of 8A and switching AC voltage up to 240V ac.
Operates reliably from -20°C to 70°C for industrial environments. Compact size: 15.8mm (W) x 69mm (H) x 77mm (L) saving installation space. Reinforced insulation protection class II and isolation coil to contact voltage of 5000V for safety.
Ideal for industrial process control, motor controls, electrical isolation, and signal conditioning. Compliance with RoHS and international standards such as IEC 61810-1, IEC 60664-1, IEC 61984. Certified and approved by VDE, UL/CUL (US & Canada), BEAB, and SEMKO for trusted global use.
The TE Connectivity RT4S4T30 3-1415073-1 relay is engineered to provide reliable switching performance and protection in demanding industrial and automation systems. It is a suitable choice for those requiring durable and efficient electromechanical relays for control panel integration and signal interface applications.
Explore more quality relays and components in the Electronics & Electricals category at EnvMart for advanced industrial automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 230V AC.
It supports a maximum switching current of 8A.
This relay features a double pole double throw (DPDT) contact configuration.
The relay has compact dimensions of 15.8mm in width, 69mm in height, and 77mm in length.
It operates reliably within a temperature range from -20°C to 70°C.
It uses screw type terminals for easy installation.
The contacts are constructed from silver alloy, ensuring excellent conductivity.
Yes, it is designed for DIN Rail mounting, allowing for organized panel installations.
It can switch AC voltages up to 240V AC.
It complies with RoHS and international standards such as IEC 61810-1, IEC 60664-1, and IEC 61984, and is certified by VDE, UL/CUL, BEAB, and SEMKO.
This relay is applicable for industrial process control, motor control, electrical isolation, and signal matching between electronic controls.
The coil resistance is 32,500 ohms.
