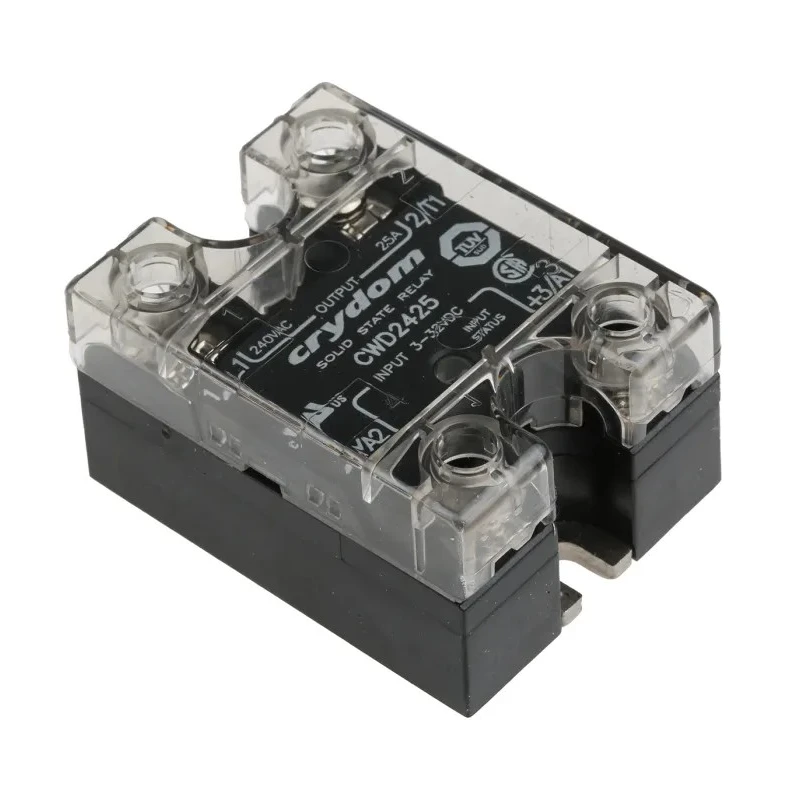

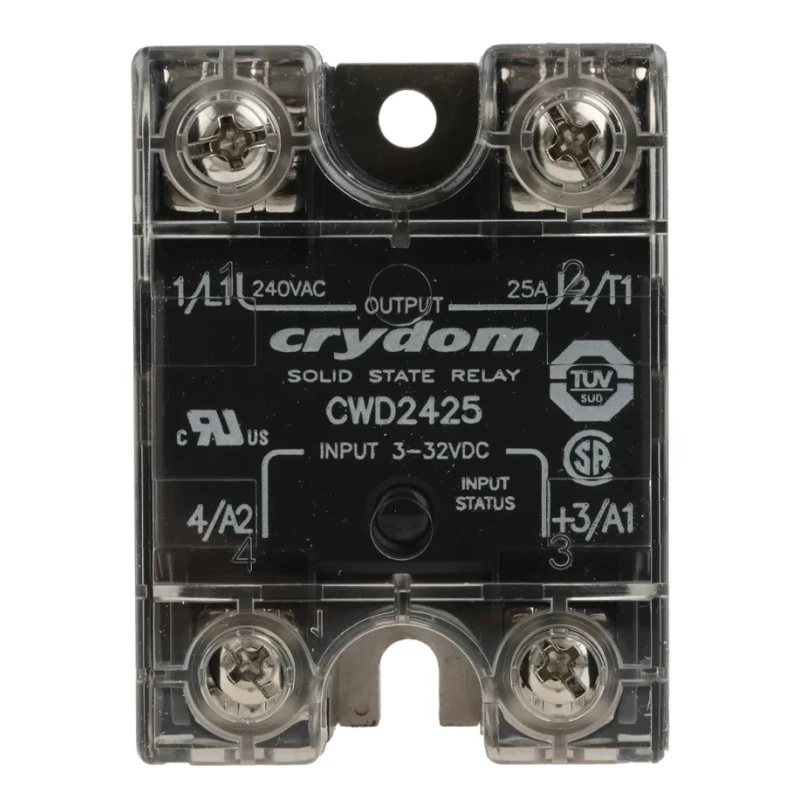

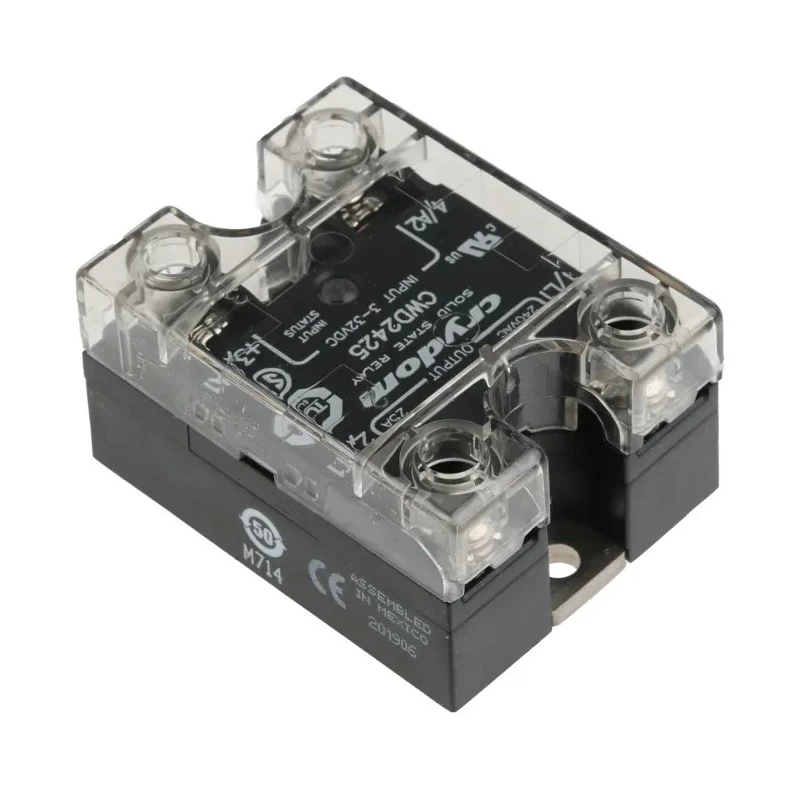

Crydom CW24 Series Solid State Relay 25A Load Panel Mount 280Vrms Load 32V Control
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 33mm |
| Length | 45.7mm |
| Model | CW24 |
| IP Rating | IP20 |
| Width | 22mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | CW24 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 25A |
| Standards/Approvals | RoHS, CE |
| Minimum Control Voltage | 3V dc |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 1mArms |
Key Features
- This solid state relay supports a maximum load current of 25 amperes for reliable switching.
- The device operates over a wide voltage range from 24 Vrms minimum to 280 Vrms maximum load voltage.
- Panel mount design with screw terminals ensures secure installation.
- Zero voltage switching function reduces electrical noise and prolongs device life.
- IP20 rating guarantees protection against touch and objects larger than 12 mm.
- Operates reliably in temperatures from -40°C to 80°C for harsh environments.
- Compact dimensions of 45.7 mm length, 33 mm height, and 22 mm width for space savings.
- SCR output type delivers fast and low-maintenance switching with no moving parts.
Product Description
Crydom CW24 Series Solid State Relay model CWD2425 is a high-performance electronic switching device designed for panel mount applications with a 25 ampere maximum load current and an operating voltage range of 24 to 280 Vrms. Its solid state design ensures silent operation with no mechanical wear, making it ideal for use in control rooms, automation, robotics, and medical instruments where reliability is critical.
The relay features a zero voltage switching function which activates at the zero crossing of the AC waveform to minimize electrical noise and extend relay life. It utilizes SCR output technology and screw terminal connections for secure and effective installation. The device is equipped with an LED indicator that provides visual status information for troubleshooting.
Built for durability, this solid state relay withstands wide temperature extremes from -40°C up to 80°C and offers IP20 protection against touch and foreign objects larger than 12 mm. Compact dimensional design (45.7 mm length, 33 mm height, 22 mm width) allows it to fit even in densely packed panels. The off-state leakage current of just 1 mArms significantly reduces power loss during non-operational periods.
Crydom CW24 relays conform to RoHS and CE standards, ensuring compliance with environmental and safety regulations. Manufactured in Mexico, they represent quality and long service life in industrial, laboratory, electronic automation, and HVAC control applications.
This solid state relay provides wear-free, silent switching for dependable long-term use. Ideal for automation control systems requiring compact, panel mount relays with high current capacity. Zero crossing switching reduces electromagnetic interference and electrical stress.
Wide operating temperature range supports use in harsh environments. IP20 rated for basic protection against accidental contact and debris ingress. Clear LED status indication for operational monitoring and fault detection.
Explore the full range of Crydom Solid State Relays and electronic control components on EnvMart for enhanced industrial and automation equipment solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 25 amperes.
This relay operates over a voltage range from 24 Vrms to 280 Vrms.
It utilizes SCR output technology, which provides fast and low-maintenance switching.
The dimensions are 45.7 mm in length, 33 mm in height, and 22 mm in width.
It operates reliably in temperatures ranging from -40°C to 80°C.
This model is designed for panel mounting and features screw terminal connections for secure installation.
The relay has an IP20 rating, providing basic protection against touch and objects larger than 12 mm.
The minimum control voltage is 3V dc, and the maximum control voltage is 32V.
Yes, it is equipped with an LED indicator that provides visual status information for troubleshooting.
It conforms to RoHS and CE standards, ensuring compliance with environmental and safety regulations.
The off-state leakage current is just 1 mArms, which significantly reduces power loss during non-operational periods.
This solid state relay is suitable for industrial, laboratory, electronic automation, and HVAC control applications.
