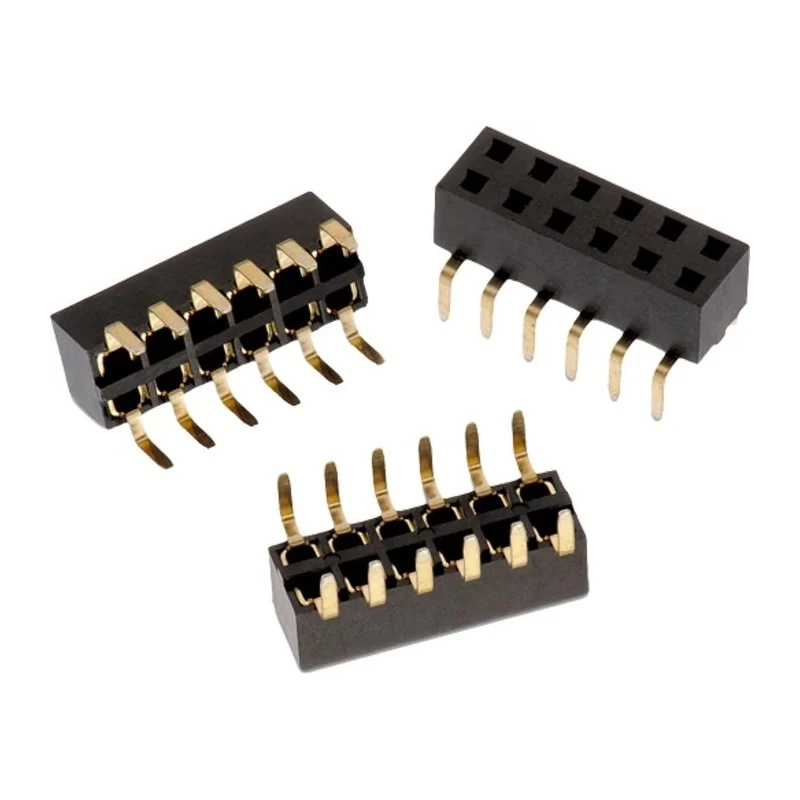

Wurth Elektronik WR-PHD Series Bottom Entry Through Hole PCB Socket, 26-Contact, 2 Row, 2.54 mm Pitch, 3A 613026216921
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | Wurth Elektronik |
| Orientation | Bottom Entry |
| Current | 3A |
| Mount Type | Through Hole |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Durability | 25mating cycles |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | PCB Socket |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Connector System | Board-to-Board |
Key Features
- Features 26 contacts arranged in 2 rows with a 2.54 mm pitch spacing.
- Supports a current rating of 3 Amperes and voltage up to 500 Volts.
- Constructed with copper alloy contacts plated in gold for reliable conductivity.
- Designed with a nylon 9T insulator and UL94 V-0 flammability rating for safety.
- Operates reliably in temperatures ranging from -40°C to +105°C.
- Durability tested to withstand 25 mating cycles, ensuring lasting performance.
- Mount type is through hole with bottom entry orientation suitable for board-to-board connections.
- Compliant with RoHS standards and UL approved (E323964) certification.
Product Description
Wurth Elektronik 613026216921 Bottom Entry Through Hole PCB Socket is a high-quality component engineered for electronic assemblies requiring dependable board-to-board connections. This socket features 26 contacts arranged in 2 rows with a precise 2.54 mm pitch, facilitating stable and efficient electrical connectivity.
The contacts are manufactured from durable copper alloy material with gold plating to enhance conductivity and corrosion resistance. The socket uses a nylon 9T insulator with a UL94 V-0 flammability rating, providing safety and reliability in various industrial environments.
It is designed for through hole mount with bottom entry orientation, suitable for assembly requiring secure mechanical and electrical connections. The socket supports operational voltages up to 500 V and current capacity of 3 A, making it suitable for numerous industrial, electronic, and manufacturing applications.
Operating temperatures range from -40°C to +105°C, ensuring performance stability even under harsh environmental conditions. Durability is assured with a rated endurance of 25 mating cycles, contributing to reduced maintenance and extended device lifespan.
26 contacts configured in 2 rows with 2.54 mm pitch. 3 A current rating and 500 V voltage rating. Copper alloy contacts with gold plating for enhanced performance. Nylon 9T insulator with UL94 V-0 flammability rating. Through hole bottom entry mount type for board-to-board connector system.
Operating temperature range from -40°C to +105°C. Durability rated for 25 mating cycles. RoHS compliant and UL approved (E323964).
This socket is widely used in electronics, industrial controls, telecommunications, automotive electronics, and manufacturing industries. It is ideal for applications requiring robust, high-performance PCB sockets with reliable contact integrity and mechanical stability.
Explore the wide range of Wurth Elektronik PCB Sockets and other electronic components on EnvMart for professional quality and trusted performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this PCB socket is 500 Volts.
This model features 26 contacts arranged in 2 rows.
It supports a current rating of 3 Amperes.
The contacts are arranged with a pitch spacing of 2.54 mm.
The contacts are made from copper alloy and are gold plated, while the insulator is nylon 9T with a UL94 V-0 flammability rating.
The operating temperature range is from -40°C to +105°C.
It is durability tested for 25 mating cycles.
This socket uses a through hole mounting type with bottom entry orientation.
Yes, it is RoHS compliant and UL approved (E323964).
The termination type for this socket is solder.
This socket is suitable for applications in electronics, industrial controls, telecommunications, automotive electronics, and manufacturing industries.
The country of origin for this product is Taiwan.
