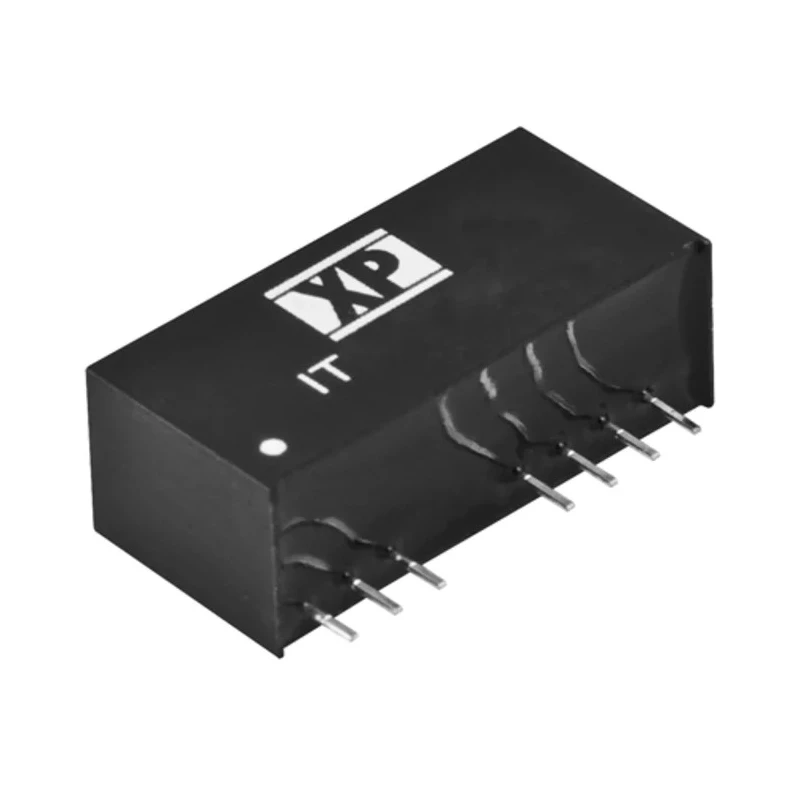

XP Power Isolated Single Output 3 W DC/DC Converter 12 V DC Output, 75 V DC Max Input IT4812SA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IT DC/DC Converter, 12V dc/ 250 mA, 75V d |
| Brand | XP Power |
| Efficiency | 85% |
| Length | 26mm |
| Model | IT4812SA |
| Depth | 12.5mm |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | IT |
| Maximum Operating Temperature | +100°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 7 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 250mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Wide 4 | 1 input range |
Key Features
- Operates with input voltage range from 18 V to 75 V DC.
- Provides a regulated, single output with 250 mA current capacity.
- Designed with a standard SIP package and through hole mount type.
- Features 1500 V DC isolation voltage for safety and reliability.
- Operating temperature range from -40 °C to +100 °C for harsh environments.
- Offers high efficiency up to 85% ensuring minimal energy loss.
- Compact dimensions of 26 mm length, 12.5 mm depth, and 9.2 mm width.
- Mean Time Between Failures (MTBF) rated at 1,100,000 hours for reliability assurance.
Product Description
XP Power IT4812SA is a highly reliable isolated DC/DC converter delivering 3 W of power with a regulated single output voltage of 12 V DC and output current of 250 mA. The device supports a wide input voltage range from 18 V up to 75 V DC and is designed to provide robust voltage conversion with excellent electrical isolation of 1500 V DC.
Encased in an industry-standard SIP package with through hole mounting, this compact converter measures 26 mm in length, 12.5 mm in depth, and 9.2 mm in width, making it suitable for dense PCB layouts. Operating efficiently up to 85%, it operates reliably within a broad temperature range from -40 °C to +100 °C, which is ideal for demanding industrial, instrumentation, and power supply applications.
The IT4812SA DC/DC converter features 7 pins and is designed for use in electronic equipment requiring regulated isolated output voltages with superior electrical safety performance. It is commonly applied in industrial machines, control systems, telecommunications equipment, and other fields where reliable power conversion is critical.
Operates over a 4:1 input voltage range for flexibility in power input. Provides galvanic isolation to ensure protection and signal integrity. Delivers stable output voltage and current for sensitive electronics. Complies with standard industrial packaging and mounting formats.
Has a high MTBF indicating long operational life and durability.
This converter is manufactured in Taiwan, Province Of China, adhering to stringent quality standards. The product's robustness and efficiency make it a dependable choice for designers and engineers focused on power conversion and distribution solutions.
Explore more high-quality DC/DC Converters and related power supply products at EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for the IT4812SA is from 18 V to 75 V DC.
It provides a regulated output voltage of 12 V DC with a maximum output current of 250 mA.
This model operates with an efficiency of up to 85%.
The converter measures 26 mm in length, 12.5 mm in depth, and 9.2 mm in width.
It features an isolation voltage of 1500 V DC, ensuring safety and reliability.
The operating temperature range is from -40 °C to +100 °C, suitable for harsh environments.
This model has a single output.
It is designed for through hole mounting and comes in a standard SIP package.
The MTBF is rated at 1,100,000 hours, indicating reliability assurance.
It is commonly applied in industrial machines, control systems, and telecommunications equipment.
The IT4812SA features 7 pins.
The maximum output power is 3 W.
